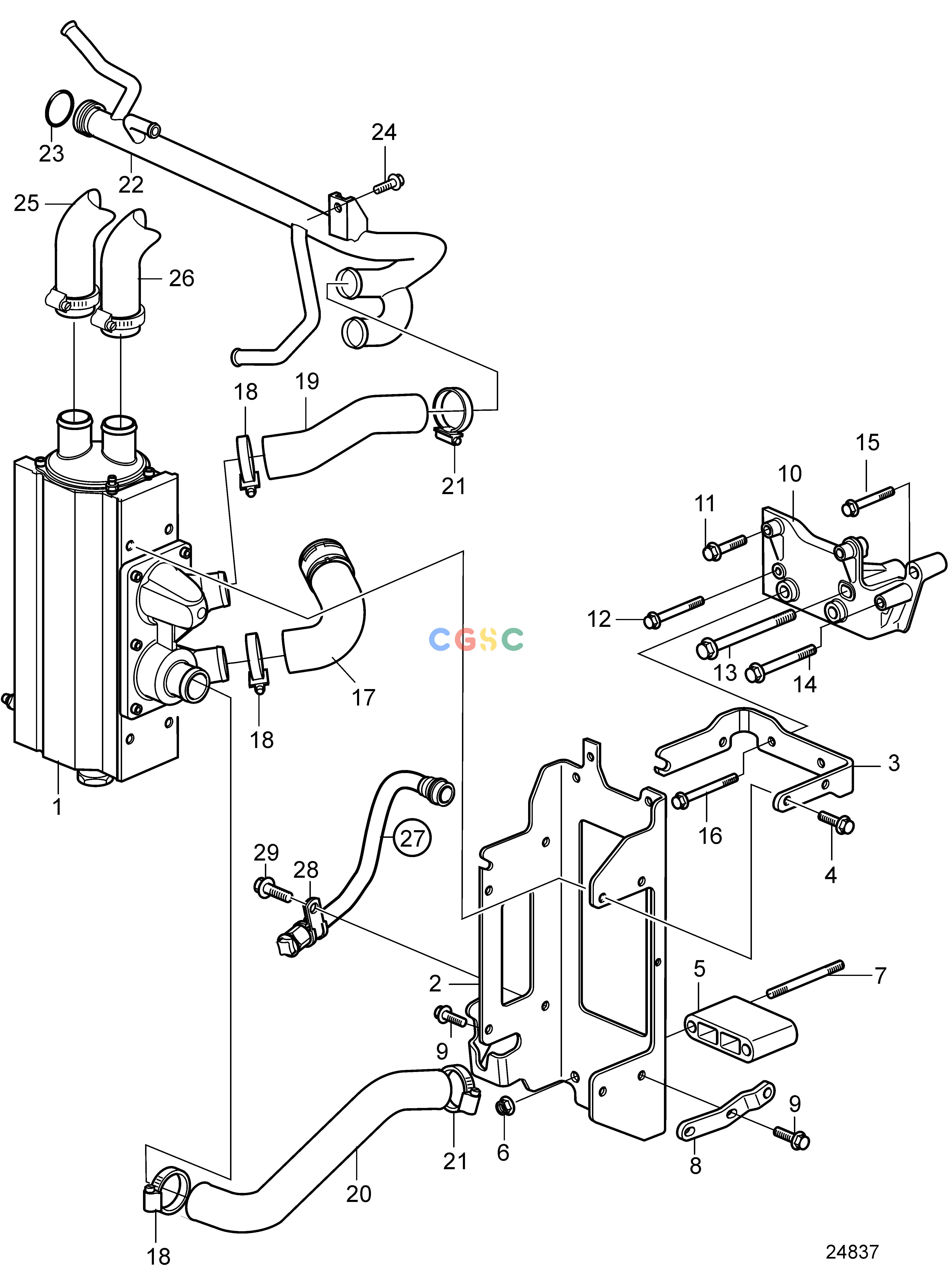

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Cooling SystemHeat Exchanger with Installation PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
190 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7749500_038
|
|
Heat exchanger
|
|
| 2. |
21442271
|
[1] |
Bracket
|
Replaced by 21572462
|
| 2. |
21572462
|
[1] |
Bracket
|
|
| 3. |
21308169
|
[1] |
Stay
|
|
| 4. |
946671
|
[4] |
Flange screw
|
M8x30mm
|
| 5. |
21306599
|
[1] |
Profile
|
|
| 6. |
971095
|
[2] |
Flange nut
|
|
| 7. |
953084
|
[2] |
Stud
|
M10x110mm
|
| 8. |
21406493
|
[1] |
Stay
|
|
| 9. |
946671
|
[2] |
Flange screw
|
M8x30mm
|
| 10. |
21259868
|
[1] |
Bracket
|
|
| 11. |
946671
|
[2] |
Flange screw
|
M8x30mm
|
| 12. |
968172
|
[1] |
Flange screw
|
M7x90mm
|
| 13. |
946671
|
[2] |
Flange screw
|
|
| 14. |
946472
|
[1] |
Flange screw
|
|
| 15. |
965187
|
[1] |
Flange screw
|
M10x60mm
|
| 16. |
969313
|
[1] |
Flange screw
|
|
| 17. |
21166146
|
[1] |
Hose
|
|
| 18. |
961670
|
[3] |
Hose clamp
|
|
| 19. |
21166149
|
[1] |
Hose
|
|
| 20. |
21454184
|
[1] |
Hose
|
|
| 21. |
961669
|
[2] |
Hose clamp
|
|
| 22. |
21591184
|
[1] |
Inlet pipe
|
|
| 23. |
976045
|
[1] |
O-ring
|
|
| 24. |
946544
|
[1] |
Flange screw
|
|
| 25. |
7749500_032
|
|
Hose
|
|
| 25. |
7749500_031
|
|
Hose
|
|
| 26. |
21166127
|
[1] |
Hose
|
Charge air cooler-Heat exchanger, Without servo pump., Replaced by 21824971
|
| 26. |
21824971
|
[1] |
Hose
|
Replaced by 22004801
|
| 26. |
22004801
|
[1] |
Hose
|
Replaced by 22990061
|
| 26. |
22990061
|
[1] |
Hose
|
|
| 27. |
21501494
|
[1] |
Hose
|
|
| 28. |
947827
|
[1] |
Clamp
|
|
| 29. |
946501
|
[1] |
Flange screw
|
|
