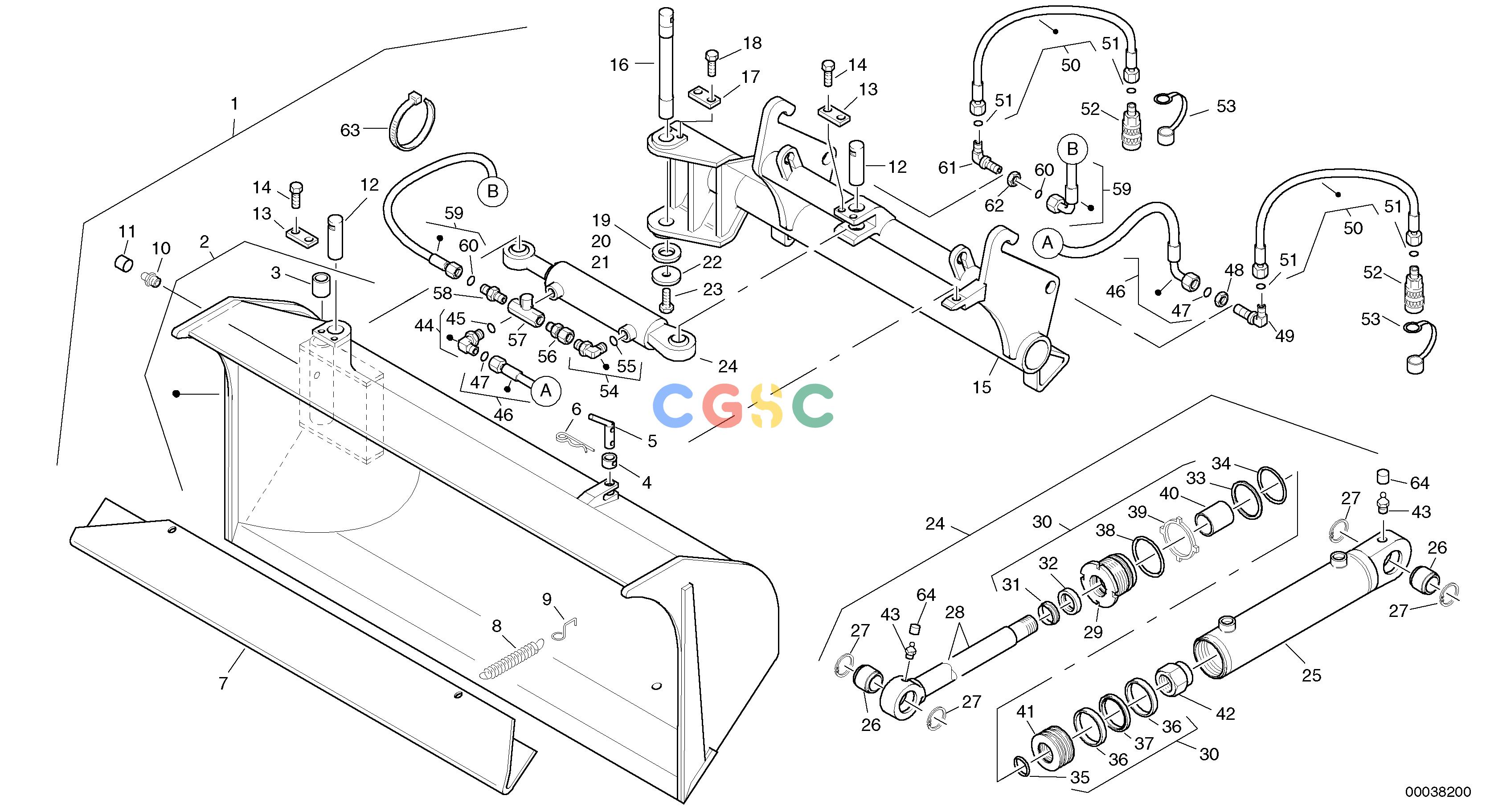

沃尔沃零件查询L40 Side tip bucket - TpzTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
660 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2878044
|
[1] |
Bucket
|
|
| 10. |
VOE14023568
|
[1] |
Lubricating nipple
|
AM10x1
|
| 11. |
ZM4384287
|
[1] |
Plug
|
|
| 12. |
VOE11305188
|
[2] |
Bolt
|
|
| 13. |
ZM1022370
|
[2] |
Locking plate
|
|
| 14. |
VOE983243
|
[4] |
Hexagon screw
|
M8x25
|
| 15. |
ZM2809589
|
[1] |
Support
|
|
| 16. |
ZM2803615
|
[1] |
Pin
|
|
| 17. |
VOE11305011
|
[1] |
Retainer
|
|
| 18. |
VOE983251
|
[2] |
Hexagon screw
|
M10x25
|
| 19. |
VOE11305195
|
[2] |
Washer
|
0,5 mm
|
| 2. |
ZM2810402
|
[1] |
Bucket
|
|
| 20. |
VOE11305196
|
[REQ] |
Washer
|
1,0 mm
|
| 21. |
VOE11305197
|
[REQ] |
Washer
|
2,5 mm
|
| 22. |
VOE11305182
|
[1] |
Cover
|
|
| 23. |
ZM8097020
|
[1] |
Screw
|
M16x40
|
| 24. |
VOE11307079
|
[1] |
Cylinder
|
|
| 25. |
ZM2290216
|
[1] |
Cylinder tube
|
|
| 26. |
VOE6645259
|
[2] |
Link bearing
|
|
| 27. |
VOE11305258
|
[4] |
Retaining ring
|
|
| 28. |
ZM2290217
|
[1] |
Piston pin
|
|
| 29. |
ZM2188320
|
[1] |
Bushing
|
|
| 3. |
VOE11305234
|
[2] |
Bushing
|
|
| 30. |
ZM2188410
|
[1] |
Gasket set, cpl.
|
|
| 31. |
ZM2013722
|
[1] |
Ring
|
|
| 32. |
ZM2013692
|
[1] |
Ring
|
|
| 33. |
ZM2188350
|
[1] |
Support ring
|
|
| 34. |
ZM2188360
|
[1] |
O-ring
|
|
| 35. |
ZM2146620
|
[1] |
O-ring
|
|
| 36. |
ZM2188380
|
[2] |
Guide ring
|
|
| 37. |
ZM2188390
|
[1] |
Seal
|
|
| 38. |
ZM2290214
|
[1] |
O-ring
|
|
| 39. |
ZM5226615
|
[1] |
Locking plate
|
|
| 4. |
VOE11305237
|
[1] |
Tube
|
|
| 40. |
ZM2188340
|
[1] |
Guide ring
|
|
| 41. |
ZM2188370
|
[1] |
Piston
|
|
| 42. |
ZM2188400
|
[1] |
Nut
|
|
| 43. |
ZM7092353
|
[2] |
Grease nipple
|
BM8x1
|
| 44. |
VOE11305199
|
[1] |
Fitting
|
|
| 45. |
ZM1027595
|
[1] |
O-ring
|
15,3x24
|
| 46. |
ZM2800037
|
[1] |
Hose
|
|
| 47. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 48. |
VOE957020
|
[1] |
Hexagon nut
|
M22x1,5
|
| 49. |
VOE957097
|
[1] |
Elbow nipple
|
L15
|
| 5. |
VOE11305183
|
[1] |
Bolt
|
|
| 50. |
VOE11306283
|
[2] |
Hose assembly
|
|
| 51. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 52. |
ZM2800538
|
[2] |
Quick-coupling
|
|
| 53. |
VOE11305090
|
[2] |
Dust cover
|
|
| 54. |
VOE11305199
|
[1] |
Fitting
|
|
| 55. |
ZM1027595
|
[1] |
O-ring
|
15,3x24
|
| 56. |
VOE11305198
|
[1] |
Fitting
|
|
| 57. |
VOE11305186
|
[1] |
Throttle valve
|
|
| 58. |
ZM4339658
|
[1] |
Screw-in socket
|
L15G1/2 B
|
| 59. |
VOE11305192
|
[1] |
Hose assembly
|
|
| 6. |
VOE11305200
|
[1] |
Retaining pin
|
|
| 60. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 61. |
VOE957097
|
[1] |
Elbow nipple
|
L15
|
| 62. |
VOE957020
|
[1] |
Hexagon nut
|
M22x1,5
|
| 63. |
ZM4375500
|
[4] |
Cable clamp
|
|
| 64. |
ZM4384287
|
[2] |
Plug
|
|
| 7. |
ZM2814273
|
[1] |
Protecting plate
|
|
| 8. |
VOE11315002
|
[2] |
Tension spring
|
|
| 9. |
VOE11315003
|
[2] |
Lug
|
|
