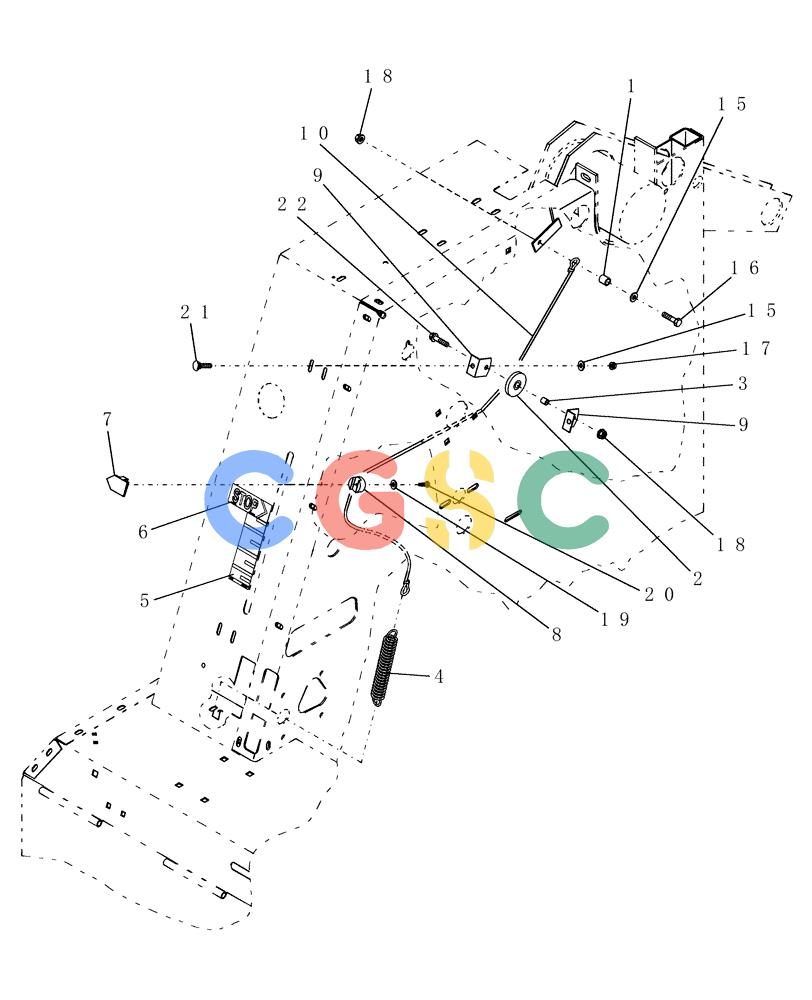

凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (055) - BALE SIZE INDICATOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
953 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
803378
|
[1] |
SPACER
|
NH
|
| 2. |
510932
|
[1] |
PULLEY,50.01mm OD
|
NH
|
| 3. |
696365
|
[1] |
SPACER
|
NH
|
| 4. |
86509848
|
[1] |
SPRING
|
NH
Superseded by part number: 217208
|
| 5. |
86619205
|
[1] |
DECAL
|
NH
Bale Size
|
| 6. |
86619213
|
[1] |
WARNING SIGN
|
NH
STOP
|
| 7. |
9612212
|
[1] |
INDICATOR
|
NH
|
| 8. |
9619090
|
[1] |
CAP COVER
|
NH
|
| 9. |
689986
|
[2] |
ANGLE
|
NH
|
| 10. |
9843708
|
[1] |
CABLE
|
NH
|
| 15. |
495-21038
|
[3] |
WASHER,5/16"
|
CAS
Superseded by part number: 80664, 72187263
|
| 16. |
614-8025
|
[1] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43127
|
| 17. |
825-5146
|
[2] |
SERRATED NUT,M6, Flg Ser
|
CAS
Superseded by part number: 86511444
|
| 18. |
825-5148
|
[2] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 19. |
495-21019
|
[1] |
WASHER,#8
|
CAS
Superseded by part number: 280299, 72187261
|
| 20. |
281020
|
[1] |
SELF-TAP SCREW,Pan HD, #8 - 18 x 3/4"
|
NH
|
| 21. |
9706703
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 22. |
844-8030
|
[1] |
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 87779272, 9804260
|
