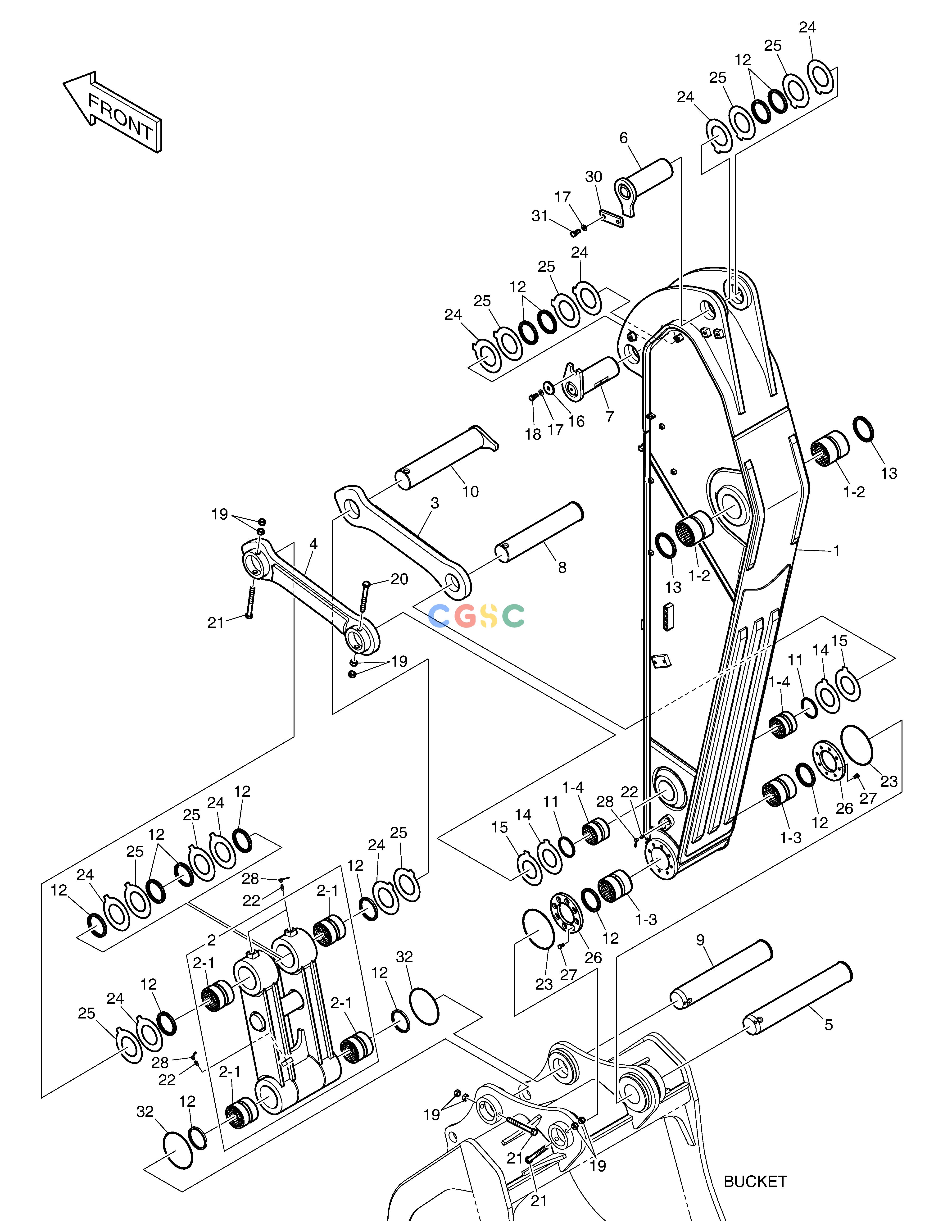

斗山零件查询ARM - 2.6m DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
274 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230201-00439
|
[-] |
|
|
| 1. |
230204-00170G
|
[1] |
|
|
| 1-2. |
131004-00121
|
[2] |
|
|
| 1-3. |
131004-00018B
|
[2] |
|
|
| 1-4. |
131004-00007B
|
[2] |
|
|
| 10. |
120501-00154B
|
[1] |
|
|
| 11. |
DS5502014
|
[2] |
PARE-POUSSIERES
|
|
| 12. |
DS5502015
|
[14] |
PARE-POUSSIERES
|
|
| 13. |
DS5502018
|
[2] |
|
|
| 14. |
DS7752046
|
[2] |
SHIM
|
|
| 15. |
DS7752045
|
[2] |
CALE
|
|
| 16. |
2116-1060D5
|
[1] |
STOPPER
|
|
| 17. |
2114-1816A
|
[3] |
WASHER
|
|
| 18. |
S0521366
|
[1] |
BOLT
|
|
| 19. |
S4013133
|
[8] |
NUT
|
|
| 2. |
101541-00044
|
[1] |
|
|
| 2-1. |
131004-00019B
|
[4] |
|
|
| 20. |
DS0001086
|
[1] |
BOLT
|
|
| 21. |
DS0001087
|
[3] |
BOLT
|
|
| 22. |
S6710041
|
[5] |
NIPPLE,GREASE
|
|
| 23. |
180-00077D8
|
[2] |
O-RING
|
|
| 24. |
DS7752048
|
[8] |
SHIM
|
|
| 25. |
DS7752047
|
[8] |
SHIM
|
|
| 26. |
K1004431
|
[2] |
SPACER
|
|
| 27. |
120-00223
|
[16] |
BOLT M12X1.25X25
|
|
| 28. |
160-00020
|
[5] |
CAP
|
|
| 3. |
101540-00039A
|
[1] |
|
|
| 30. |
250107-00263
|
[1] |
|
|
| 31. |
S0521456
|
[2] |
BOLT M16X2.0X40
|
|
| 32. |
180-00077D7
|
[2] |
O-RING
|
|
| 4. |
K1000445
|
[1] |
LINK;GUIDE(L.H)
|
|
| 5. |
120501-01102
|
[1] |
|
|
| 6. |
120501-00149A
|
[1] |
|
|
| 7. |
120501-00060
|
[1] |
|
|
| 8. |
120501-01104
|
[1] |
|
|
| 9. |
120501-01105
|
[1] |
|
|
