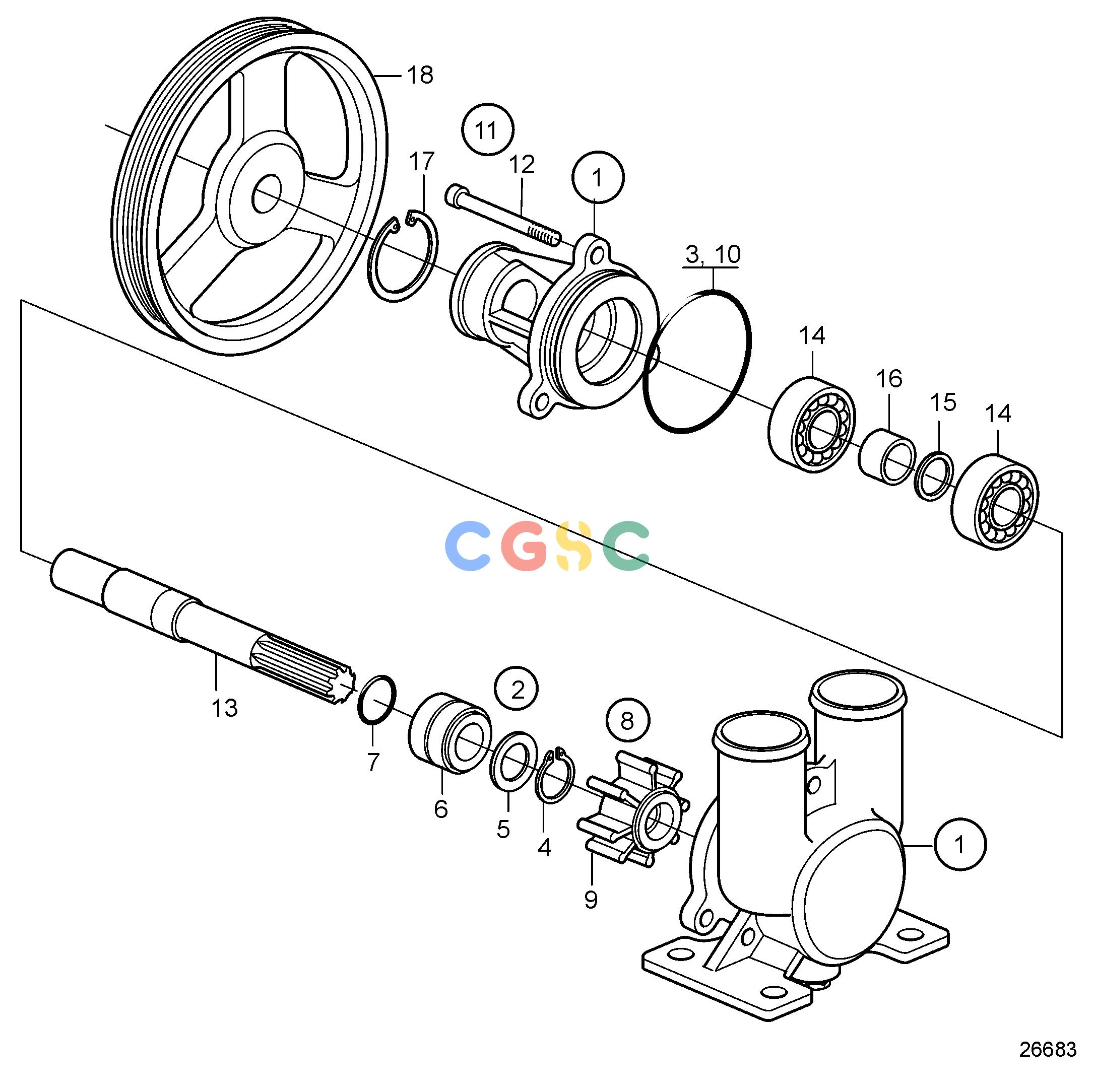

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Cooling SystemSea Water Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
237 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21379102
|
[1] |
Sea water pump
|
|
| 2. |
21951386
|
[1] |
Wear kit
|
|
| 3. |
|
|
|
|
| 4. |
809444
|
[1] |
Lock ring
|
|
| 5. |
3583988
|
[1] |
Washer
|
|
| 6. |
21379134
|
[1] |
Sealing ring
|
|
| 7. |
960166
|
[1] |
O-ring
|
|
| 8. |
3593660
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 8. |
21381693
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 8. |
21951352
|
[1] |
Impeller kit
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
21951330
|
[1] |
Screw kit
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
181800
|
[2] |
Ball bearing
|
|
| 15. |
914451
|
[1] |
Snap ring
|
|
| 16. |
21379143
|
[1] |
Spacer
|
|
| 17. |
914523
|
[1] |
Snap ring
|
|
| 18. |
|
|
|
|
