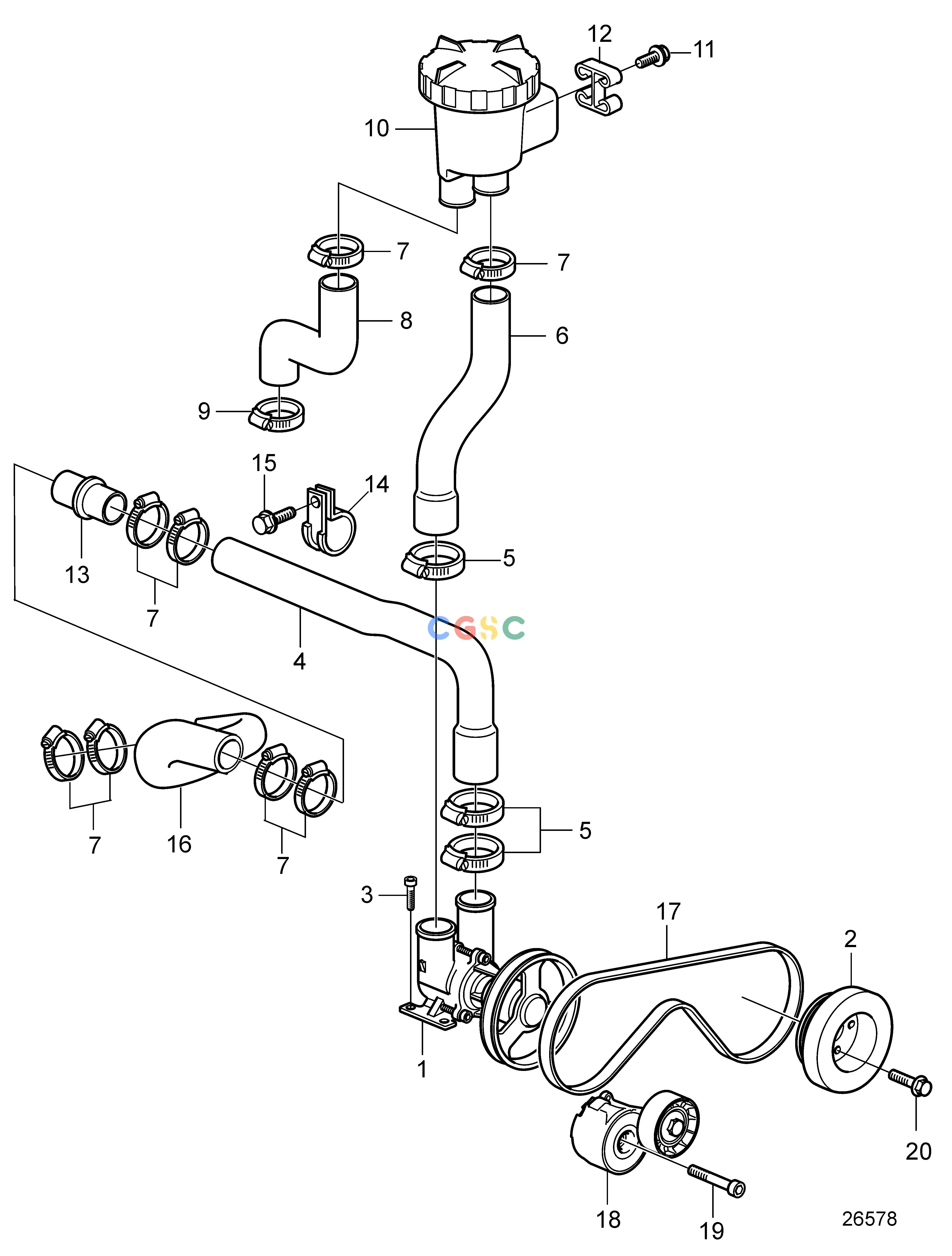

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Cooling SystemSeawater Pump and Hoses AQEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
336 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7749500_115
|
|
Sea water pump
|
|
| 2. |
21255747
|
[1] |
Vibration damper
|
110-170 HP
|
| 3. |
959223
|
[4] |
Hex. socket screw
|
M8x30mm
|
| 4. |
22371786
|
[1] |
Hose
|
|
| 5. |
961670
|
[3] |
Hose clamp
|
|
| 6. |
21535682
|
[1] |
Hose
|
Sea water pump-sea water filter.
|
| 7. |
961669
|
[8] |
Hose clamp
|
|
| 8. |
21162573
|
[1] |
Hose
|
Aftercooler-Sea water filter.
|
| 9. |
961670
|
[1] |
Hose clamp
|
|
| 10. |
7749500_048
|
|
Sea water filter
|
|
| 11. |
965180
|
[4] |
Flange screw
|
M8x20mm
|
| 12. |
21369356
|
[1] |
Profile
|
|
| 13. |
861090
|
[1] |
Tube
|
|
| 14. |
967645
|
[1] |
Clamp
|
|
| 15. |
946544
|
[1] |
Flange screw
|
M6x16mm
|
| 16. |
22371852
|
[1] |
Hose
|
|
| 17. |
21160912
|
[1] |
V-ribbed belt
|
|
| 18. |
21424647
|
[1] |
Belt tensioner
|
|
| 19. |
959245
|
[1] |
Hex. socket screw
|
|
| 20. |
975101
|
[4] |
Flange screw
|
M10x40mm
|
