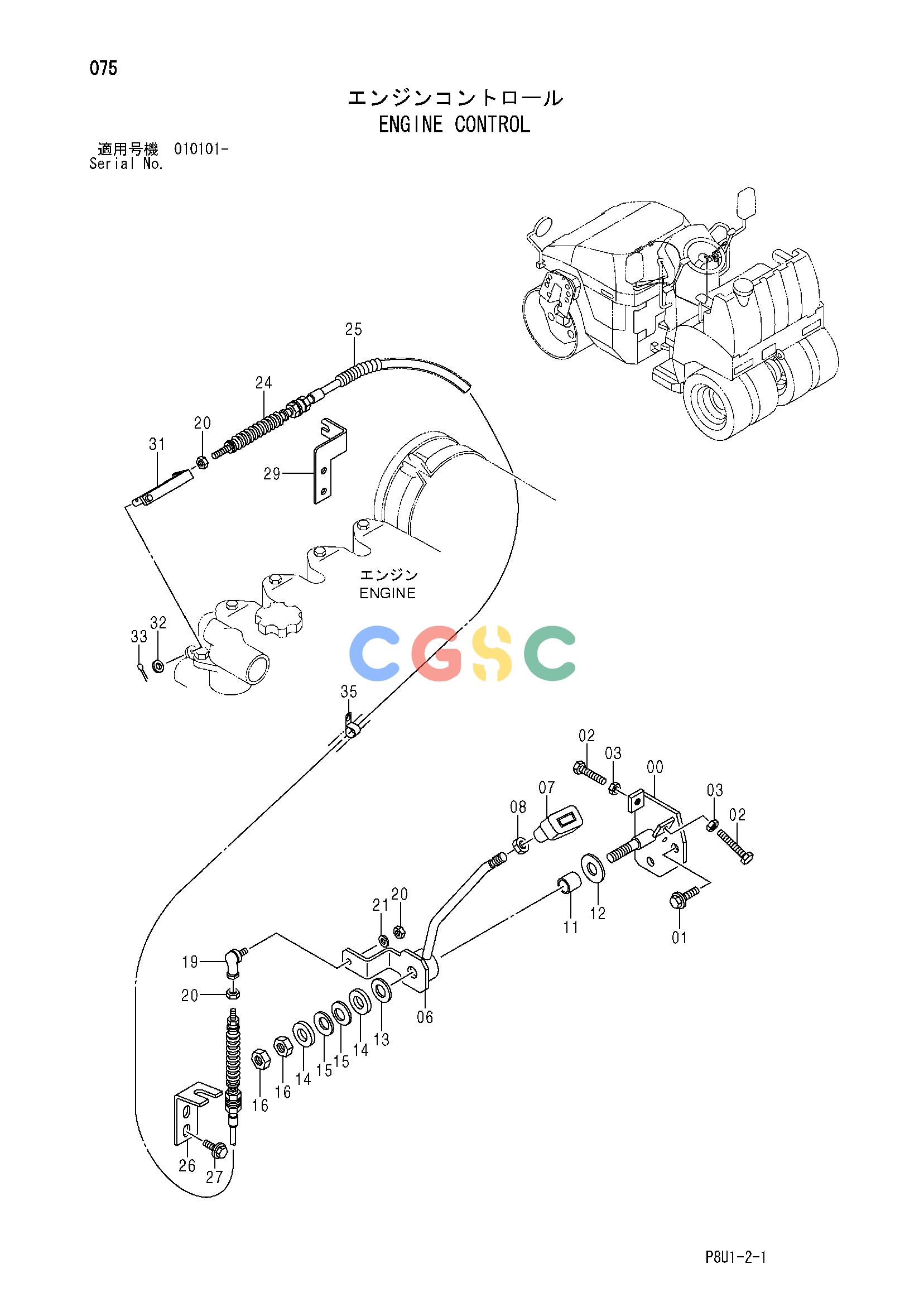

日立零件查询（CC135）ENGINE CONTROL Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
832 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425758 | [1] | BRACKET | |
| 01. | 500048 | [2] | BOLT;SEMS | |
| 02. | 947624 | [2] | BOLT | |
| 03. | 947854 | [2] | NUT | |
| 06. | 425757 | [1] | LEVER | |
| 07. | 424737 | [1] | GRIP | |
| 08. | 425113 | [1] | NUT | |
| 11. | 425588 | [1] | BUSHING | |
| 12. | 425589 | [1] | DISK;FRICTION | |
| 13. | 425233 | [1] | DISK;FRICTION | |
| 14. | 821128 | [2] | WASHER | |
| 15. | 439799 | [2] | SPRING;DISK | |
| 16. | 947857 | [2] | NUT | |
| 19. | 424025 | [1] | JOINT;BALL | |
| 20. | 947852 | [3] | NUT | |
| 21. | 947885 | [1] | WASHER;SPRING | |
| 24. | 425875 | [1] | CABLE;CONTROL | |
| 25. | 424361 | [2] | TUBE;CORRUGATED | |
| 26. | 425587 | [1] | BRACKET | |
| 27. | 947619 | [2] | BOLT;SEMS | |
| 29. | 425683 | [1] | BRACKET | |
| 31. | 425536 | [1] | BRACKET | |
| 32. | 947322 | [1] | WASHER;PLANE | |
| 33. | 630035 | [1] | PIN;SPLIT | |
| 35. | 424943 | [1] | CLIP | |
