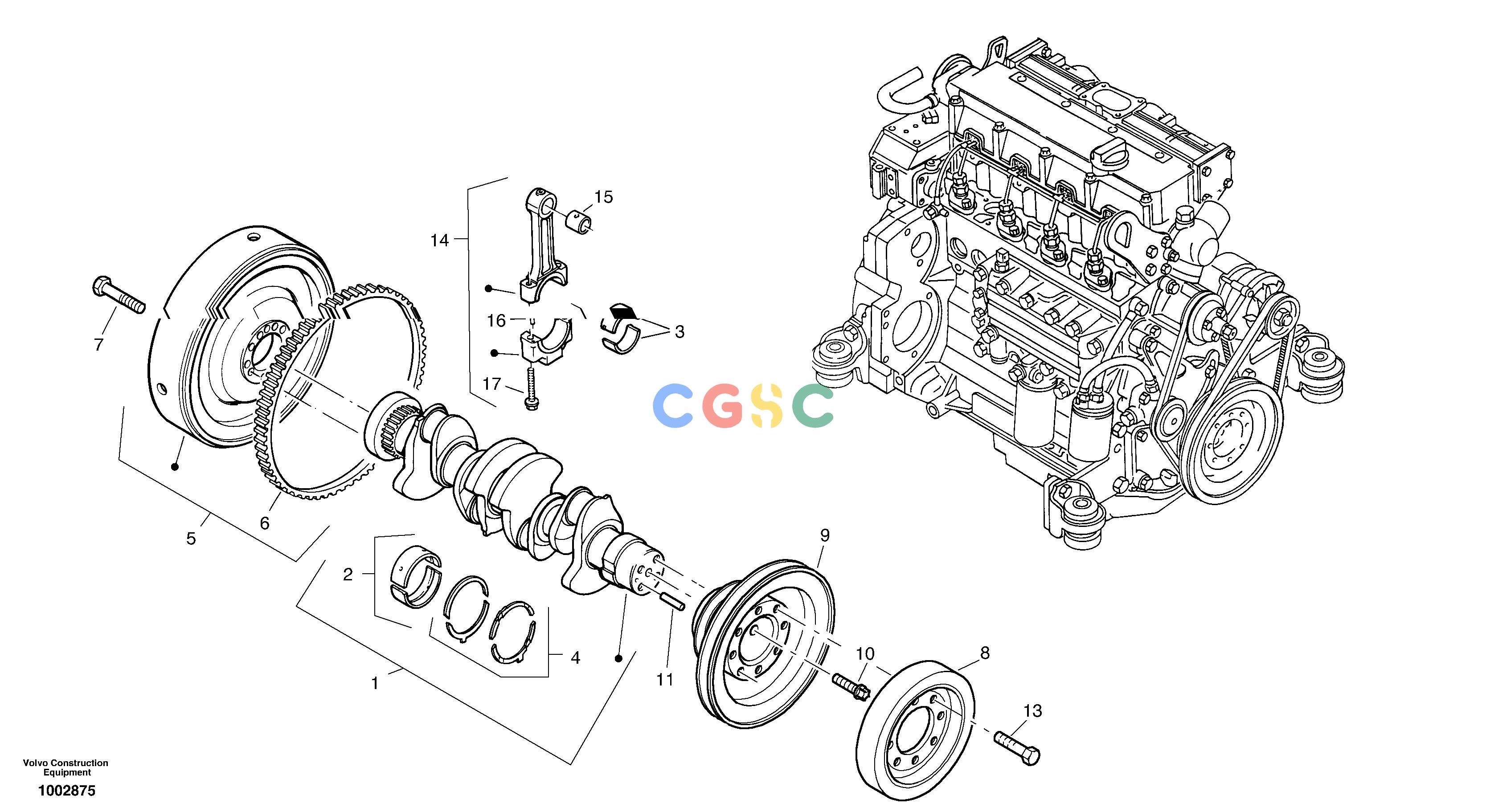

沃尔沃零件查询L40B CrankshaftTYPE 191, 192 SER NO - 14991911001--1921001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
572 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21264836
|
[1] |
Crankshaft
|
|
| 4. |
VOE21141963
|
[REQ] |
Thrust washer
|
3,1 mm
|
| 5. |
VOE20459128
|
[1] |
Flywheel
|
|
| 6. |
ZM4050611
|
[1] |
Gear ring
|
|
| 7. |
VOE20405654
|
[10] |
Bolt
|
|
| 8. |
VOE20459925
|
[1] |
Vibration absorber
|
|
| 9. |
ZM2907646
|
[1] |
V-belt pulley
|
|
| 10. |
VOE20460199
|
[4] |
Screw
|
|
| 11. |
VOE20405634
|
[1] |
Spring pin
|
|
| 13. |
VOE975108
|
[9] |
Flange screw
|
|
| 1. |
VOE21264836
|
[1] |
Crankshaft
|
|
| 14. |
VOE20585982
|
[4] |
Connecting rod
|
|
| 15. |
VOE11700325
|
[1] |
Bushing
|
|
| 16. |
VOE20459134
|
[2] |
Pin
|
|
| 17. |
VOE11700326
|
[2] |
Bolt
|
|
| 2. |
VOE20405541
|
[REQ] |
Main bearing
|
84,50 mm
|
| 2. |
VOE21234191
|
[REQ] |
Main bearing
|
84,75 mm
|
| 2. |
VOE21141948
|
[5] |
Main bearing
|
85,00 mm
|
| 3. |
VOE20565188
|
[REQ] |
Big-end Bearing
|
67,50 mm
|
| 3. |
VOE20717211
|
[REQ] |
Big-end Bearing
|
67,75 mm
|
| 3. |
VOE20565150
|
[4] |
Bearing
|
68,00 mm
|
| 4. |
ZM2903951
|
[1] |
Washer
|
2,9 mm
|
