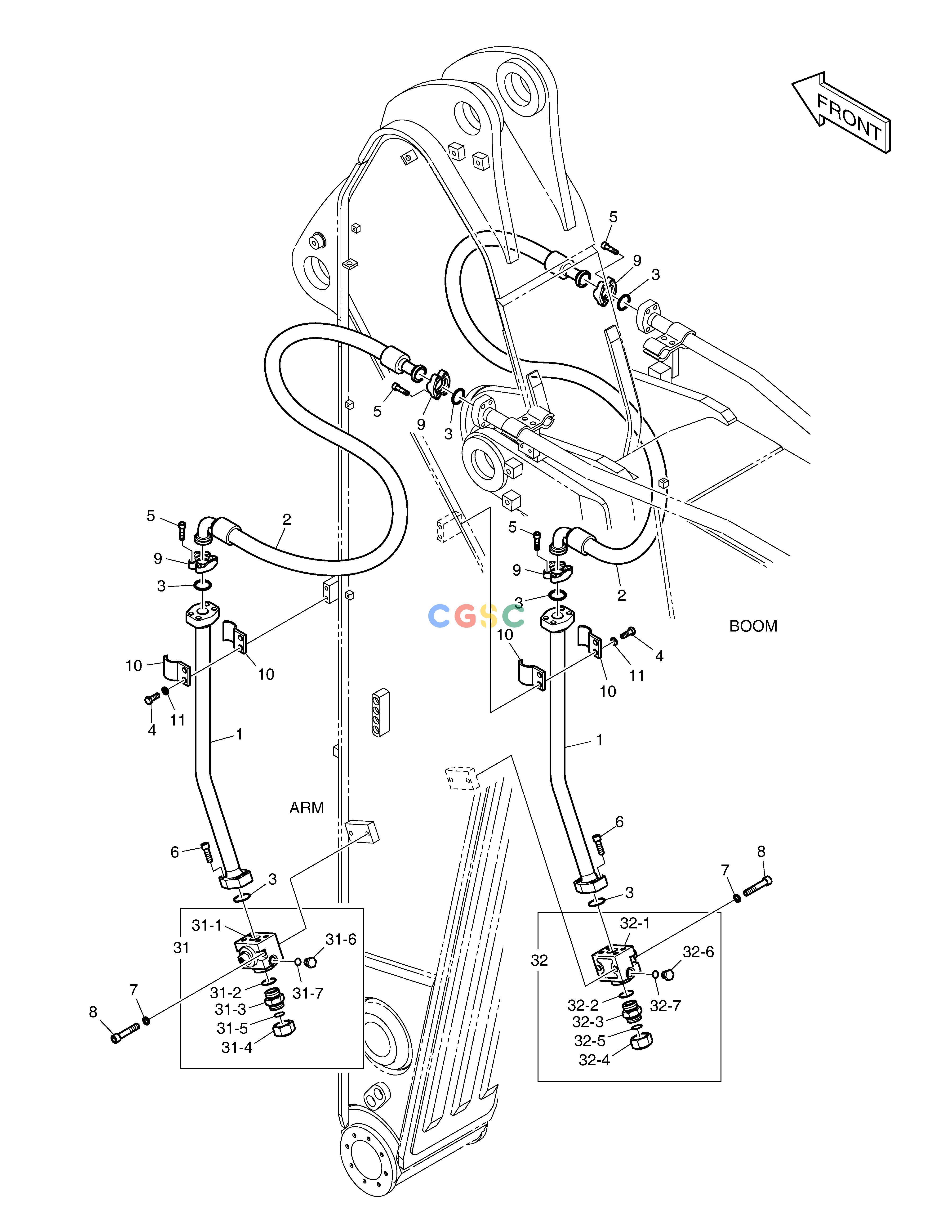

斗山零件查询ARM PIPING - ONE & TWO WAY(ARM 2.95m) DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
196 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08262
|
[-] |
|
|
| 1. |
420207-02228
|
[2] |
|
|
| 10. |
K1004000
|
[4] |
CLAMP;PIPE
|
|
| 11. |
120804-00080
|
[4] |
WASHER
|
|
| 2. |
DS20401044
|
[2] |
|
|
| 3. |
2180-1026D23
|
[6] |
O-RING
|
|
| 31. |
410137-00050C
|
[1] |
|
|
| 31-1. |
410137-00041C
|
[1] |
|
|
| 31-2. |
S8000381
|
[1] |
O-RING
|
|
| 31-3. |
2181-4133D35
|
[1] |
ADAPTER
|
|
| 31-4. |
2181-2817D3
|
[1] |
CAP
|
|
| 31-5. |
2180-1026D37
|
[1] |
O-RING
|
|
| 31-6. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 31-7. |
S8000181
|
[1] |
O-RING
|
|
| 32. |
410137-00051C
|
[1] |
|
|
| 32-1. |
410137-00043C
|
[1] |
|
|
| 32-2. |
S8000381
|
[1] |
O-RING
|
|
| 32-3. |
2181-4133D35
|
[1] |
ADAPTER
|
|
| 32-4. |
2181-2817D3
|
[1] |
CAP
|
|
| 32-5. |
2180-1026D37
|
[1] |
O-RING
|
|
| 32-6. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 32-7. |
S8000181
|
[1] |
O-RING
|
|
| 4. |
S0562766
|
[4] |
BOLT
|
|
| 5. |
S2218766
|
[16] |
BOLT;SOCKET
|
|
| 6. |
S2218566
|
[8] |
BOLT;SOCKET
|
|
| 7. |
S5110903
|
[4] |
WASHER
|
|
| 8. |
S2222266
|
[4] |
|
|
| 9. |
2181-9086
|
[8] |
FLANGE;SPLIT
|
|
