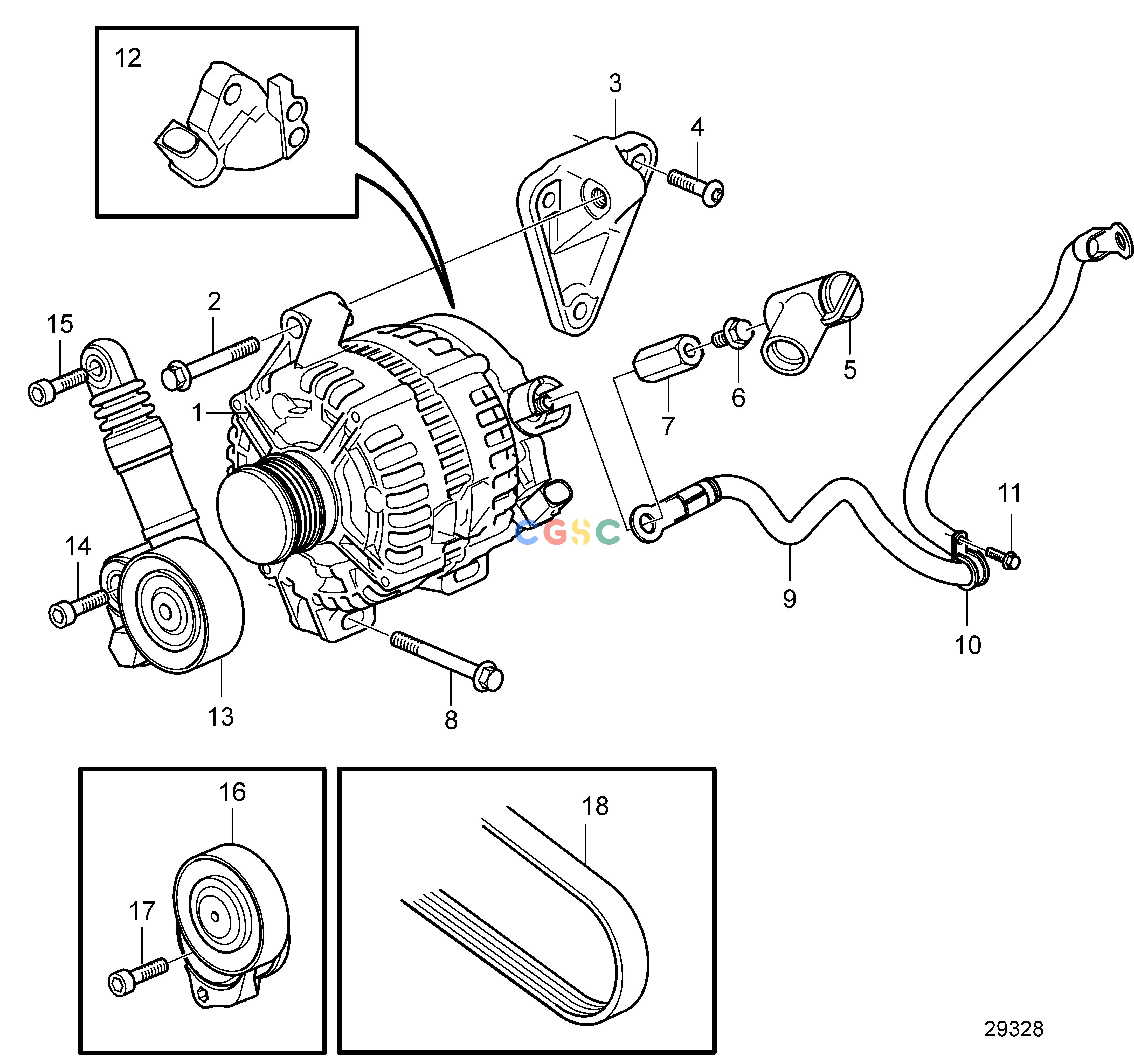

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Electrical SystemAlternator and Belt TensionerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
687 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30667118
|
[1] |
Alternator
|
|
| 2. |
965180
|
[1] |
Flange screw
|
M8x60mm
|
| 3. |
21141333
|
[1] |
Bracket
|
|
| 4. |
969601
|
[3] |
Six point socket scr
|
M8x30mm
|
| 5. |
855798
|
[1] |
Protecting sleeve
|
|
| 6. |
947107
|
[1] |
Flange screw
|
M18x12mm
|
| 7. |
21264221
|
[1] |
Spacer nut
|
|
| 8. |
984651
|
[2] |
Flange screw
|
|
| 9. |
21398171
|
[1] |
Cable
|
Alternator - starter motor
|
| 10. |
952626
|
[1] |
Clamp
|
|
| 11. |
945358
|
[1] |
Flange screw
|
|
| 12. |
30667900
|
[1] |
Governor
|
|
| 13. |
31316674
|
[1] |
Belt tensioner
|
Hydraulic, SN2003019005-, SN-A186693
|
| 13. |
22707408
|
[1] |
Belt tensioner
|
Hydraulic, SN2003019005-, SN-A186693
|
| 14. |
30624253
|
[1] |
Six point socket scr
|
|
| 15. |
30624245
|
[1] |
Six point socket scr
|
|
| 16. |
21826866
|
[1] |
Belt tensioner
|
Mechanical, SN200317438-, SN-2003019004, SNA186694-
|
| 17. |
988144
|
[1] |
Six point socket scr
|
Replaced by 30624274
|
| 17. |
30624274
|
[1] |
Six point socket scr
|
|
| 18. |
22283751
|
[1] |
V-ribbed belt
|
|
