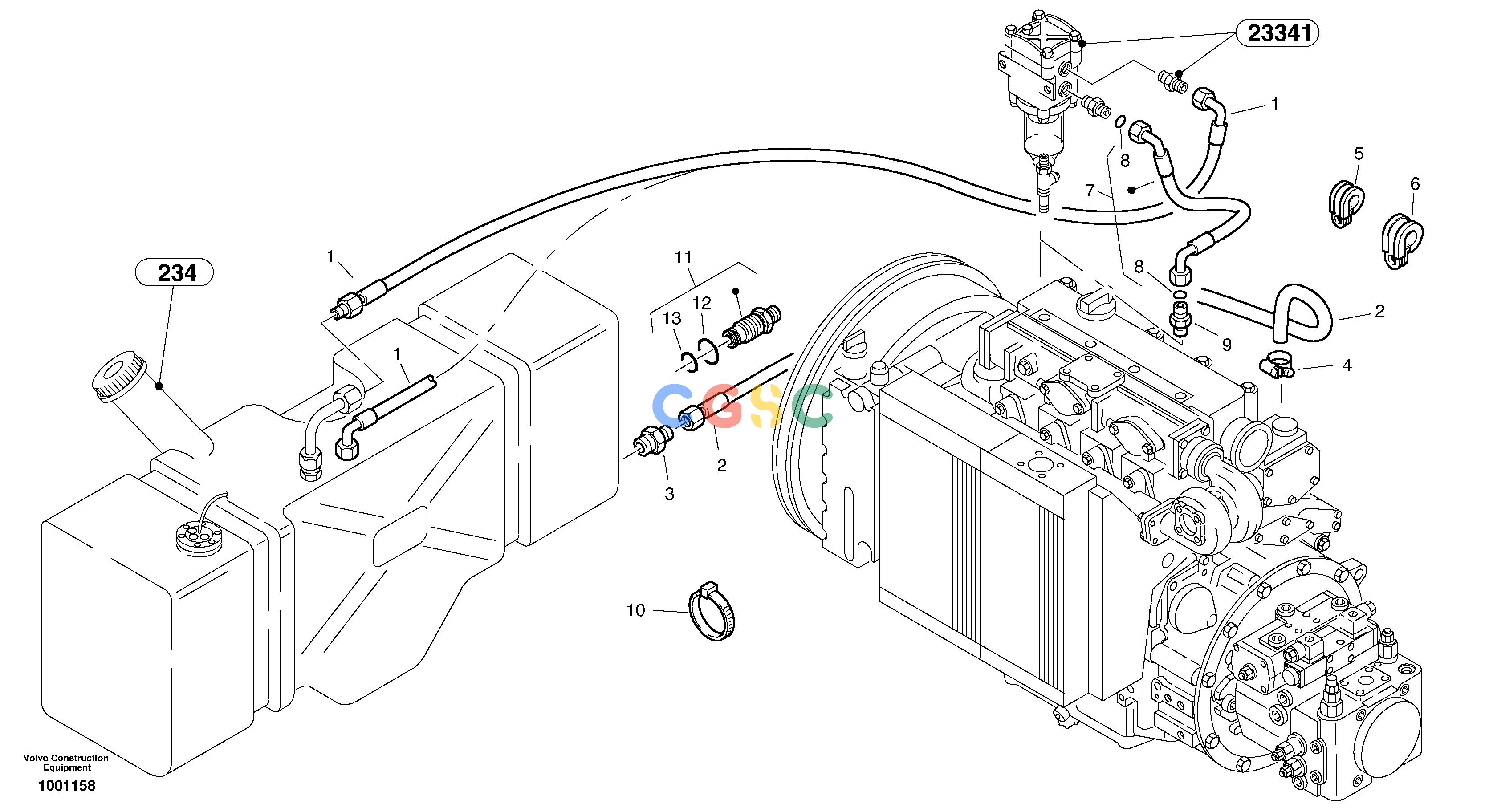

沃尔沃零件查询L40B Fuel pipesTYPE 191, 192 SER NO - 14991911001--1921001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
743 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2813358
|
[1] |
Fuel hose (suction)
|
-1911063/-1921220
|
| 1. |
ZM2817350
|
[1] |
Fuel hose
|
1911064-/1921221-
|
| 2. |
ZM2817351
|
[1] |
Hose
|
-1911063/-1921220
|
| 2. |
ZM2817351
|
[1] |
Hose
|
1911064-/1921221-
|
| 3. |
ZM2811249
|
[1] |
Pipe end
|
-1911119, -1921326
|
| 4. |
VOE943470
|
[1] |
Hose clamp
|
|
| 5. |
ZM5054800
|
[2] |
Clip
|
D1-16X20
|
| 6. |
ZM2290453
|
[1] |
Pipe clip
|
|
| 7. |
ZM2817352
|
[1] |
Fuel hose
|
-1911063/-1921220
|
| 7. |
ZM2817352
|
[1] |
Fuel hose
|
1911064-/1921221-
|
| 8. |
ZM2259052
|
[2] |
O-ring
|
9,5x2
|
| 9. |
ZM2806536
|
[1] |
Nipple
|
|
| 10. |
ZM2193590
|
[6] |
Cable clip
|
|
| 11. |
VOE11306079
|
[1] |
Fitting
|
1911120-, 1921327-
|
| 12. |
VOE11370540
|
[1] |
O-ring
|
22x5,5
|
| 13. |
VOE11370541
|
[1] |
O-ring
|
14x5
|
