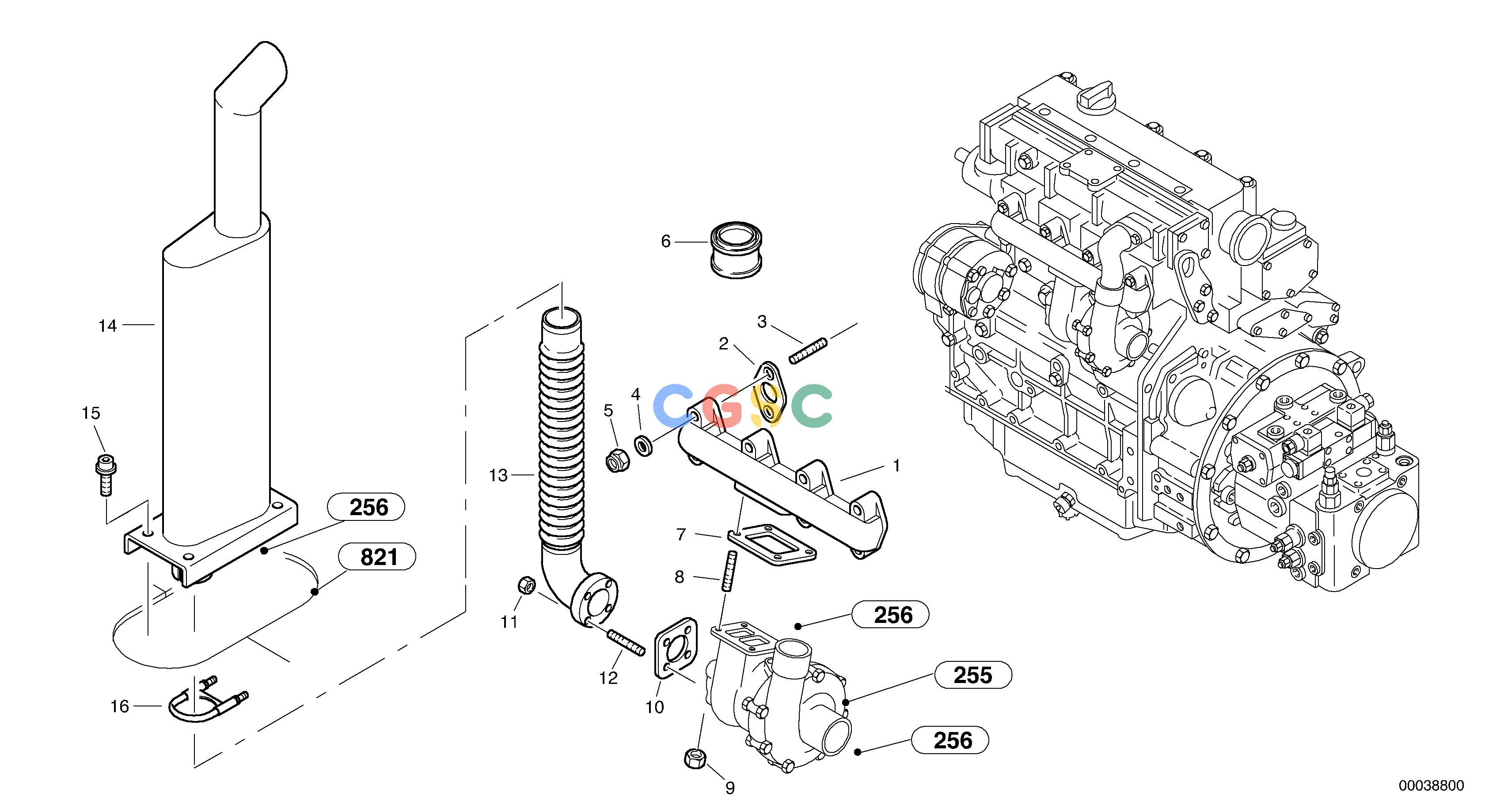

沃尔沃零件查询L40B Exhaust systemTYPE 191, 192 SER NO - 14991911001--1921001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
989 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2908431
|
[1] |
Exhaust pipe
|
|
| 2. |
ZM2900354
|
[4] |
Gasket
|
|
| 3. |
VOE11705308
|
[8] |
Pin screw
|
|
| 4. |
ZM2900353
|
[8] |
Washer
|
|
| 5. |
VOE20505959
|
[8] |
Hexagon nut
|
|
| 6. |
ZM2908435
|
[REQ] |
Gasket compound
|
|
| 7. |
VOE20405590
|
[1] |
Gasket
|
|
| 8. |
VOE20412318
|
[4] |
Stud
|
|
| 9. |
ZM2908434
|
[4] |
Nut
|
|
| 10. |
VOE20405608
|
[1] |
Gasket
|
|
| 11. |
ZM2908434
|
[4] |
Nut
|
|
| 12. |
ZM8097402
|
[4] |
Pin screw
|
M8x45
|
| 13. |
ZM2815866
|
[1] |
Exhaust hose
|
|
| 14. |
ZM2810943
|
[1] |
Muffler
|
|
| 15. |
ZM2810334
|
[4] |
Screw
|
M10x25
|
| 16. |
VOE949719
|
[1] |
Clamp
|
|
