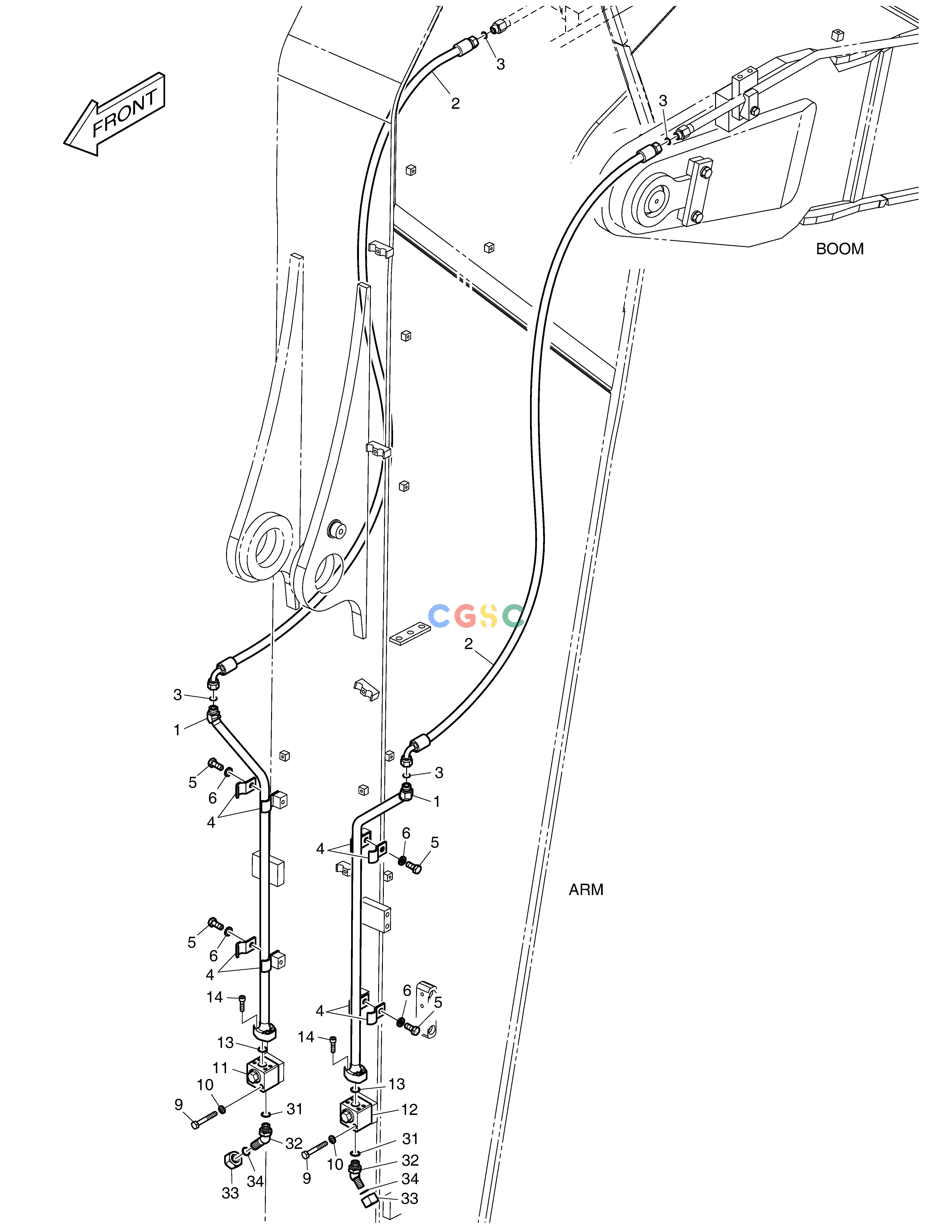

斗山零件查询ARM PIPING - ROTATING (ARM 3.95m) DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
597 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05119
|
[-] |
|
|
| 1. |
420207-01416
|
[2] |
|
|
| 10. |
S5102603
|
[4] |
. WASHER
|
|
| 11. |
K1006227
|
[1] |
VALVE,SWITCH
|
|
| 12. |
K1006228
|
[1] |
VALVE,SWITCH
|
|
| 13. |
2180-1026D30
|
[2] |
O-RING
|
|
| 14. |
S2209266
|
[8] |
BOLT
|
|
| 2. |
DS20131965
|
[2] |
|
|
| 3. |
S8030081
|
[4] |
O-RING
|
|
| 31. |
S8000181
|
[2] |
O-RING
|
|
| 32. |
2181-2816D4
|
[2] |
ELBOW
|
|
| 33. |
2181-2817D4
|
[2] |
CAP
|
|
| 34. |
S8030081
|
[2] |
O-RING
|
|
| 4. |
124-00299A
|
[8] |
CLAMP
|
|
| 5. |
S0515466
|
[4] |
BOLT
|
|
| 6. |
S5102703
|
[4] |
WASHER
|
|
| 9. |
S0558966
|
[4] |
BOLT
|
|
