纽荷兰零件查询(DC150PS) - CRAWLER DOZER (9.349[01]) - SALT TRACK CHAIN - SHOES (1GR.L=800MM) - OPTIONAL CODE 76075251 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
621 次

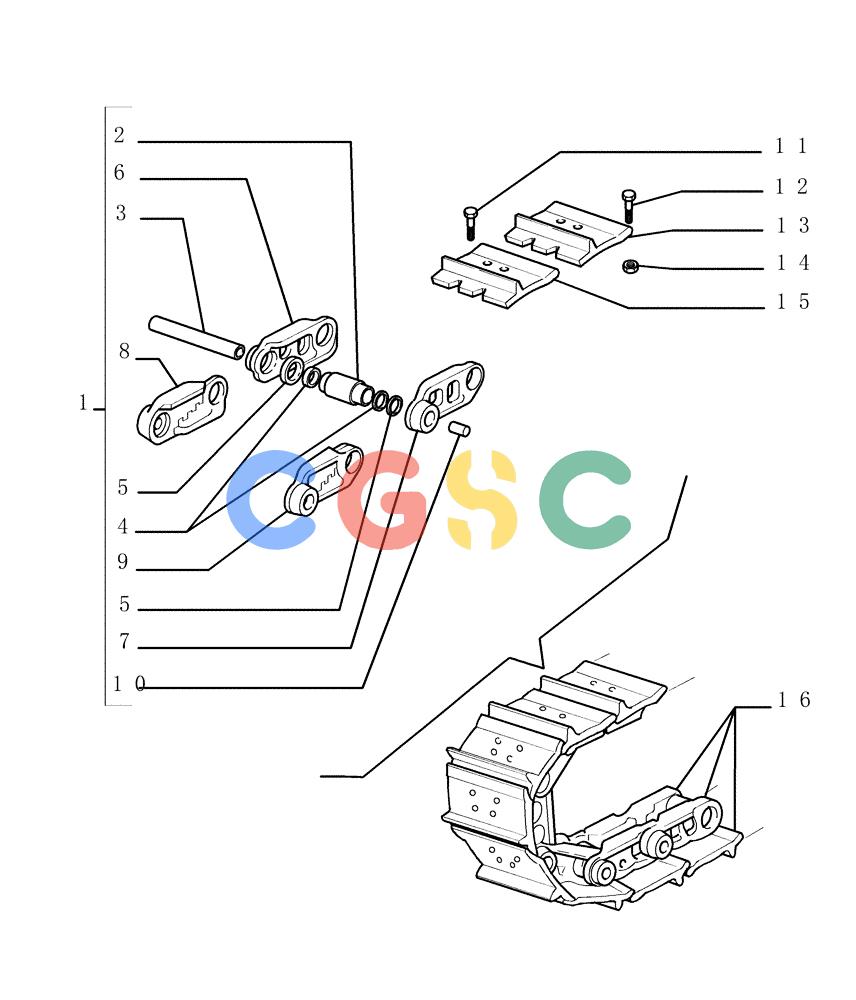

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76069523 | [2] | TRACK ASSY | LEC- ASSY |
| 2. | 79039483 | [48] | BUSHING | LEC |
| 3. | 79039482 | [48] | PIN | LEC |
| 4. | 79039493 | [96] | SPACER,37.25mm ID x 41.7mm OD x 9.3mm L | LEC |
| 5. | 79082288 | [96] | SEAL | LEC |
| 6. | 79039432 | [47] | TRACK LINK | LEC- RIGHT |
| 7. | 79039433 | [47] | TRACK LINK | LEC- LEFT |
| 8. | 79082285 | [1] | CONNECTING LINK | LEC- RIGHT IN ALTERNATIVE |
| 8. | 79083794 | [1] | CONNECTING LINK | LEC- RIGHT SPLIT IN ALTERNATIVE Superseded by part number: 79082285 |
| 9. | 79082286 | [1] | CONNECTING LINK | LEC- LEFT IN ALTERNATIVE |
| 9. | 79083803 | [1] | CONNECTING LINK | LEC- LEFT SPLIT IN ALTERNATIVE Superseded by part number: 79082286 |
| 10. | 79082287 | [48] | PLUG | LEC |
| 11. | 76030016 | [4] | FLANGE BOLT,Hex, M18 x 1.5 x 95mm, Cl 12.9 | LEC Superseded by part number: 79039444 |
| 12. | 76030015 | [188] | FLANGE BOLT,Hex, M18 x 1.5 x 55mm, Cl 12.9 | LEC Superseded by part number: 79039443 |
| 13. | 76069524 | [47] | TRACK SHOE | LEC- (1 GROUSER) |
| 14. | 76030017 | [188] | SQUARE NUT | LEC Superseded by part number: 79039445 |
| 15. | 76069525 | [1] | TRACK SHOE | LEC- (1 GROUSER) MASTER |
| 16. | 76069522 | [2] | TRACK ASSY | LEC- ASSY WITH SHOES (800mm) Superseded by part number: 76030017, 76069523, 76030015, 76069524, 79039444, 76069525 |
