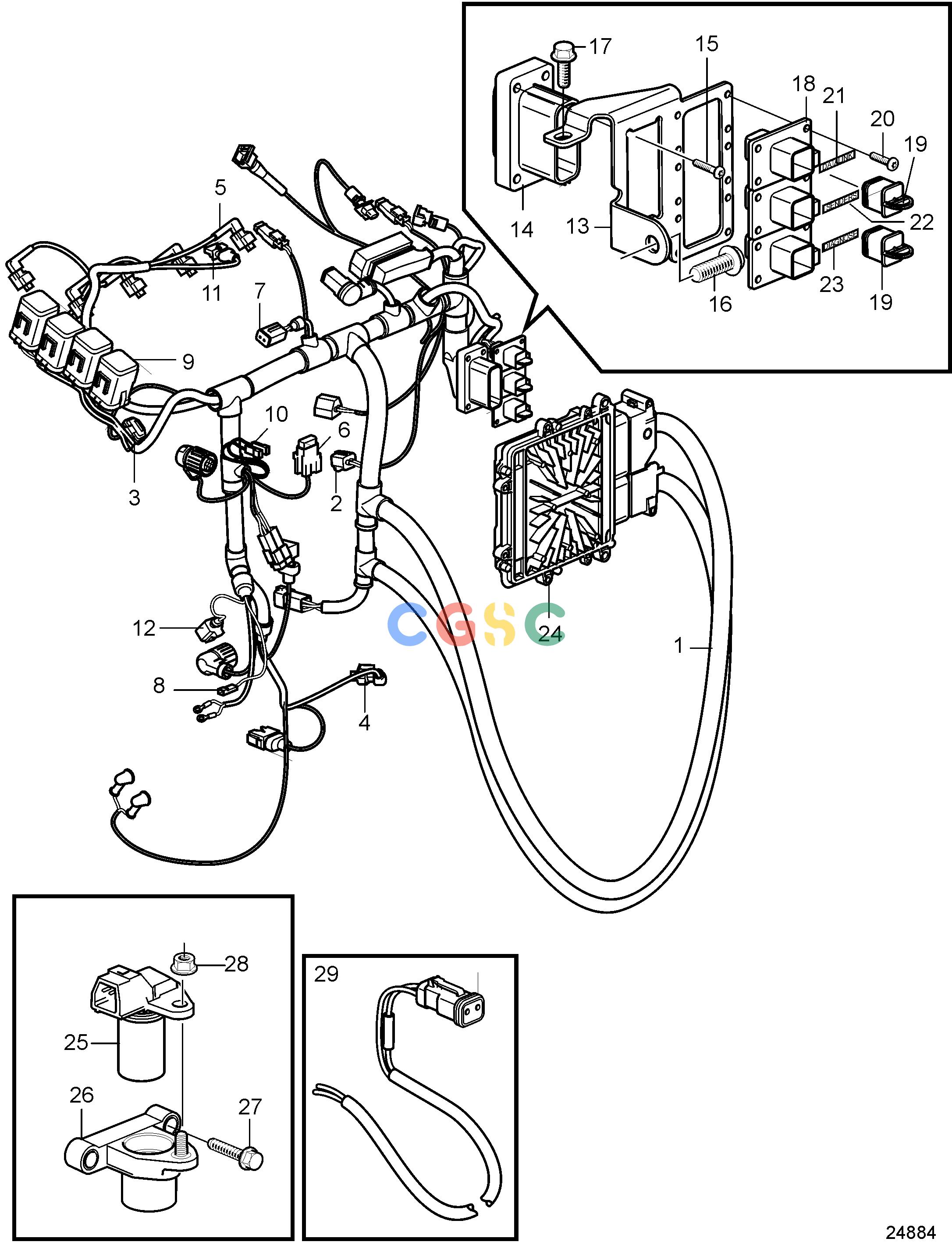

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Electrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
627 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21375785
|
[1] |
Wiring harness
|
Replaced by 21446505
|
| 1. |
21446505
|
[1] |
Wiring harness
|
Replaced by 21532247
|
| 1. |
21532247
|
[1] |
Wiring harness
|
|
| 2. |
9469830
|
[1] |
Receptacle housing
|
|
| 3. |
874455
|
[1] |
Receptacle housing
|
3-pole
|
| 4. |
874456
|
[1] |
Receptacle housing
|
4-pole
|
| 5. |
8622455
|
[1] |
Receptacle housing
|
3-pole, Marked Bosch.
|
| 6. |
873852
|
[1] |
Fuse holder
|
|
| 7. |
874957
|
[1] |
Housing
|
4-pole
|
| 8. |
949597
|
[1] |
Housing
|
1-Way.
|
| 9. |
21400091
|
[1] |
Relay
|
|
| 10. |
949597
|
[2] |
Housing
|
1-Way.
|
| 11. |
970753
|
[1] |
Housing
|
2-pole.
|
| 12. |
977929
|
[1] |
Housing
|
3-pole
|
| 13. |
21225475
|
[1] |
Bracket
|
|
| 14. |
992329
|
[1] |
Housing
|
|
| 15. |
969405
|
[4] |
Six point socket scr
|
M5x12mm
|
| 16. |
946671
|
[1] |
Flange screw
|
M8x30mm
|
| 17. |
946544
|
[1] |
Flange screw
|
M6x16mm
|
| 18. |
992330
|
[1] |
Housing
|
|
| 19. |
3840433
|
[2] |
Sealing plug
|
|
| 20. |
969278
|
[12] |
Six point socket scr
|
|
| 21. |
21243308
|
[1] |
Decal
|
Datalink
|
| 22. |
21227098
|
[1] |
Decal
|
Senders
|
| 23. |
21227096
|
[1] |
Decal
|
Diagnose
|
| 24. |
21092158
|
[1] |
Control unit
|
|
| 24. |
3586269
|
[1] |
Software
|
For warehouse programming
|
| 24. |
3586268
|
[1] |
Software
|
For Vodia programming
|
| 25. |
31331765
|
[1] |
Sensor
|
Mounted on Flywheel Housing
|
| 26. |
30637803
|
[1] |
Bracket
|
|
| 27. |
977814
|
[2] |
Flange screw
|
|
| 28. |
949278
|
[1] |
Flange lock nut
|
|
| 29. |
3840677
|
[1] |
Connection cable
|
For fire extinguishing equipment
|
