沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Electrical SystemMounting Parts, Extra GeneratorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
337 次

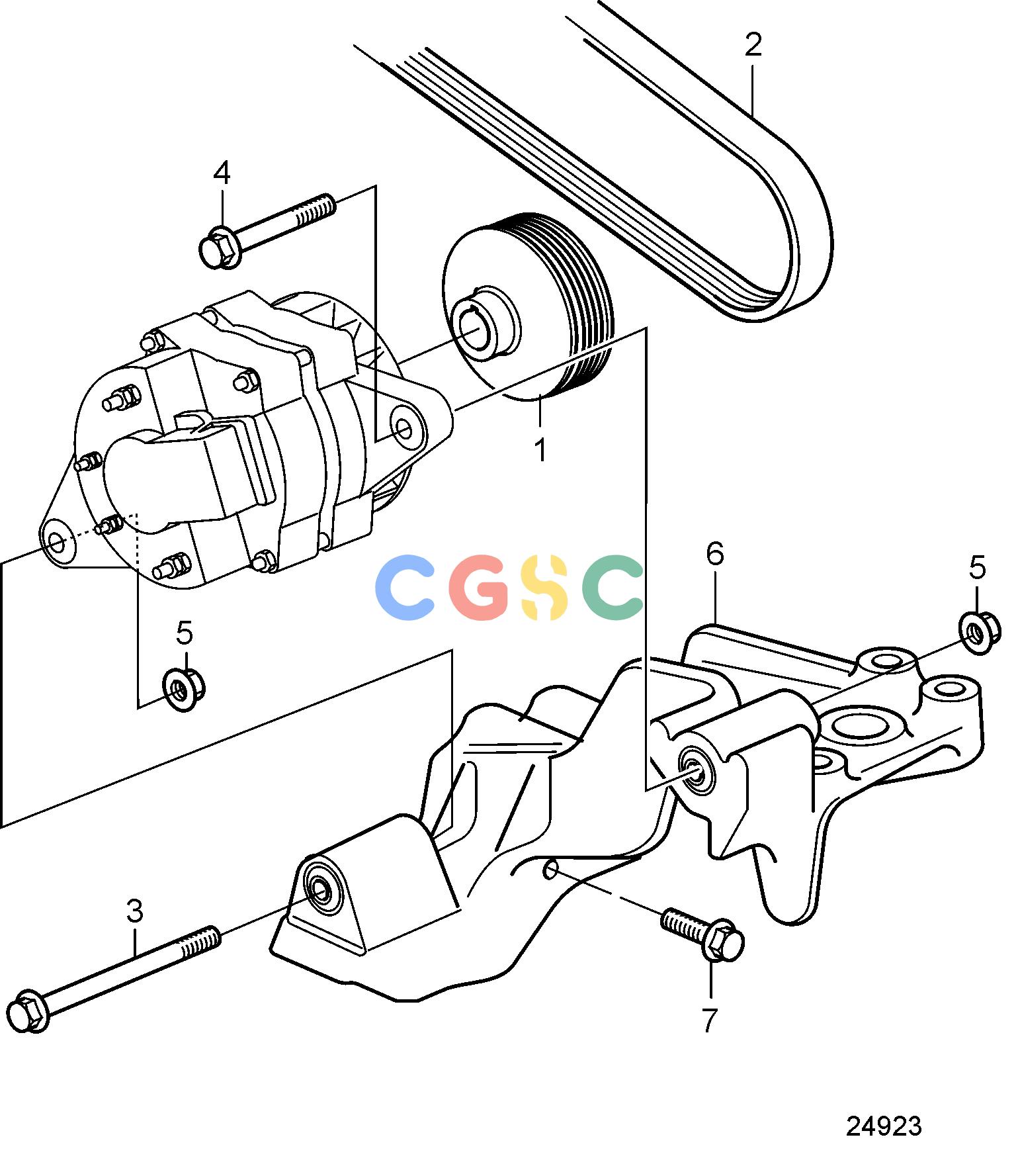

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21348063
|
[1] |
Pulley
|
|
| 2. |
22283751
|
[1] |
V-ribbed belt
|
|
| 3. |
978447
|
[1] |
Flange screw
|
M12x150mm
|
| 4. |
946474
|
[1] |
Flange screw
|
M12x120mm
|
| 5. |
971096
|
[2] |
Flange nut
|
|
| 6. |
21337445
|
[1] |
Engine bracket
|
Left, Replaced by 22905442
|
| 6. |
22905442
|
[1] |
Engine bracket
|
Left
|
| 7. |
984652
|
[3] |
Flange screw
|
M8x90mm
|
