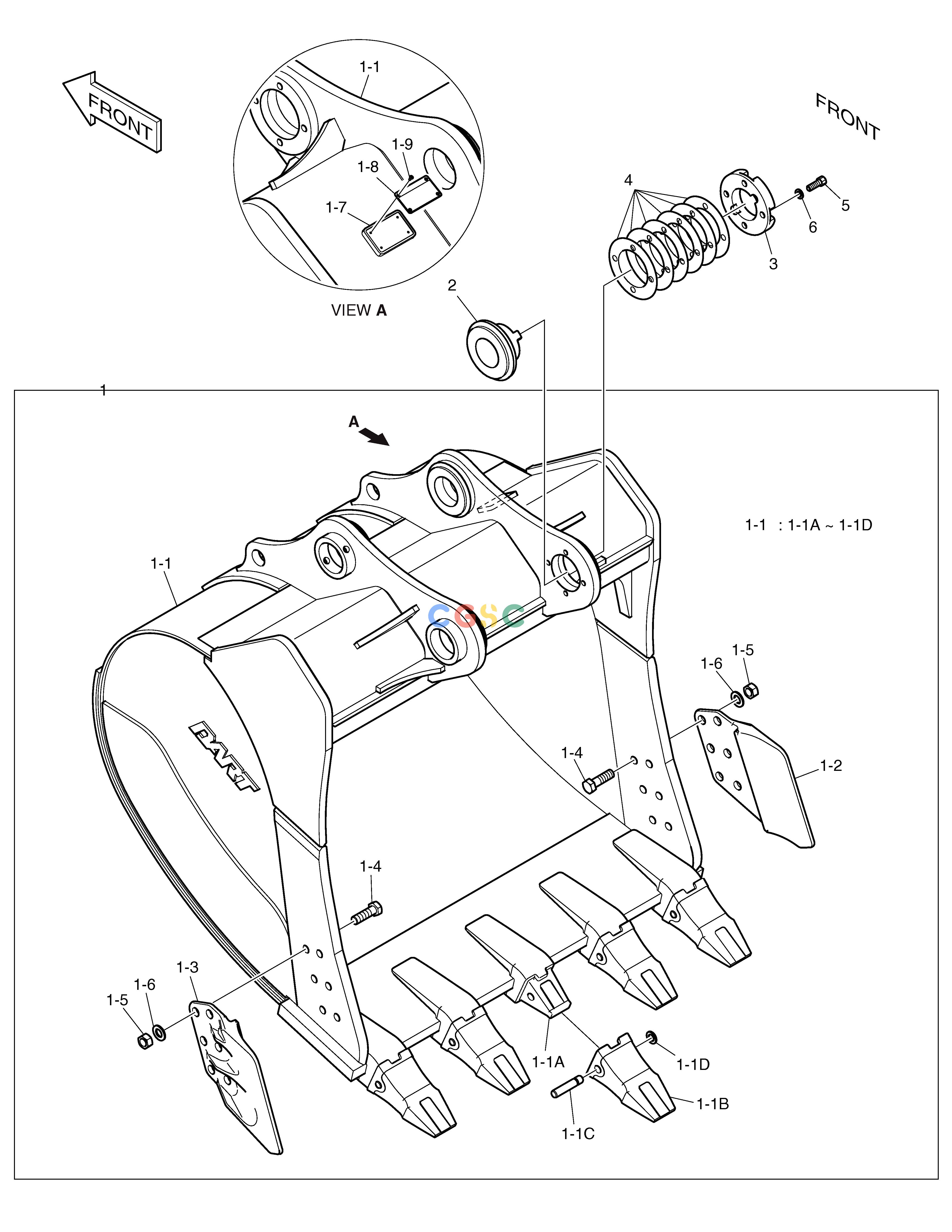

斗山零件查询BUCKET - 2.31㎥(66") - HEAVY DUTY DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
751 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230104-00901
|
[-] |
|
|
| 1. |
230104-00902B
|
[1] |
|
|
| 1-1. |
230104-00903
|
[1] |
|
|
| 1-1A. |
2713-1273A
|
[5] |
ADAPTER;TOOTH
|
|
| 1-1B. |
713-00028A
|
[5] |
POINT;TOOTH
|
|
| 1-1C. |
2705-1034
|
[5] |
PIN;LOCKING
|
|
| 1-1D. |
2114-1931
|
[5] |
WASHER;LOCKING
|
|
| 1-2. |
2713-1240
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 1-3. |
2713-1241
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 1-4. |
S0575061
|
[12] |
BOLT M24X3.0X85
|
|
| 1-5. |
S4013333
|
[12] |
. NUT
|
|
| 1-6. |
2114-1831A
|
[12] |
. WASHER
|
|
| 1-7. |
110913-00289A
|
[1] |
|
|
| 1-8. |
950209-04415A
|
[1] |
|
|
| 1-9. |
DS0501007
|
[4] |
|
|
| 2. |
K1004410
|
[1] |
BUSH;FLANGE
|
|
| 3. |
K1004367B
|
[1] |
STOPPER
|
|
| 4. |
K1013572
|
[6] |
SHIM
|
|
| 5. |
S2227866
|
[4] |
BOLT
|
|
| 6. |
K1014252
|
[4] |
WASHER;HARDEN
|
|
