沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Electrical SystemSOLASEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
847 次

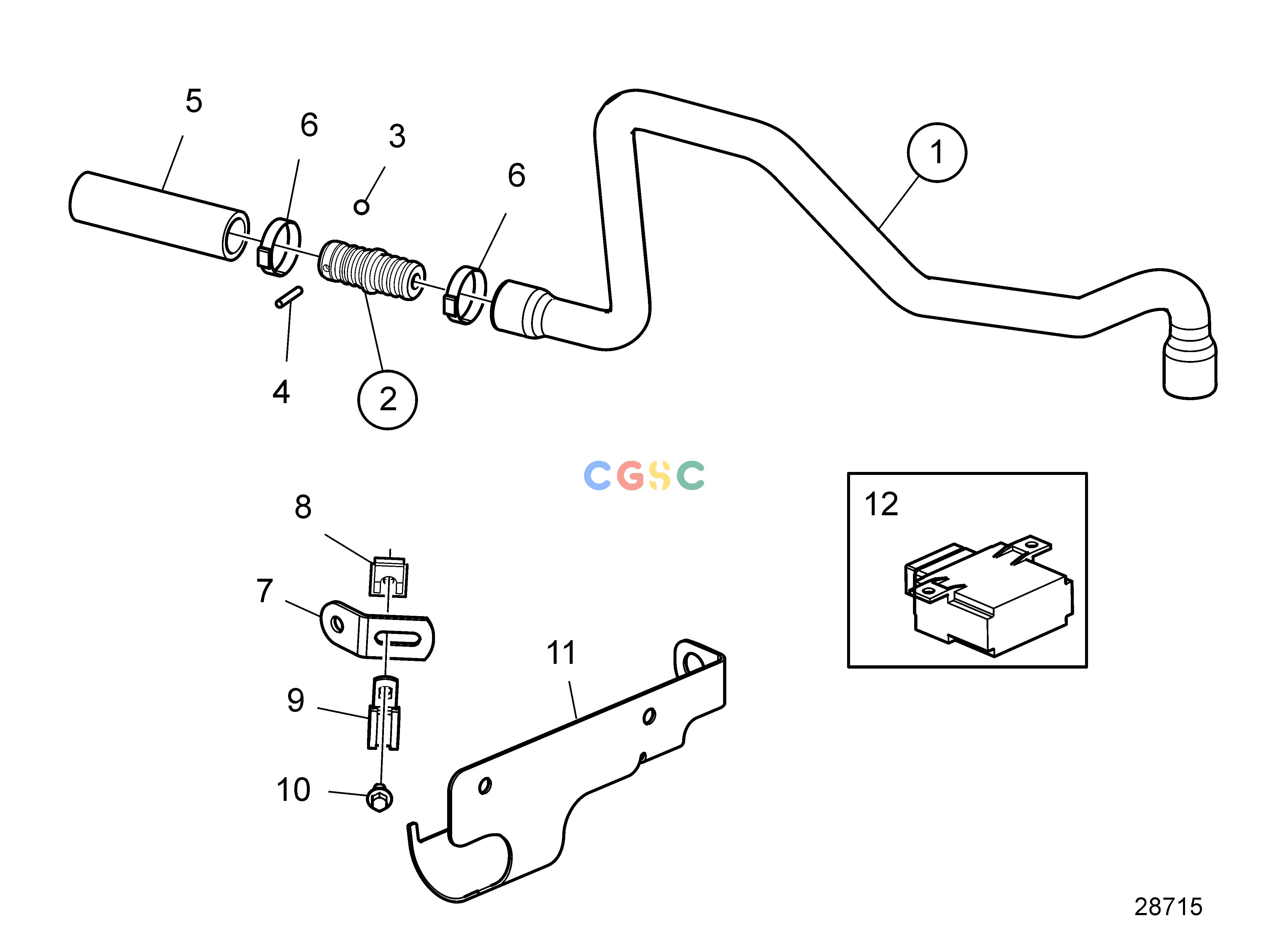

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21431754
|
[1] |
Hose
|
|
| 2. |
21227304
|
[1] |
Non-return valve
|
|
| 3. |
190297
|
[1] |
Ball
|
|
| 4. |
950517
|
[1] |
Pin
|
|
| 5. |
949995
|
[1] |
Hose
|
|
| 6. |
|
|
|
|
| 7. |
965570
|
[1] |
Bracket
|
|
| 8. |
1676515
|
[1] |
Spring nut
|
|
| 9. |
952627
|
[1] |
Clamp
|
|
| 10. |
984724
|
[1] |
Flange screw
|
|
| 11. |
22820119
|
[1] |
Bracket
|
|
| 12. |
873112
|
[1] |
Position sensor
|
|
