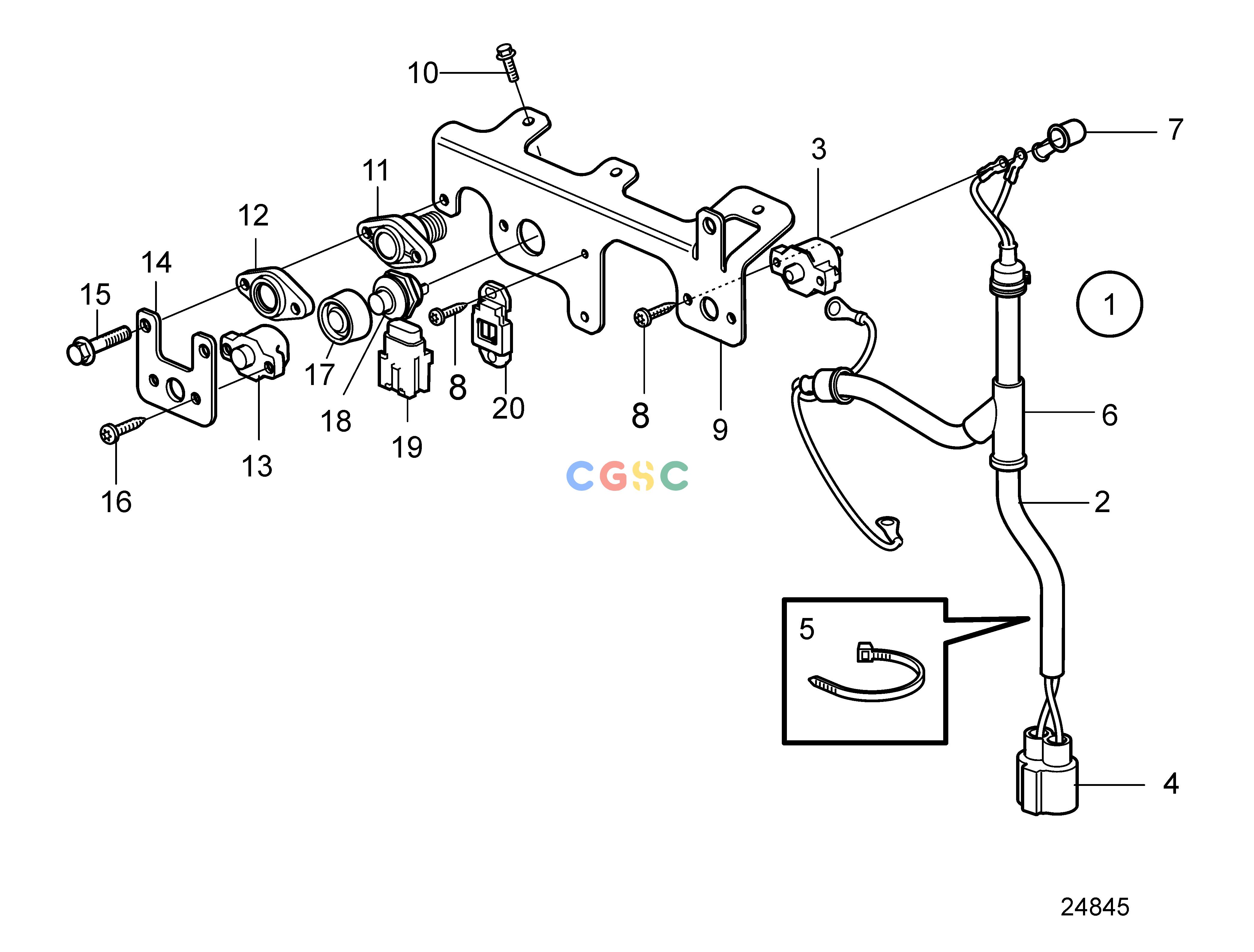

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Electrical SystemTrim SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
477 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21334583
|
[1] |
Wiring harness
|
|
| 2. |
21312722
|
[1] |
Wiring harness
|
|
| 3. |
3885972
|
[1] |
Automatic fuse
|
40AMP
|
| 4. |
3843097
|
[1] |
Connector
|
|
| 5. |
948211
|
[3] |
Cable tie
|
|
| 6. |
|
|
|
|
| 7. |
829200
|
[2] |
Protective cap
|
|
| 8. |
3853620
|
[2] |
Hexagon screw
|
|
| 9. |
21328042
|
[1] |
Bracket
|
|
| 10. |
946501
|
[3] |
Flange screw
|
M6x16mm
|
| 11. |
21847110
|
[1] |
Stop button
|
|
| 12. |
21738845
|
[1] |
Cover
|
|
| 13. |
856337
|
[1] |
Automatic fuse
|
SOLAS
|
| 14. |
22127605
|
[1] |
Bracket
|
SOLAS
|
| 15. |
946544
|
[2] |
Flange screw
|
SOLAS
|
| 16. |
3853620
|
[2] |
Hexagon screw
|
SOLAS
|
| 17. |
837533
|
[1] |
Rubber cap
|
|
| 18. |
843684
|
[1] |
Button
|
|
| 19. |
873852
|
[1] |
Fuse holder
|
|
| 20. |
873944
|
[1] |
Retainer
|
|
