纽荷兰零件查询(DC150PS) - CRAWLER DOZER (9.652[08]) - ROPS CAB - DOOR - OPTIONAL CODE 76076873 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
506 次

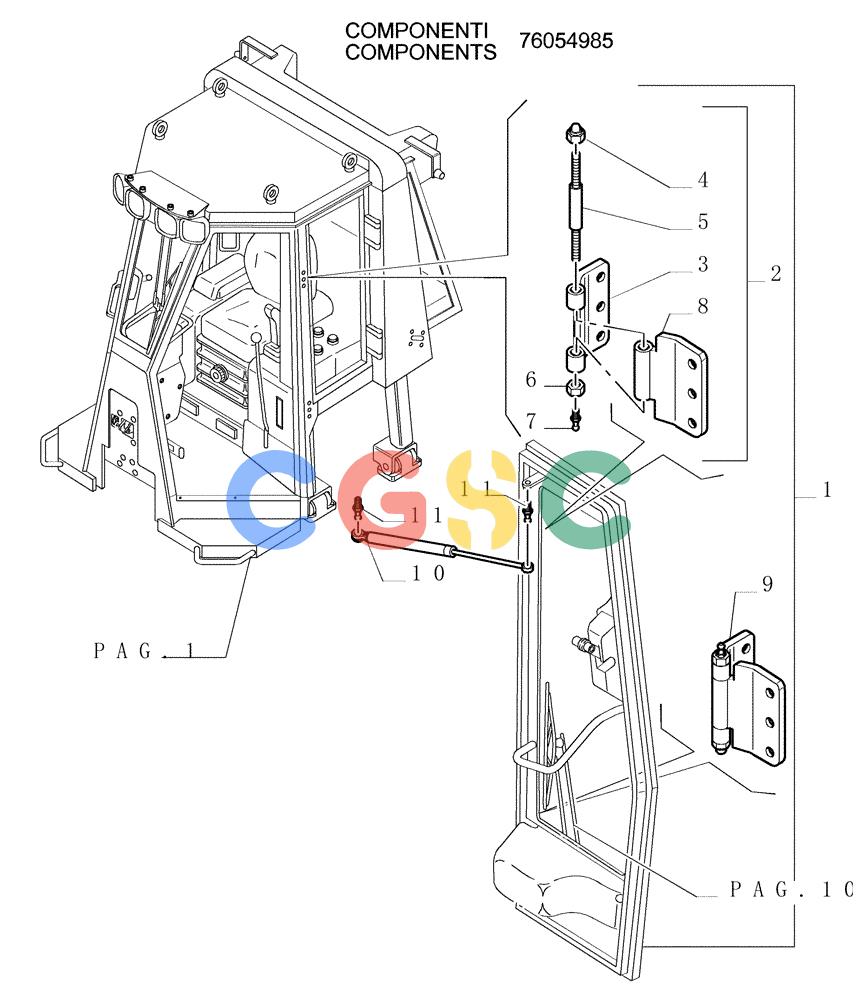

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067689 | [1] | - RIGHT ASSY SEE PAG.9 | |
| 1. | 76067690 | [1] | - LEFT ASSY SEE PAG.9 | |
| 2. | 76067602 | [2] | ASSY - UPPER | |
| 3. | 76067605 | [1] | - UPPER | |
| 4. | 14055811 | [1] | NUT | LEC12X1,75 |
| 5. | 76067139 | [1] | PIN | LEC |
| 6. | 11702911 | [1] | NUT,M12, Cl 8, ZND | LEC Superseded by part number: 17038425 |
| 7. | 76043510 | [1] | LUBE NIPPLE,M6 x 1 x 15 L | LEC Superseded by part number: 1491009 |
| 8. | 76067604 | [1] | | |
| 9. | 76067603 | [1] | - LOWER | |
| 10. | 76067417 | [2] | GAS STRUT | LEC- GAS F=300 L=485 C=200 Superseded by part number: 76067801 |
| 11. | 76067157 | [2] | BALL STUD | LECBALL PIN |
