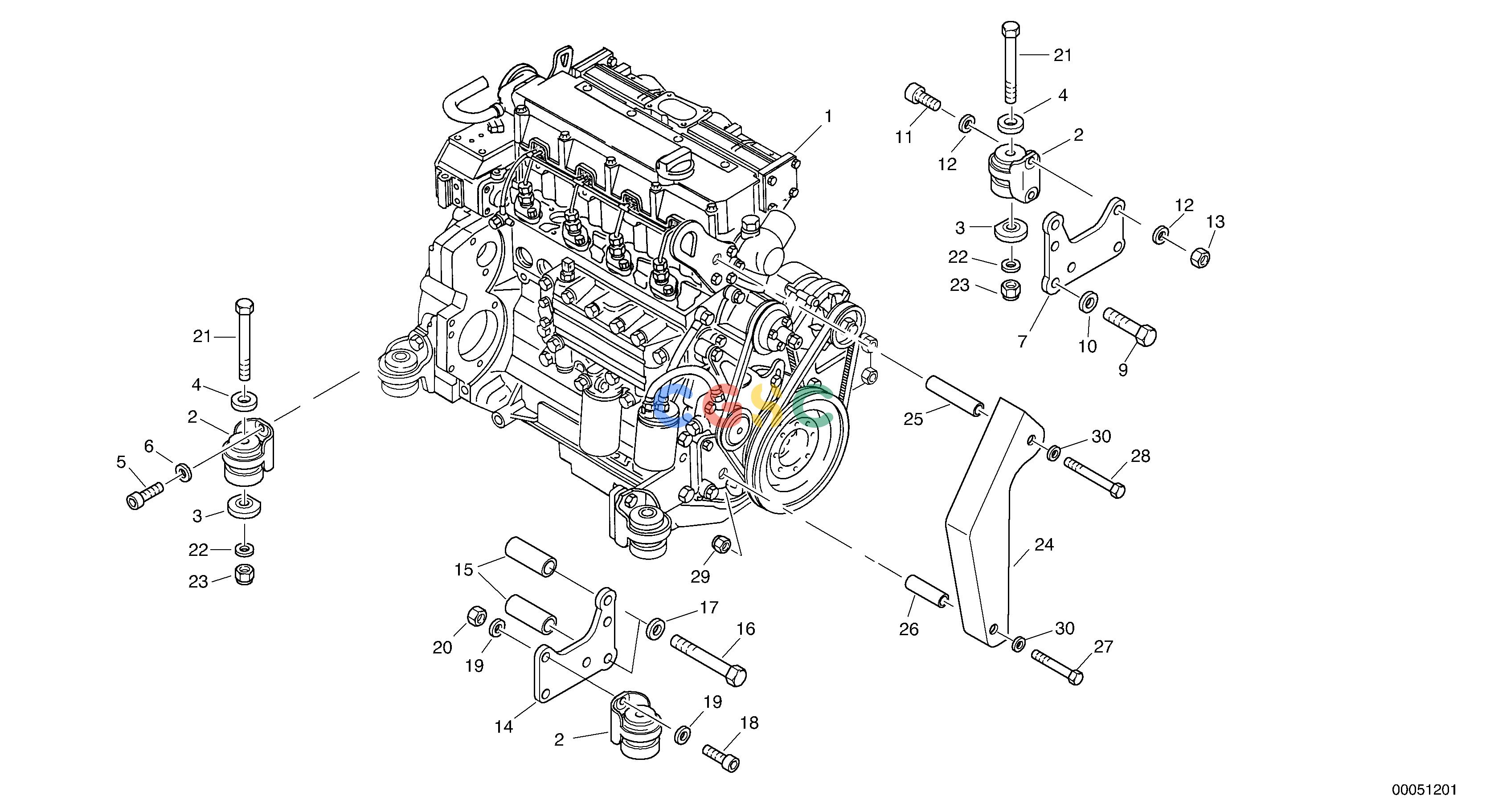

沃尔沃零件查询L45B Engine assyTYPE 194, 195 SER NO - 14991941001--1951001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
920 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
VOE20405606
|
[2] |
Washer
|
|
| 11. |
VOE997877
|
[2] |
Hex. socket screw
|
M12x35
|
| 12. |
ZM3067462
|
[4] |
Washer
|
|
| 13. |
VOE979019
|
[2] |
Hexagon nut
|
M12
|
| 14. |
VOE20723984
|
[1] |
Bracket
|
|
| 15. |
VOE20580517
|
[2] |
Bushing
|
|
| 16. |
VOE980465
|
[2] |
Hexagon screw
|
M16x110
|
| 17. |
VOE20405606
|
[2] |
Washer
|
|
| 18. |
VOE997877
|
[2] |
Hex. socket screw
|
M12x35
|
| 19. |
ZM3067462
|
[4] |
Washer
|
|
| 1. |
ZM2814015
|
[REQ] |
Engine
|
|
| 20. |
VOE979019
|
[2] |
Hexagon nut
|
M12
|
| 1. |
ZM2814014
|
[1] |
Engine
|
|
| 21. |
ZM7096609
|
[4] |
Tube
|
M12x130
|
| 22. |
ZM4333064
|
[4] |
Washer
|
13
|
| 23. |
ZM4334181
|
[4] |
Nut
|
VM12
|
| 24. |
ZM2816068
|
[1] |
Belt Protector
|
|
| 25. |
ZM2816069
|
[1] |
Tube
|
|
| 26. |
ZM2816066
|
[1] |
Pipe
|
|
| 27. |
ZM7095980
|
[1] |
Screw
|
M10x100
|
| 28. |
VOE11306529
|
[1] |
Hexagon screw
|
M10x175
|
| 29. |
VOE14370970
|
[1] |
Lock nut
|
M10
|
| 2. |
VOE20580444
|
[4] |
Engine Mounting
|
|
| 30. |
VOE930842
|
[2] |
Plain washer
|
10,5
|
| 3. |
ZM4056150
|
[4] |
Plate
|
24 mm hoch
|
| 4. |
VOE20580526
|
[4] |
Washer
|
|
| 5. |
VOE11306210
|
[4] |
Allen Head Screw
|
M12x30
|
| 6. |
ZM3067462
|
[4] |
Washer
|
|
| 7. |
VOE20405731
|
[1] |
Bracket
|
|
| 9. |
VOE20535027
|
[2] |
Screw
|
|
