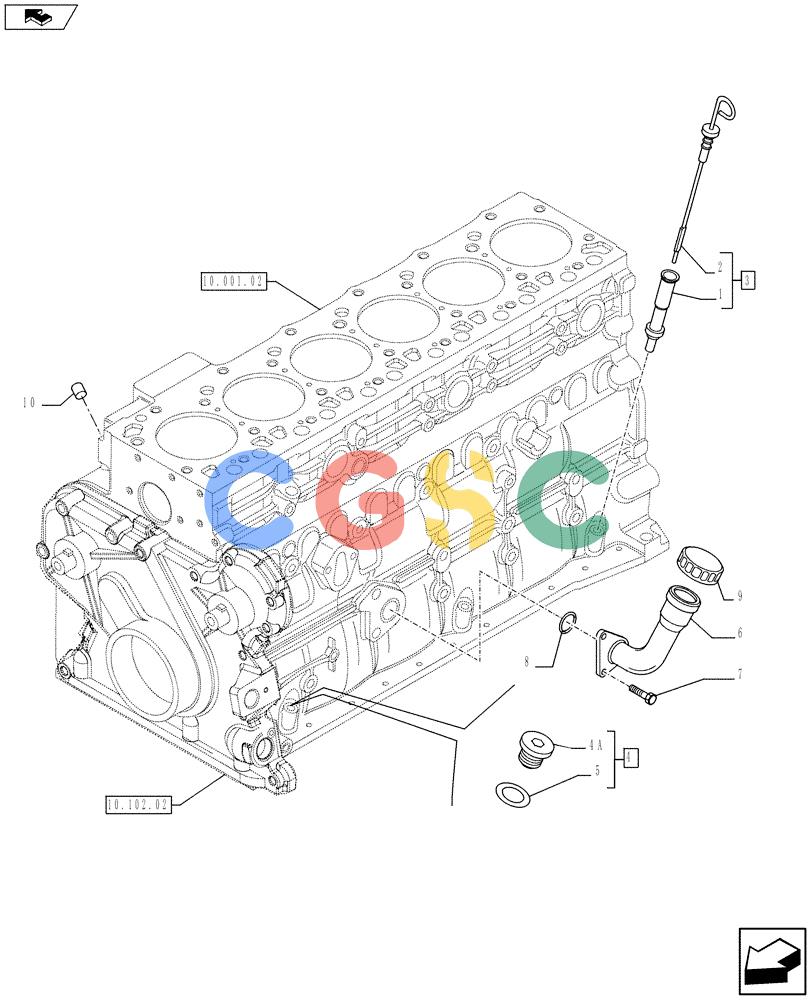

神钢零件查询(F4GE9684C J602) - ENGINE 5801385852 - 84369829 (1/13-) (10.304.01[01]) - ENGINE OIL DIPSTICK Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
956 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | 2853329 | [1] | - Asst Contains Ref.1, 2 | |
| 4. | 4897330 | [1] | HEX SOCKET PLUG,M12 x 1.5 | TOR- Assy Contains Ref.4A, 5 |
| 4A. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 5. | 4895610 | [1] | O-RING,2.2mm Thk x 9.3mm ID | TOR |
| 7. | 2852134 | [2] | FLANGE BOLT,Hex, M12 x 1.75 x 25mm | TOR Superseded by part number: 16677735 |
| 9. | 2852136 | [1] | CAP,48mm ID x 56mm OD x 18mm W | TOR Superseded by part number: |
| 10. | 4895406 | [3] | EXPANSION PLUG,9.8mm OD | TOR |
