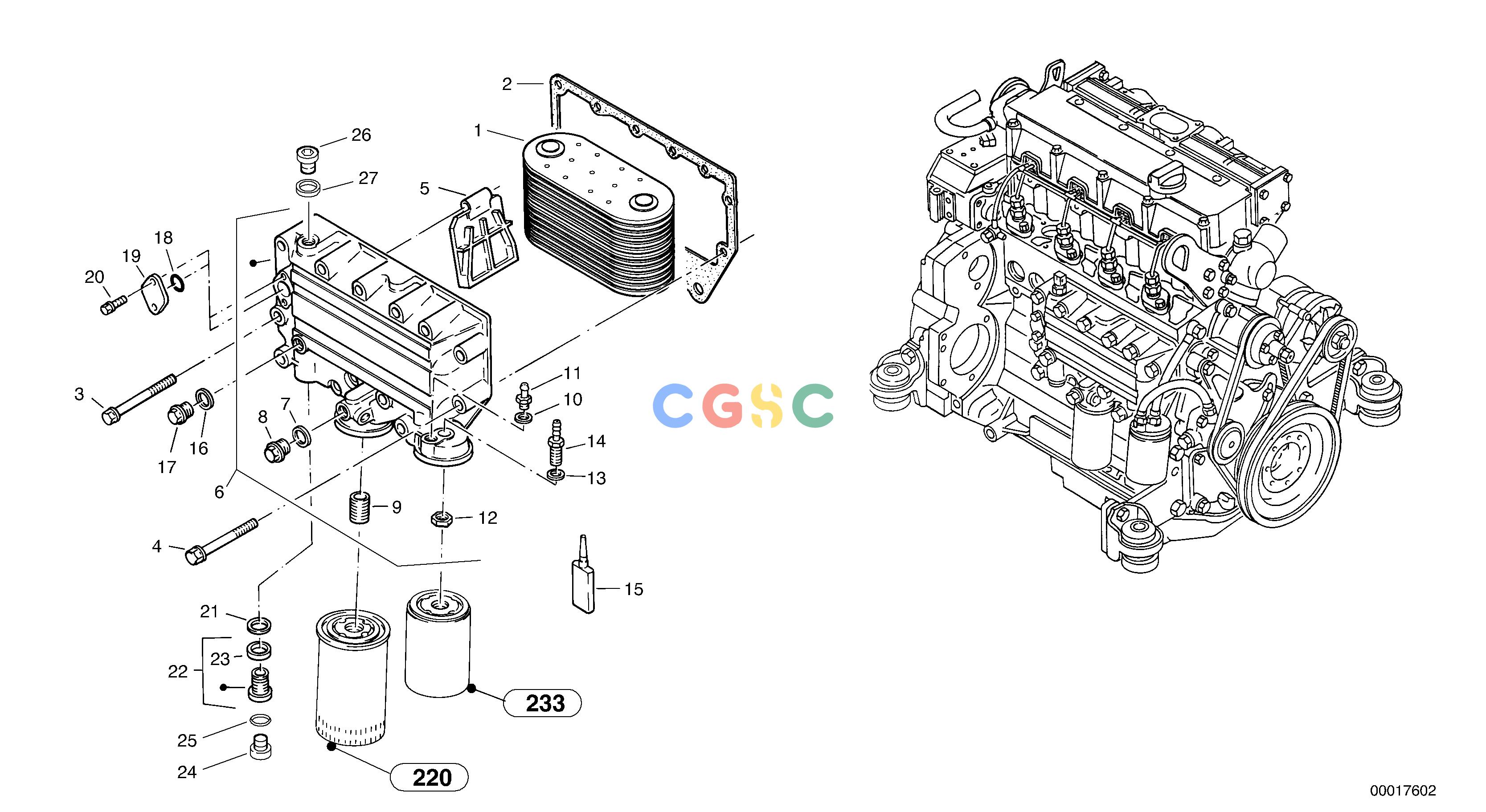

沃尔沃零件查询L45B Engine - oil coolerTYPE 194, 195 SER NO - 14991941001--1951001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
747 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20715675
|
[1] |
Oil Cooler
|
|
| 10. |
ZM7099503
|
[1] |
Seal
|
A14x18
|
| 11. |
VOE20405767
|
[1] |
Hose nipple
|
|
| 12. |
ZM7098041
|
[1] |
Nut
|
M16x1,5
|
| 13. |
VOE13947622
|
[1] |
Plane gasket
|
A16x20
|
| 14. |
VOE20492602
|
[1] |
Sleeve
|
|
| 15. |
VOE20464471
|
[REQ] |
Locking fluid
|
|
| 16. |
ZM8099572
|
[1] |
Gasket
|
A18x22
|
| 17. |
ZM20405506
|
[1] |
Screw plug
|
M18x1,5
|
| 18. |
ZM20405599
|
[1] |
O-ring
|
|
| 19. |
VOE11700609
|
[1] |
Cover
|
|
| 2. |
VOE20405747
|
[1] |
Gasket
|
|
| 20. |
VOE20460241
|
[2] |
Screw
|
|
| 21. |
VOE13947628
|
[2] |
Plane gasket
|
A26x31
|
| 22. |
VOE20405752
|
[2] |
Screw
|
|
| 23. |
VOE20405569
|
[2] |
Seal
|
|
| 24. |
VOE20549897
|
[2] |
Plug
|
|
| 25. |
VOE20405578
|
[2] |
Sealing ring
|
|
| 26. |
ZM2908409
|
[2] |
Lock Plug
|
M26x1,5
|
| 27. |
VOE13947628
|
[2] |
Plane gasket
|
A26x31
|
| 3. |
VOE996812
|
[10] |
Flange screw
|
|
| 4. |
VOE20405672
|
[3] |
Screw
|
|
| 5. |
VOE20405744
|
[1] |
Shut off flap
|
|
| 6. |
VOE20485258
|
[1] |
Housing
|
|
| 7. |
VOE13947281
|
[1] |
Gasket
|
A10x13,5
|
| 8. |
VOE20460239
|
[1] |
Plug
|
CM10x1
|
| 9. |
VOE20405758
|
[1] |
Bushing
|
|
