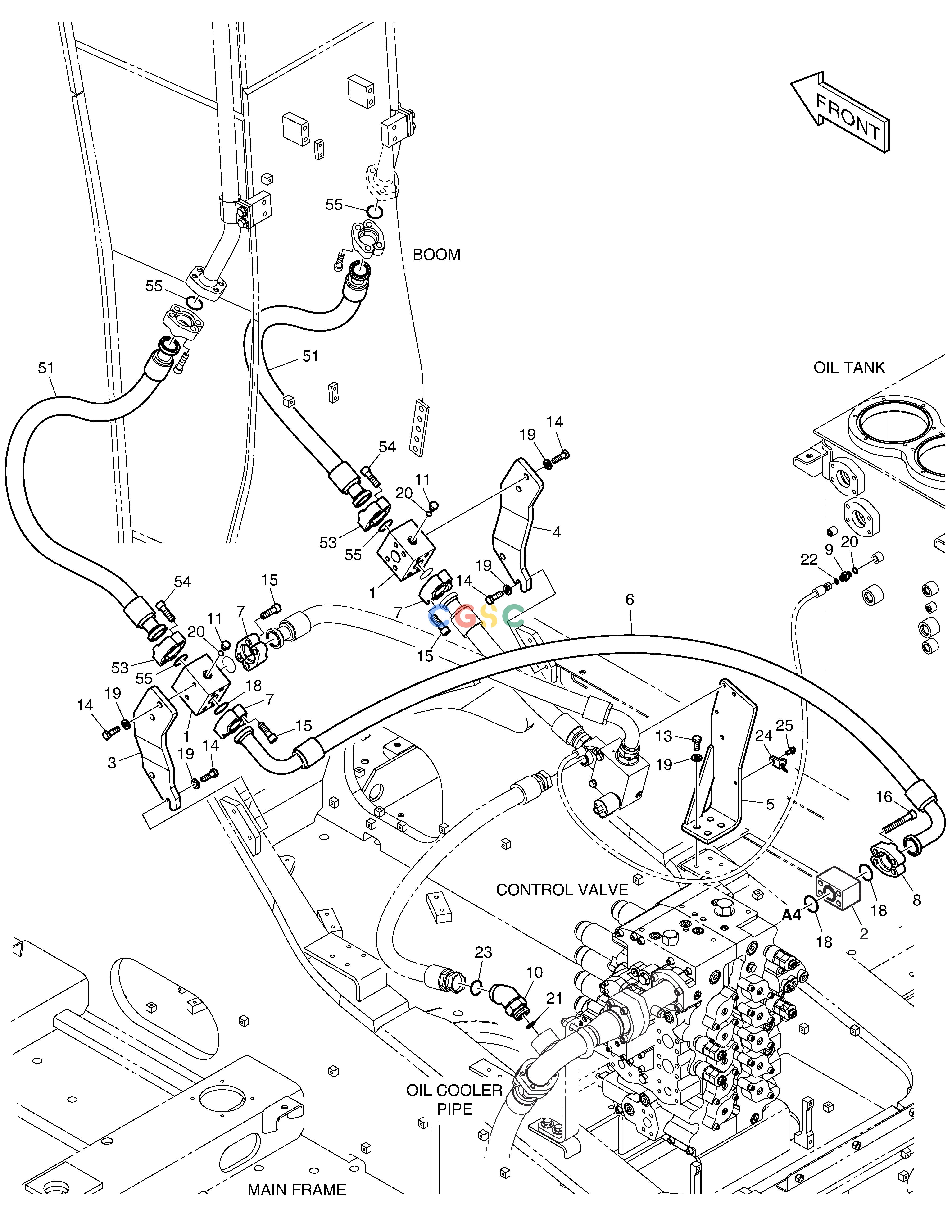

斗山零件查询MAIN PIPING - ONE & TWO WAY DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
727 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08488
|
[-] |
|
|
| 1. |
100201-02141
|
[2] |
|
|
| 10. |
2181-2816D3
|
[1] |
ELBOW
|
|
| 11. |
2181-1950D1
|
[2] |
PLUG
|
|
| 13. |
S0515266
|
[4] |
BOLT
|
|
| 14. |
S0515466
|
[8] |
BOLT
|
|
| 15. |
S2218566
|
[12] |
BOLT;SOCKET
|
|
| 16. |
S2219866
|
[4] |
BOLT
|
|
| 18. |
2180-1026D23
|
[3] |
O-RING
|
|
| 19. |
4114-1792A
|
[12] |
WASHER
|
|
| 2. |
K1002748
|
[1] |
BLOCK;SPACER
|
|
| 20. |
S8000111
|
[3] |
O-RING
|
|
| 21. |
S8000381
|
[1] |
O-RING
|
|
| 22. |
S8030041
|
[1] |
O-RING
|
|
| 23. |
S8030201
|
[1] |
|
|
| 24. |
120402-00440
|
[1] |
CLIP
|
|
| 25. |
120106-00596
|
[1] |
BOLT
|
|
| 3. |
110420-00304C
|
[1] |
|
|
| 4. |
110420-00305B
|
[1] |
|
|
| 5. |
110425-00105B
|
[1] |
|
|
| 51. |
DS2038425
|
[2] |
|
|
| 53. |
2181-9086
|
[4] |
FLANGE;SPLIT
|
|
| 54. |
S2218566
|
[8] |
BOLT;SOCKET
|
|
| 55. |
2180-1026D23
|
[4] |
O-RING
|
|
| 6. |
DS2045718
|
[1] |
|
|
| 7. |
2181-9086
|
[6] |
FLANGE;SPLIT
|
|
| 8. |
K1014858
|
[2] |
FLANGE;SPLIT
|
|
| 9. |
2181-4133D1
|
[1] |
ADAPTER
|
|
