纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (6.782[03]) - TRADE MARK - VERSION (03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
928 次

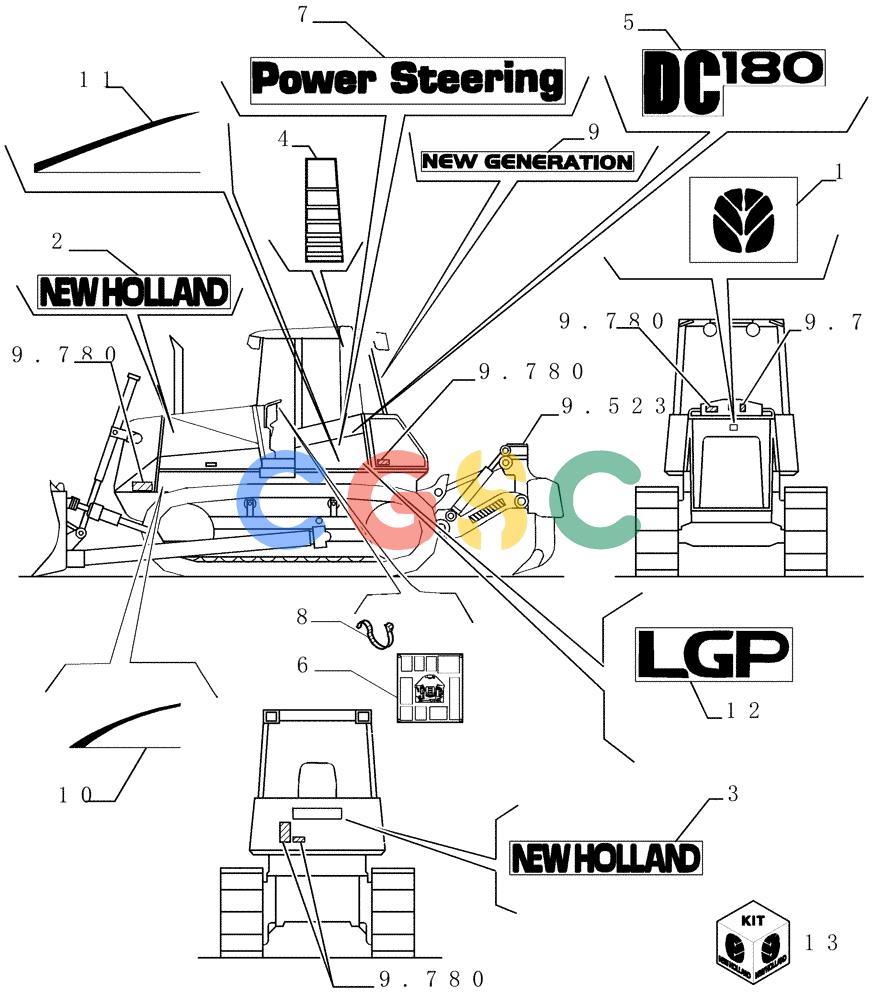

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76069768 | [1] | DEALERSHIP IDENTITY LOGO | TOR- FRONT |
| 2. | 76069710 | [2] | MAKERS BADGE | TOR- SIDE |
| 3. | 76069712 | [1] | MAKERS BADGE | TOR- REAR |
| 4. | 76073320 | [1] | DECAL | TOR- SIDE LEFT |
| 4. | 76073321 | [1] | DECAL | TOR- SIDE RIGHT |
| 5. | 76069711 | [2] | TYPE PLATE | TOR- SIDE |
| 6. | 76069779 | [1] | IDENTITY PLATE | LEC |
| 7. | 76073319 | [2] | DECAL | TOR |
| 8. | 79013422 | [1] | CABLE TIE,145mm L | LECSTRAP, CABLE, 145mm L |
| 9. | 76069739 | [2] | MAKERS BADGE | TOR- BRAND MARKS |
| 10. | 76069713 | [1] | DECAL | TOR- LEFT |
| 10. | 76069732 | [1] | DECAL | TOR |
| 11. | 76069734 | [1] | DECAL | TOR |
| 11. | 76069735 | [1] | DECAL | TOR |
| 12. | 76073330 | [2] | DECAL | TOR |
| 13. | 76073347 | [1] | DECAL KIT | NH Superseded by part number: 76069711, 76069768, 76069734, 76073320, 76073319, 76069710, 76069735, 76069779, 76069739, 76069732, 76069713, 76073321, 76069712, 76073330 |
