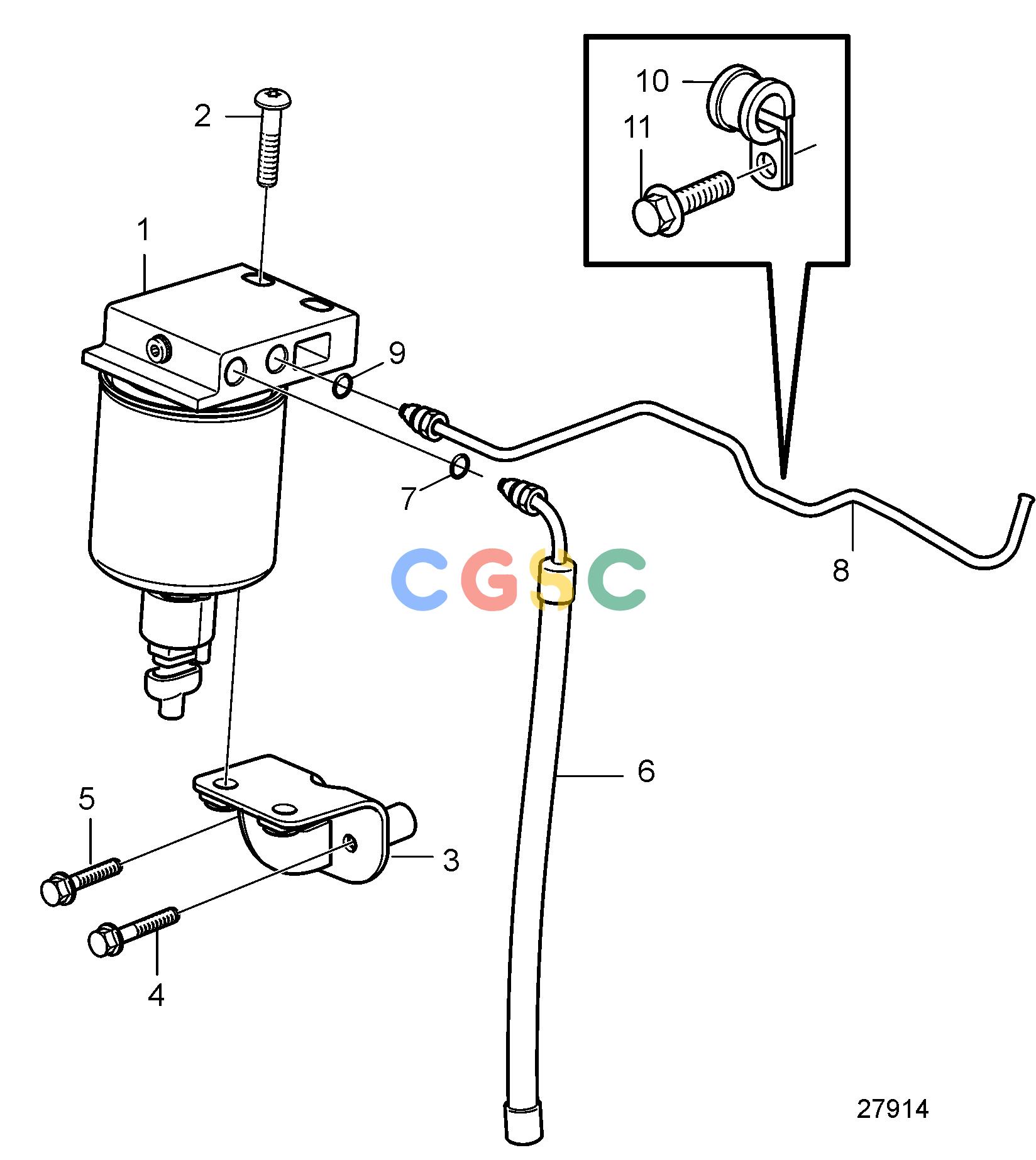

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Fuel SystemFuel Filter, Connecting PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
521 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7749500_026
|
|
Filter, complete
|
|
| 2. |
969544
|
[2] |
Six point socket scr
|
|
| 3. |
21184378
|
[1] |
Bracket
|
|
| 4. |
968168
|
[1] |
Flange screw
|
|
| 5. |
965179
|
[1] |
Flange screw
|
|
| 6. |
7749500_025
|
|
Hose
|
|
| 7. |
976011
|
[2] |
O-ring
|
|
| 8. |
7749500_028
|
|
Fuel pipe
|
|
| 9. |
976011
|
[1] |
O-ring
|
|
| 10. |
952624
|
[1] |
Clamp
|
|
| 11. |
946501
|
[1] |
Flange screw
|
|
