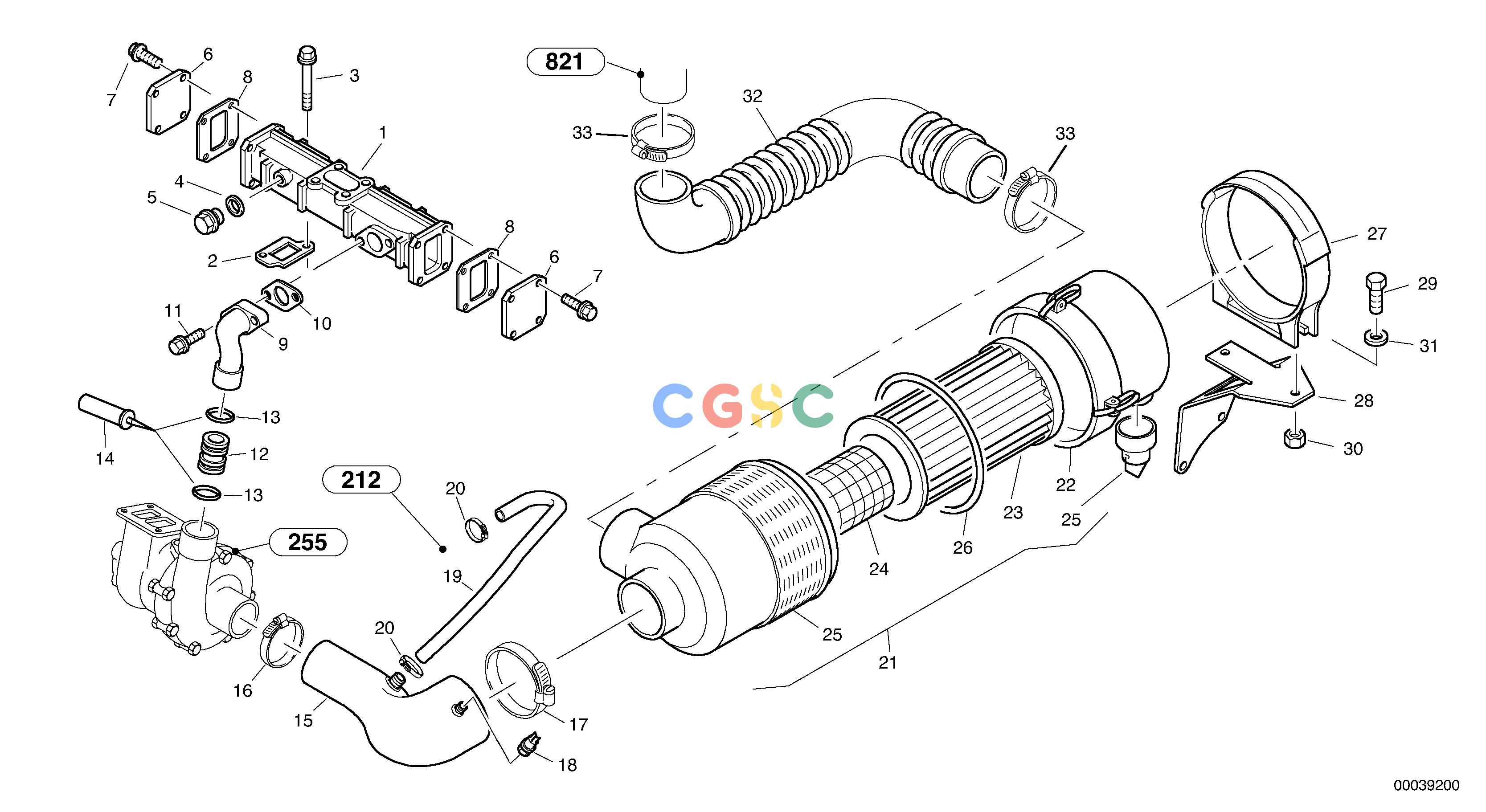

沃尔沃零件查询L45B Suction system, filterTYPE 194, 195 SER NO - 14991941001--1951001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
367 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20735825
|
[1] |
Inlet Manifold
|
|
| 2. |
VOE21815267
|
[4] |
Gasket
|
|
| 3. |
VOE22278501
|
[8] |
Hexagon screw
|
M6x95
|
| 4. |
ZM8099411
|
[1] |
Screw
|
M14x1,5
|
| 5. |
ZM7099503
|
[1] |
Seal
|
A14x18
|
| 6. |
ZM2903945
|
[1] |
Cover
|
|
| 7. |
VOE20460241
|
[4] |
Screw
|
|
| 8. |
VOE20451009
|
[1] |
Gasket
|
|
| 9. |
ZM2908416
|
[1] |
Charge Air Pipe
|
|
| 10. |
VOE20405621
|
[1] |
Gasket
|
|
| 11. |
VOE20412324
|
[2] |
Screw
|
|
| 12. |
VOE20405616
|
[1] |
Adapter
|
|
| 13. |
VOE20405536
|
[2] |
Sealing ring
|
|
| 14. |
ZM2908414
|
[REQ] |
Gasket compound
|
|
| 15. |
VOE11305746
|
[1] |
Air hose
|
-1941207/-1951422
|
| 15. |
VOE11305858
|
[1] |
Air hose
|
1941208-/1951423-
|
| 16. |
ZM2060784
|
[1] |
Clip
|
AS50-70
-1941207/-1951422
|
| 16. |
VOE943481
|
[1] |
Hose clamp
|
AS70-90
1941208-/1951423-
|
| 17. |
VOE943483
|
[1] |
Hose clamp
|
AS90-110
-1941207/-1951422
|
| 17. |
VOE943484
|
[1] |
Hose clamp
|
AS110-130
1941208-/1951423-
|
| 18. |
VOE11306606
|
[1] |
Switch
|
|
| 19. |
ZM2814631
|
[1] |
Hose
|
|
| 20. |
ZM2060782
|
[2] |
Clip
|
AS20-32
|
| 21. |
ZM2811089
|
[1] |
Air filter
|
|
| 22. |
ZM2908236
|
[1] |
Housing-under part
|
|
| 23. |
ZM2908237
|
[1] |
Main element
|
|
| 24. |
ZM2908238
|
[1] |
Safety cartridge
|
|
| 25. |
ZM2061390
|
[1] |
Dust discharge valve
|
|
| 26. |
ZM2908239
|
[1] |
Ring
|
|
| 27. |
ZM2811084
|
[1] |
Holder
|
|
| 28. |
ZM2815867
|
[1] |
Member
|
|
| 29. |
VOE983244
|
[2] |
Hexagon screw
|
M8x30
|
| 30. |
ZM8098397
|
[2] |
Nut
|
M8
|
| 31. |
ZM7098750
|
[2] |
Washer
|
B 8,4
|
| 32. |
ZM2814634
|
[1] |
Air hose
|
|
| 33. |
VOE943483
|
[2] |
Hose clamp
|
|
