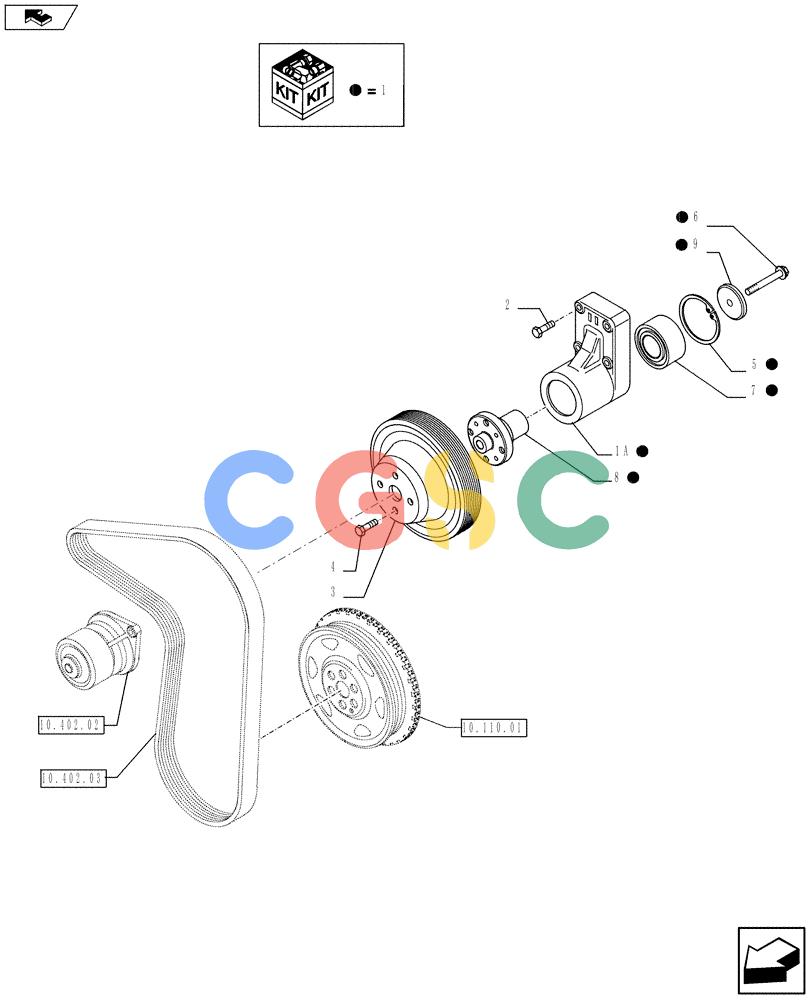

神钢零件查询(F4GE9684C J602) - ENGINE 5801385852 - 84369829 (1/13-) (10.414.01) - FAN DRIVE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
807 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1A. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 2. | 4899053 | [4] | SCREW,Hex Flg, M8 x 45 | TOR |
| 4. | 4895291 | [4] | SCREW,Hex Flg, M10 x 1.5 x 20 | TOR |
| 5. | 2852171 | [1] | SNAP RING | TOR Superseded by part number: 32324 |
| 6. | 2852172 | [1] | BOLT,Flng, M10 x 1.5 x 70mm | TOR Superseded by part number: 16676834 |
| 7. | 2859567 | [1] | BALL BEARING | TOR Superseded by part number: 4892732 |
| 8. | 4892426 | [1] | HUB | TOR |
| 9. | 4890732 | [1] | RETAINER,11.50mm ID x 52mm OD x 7mm | TOR |
