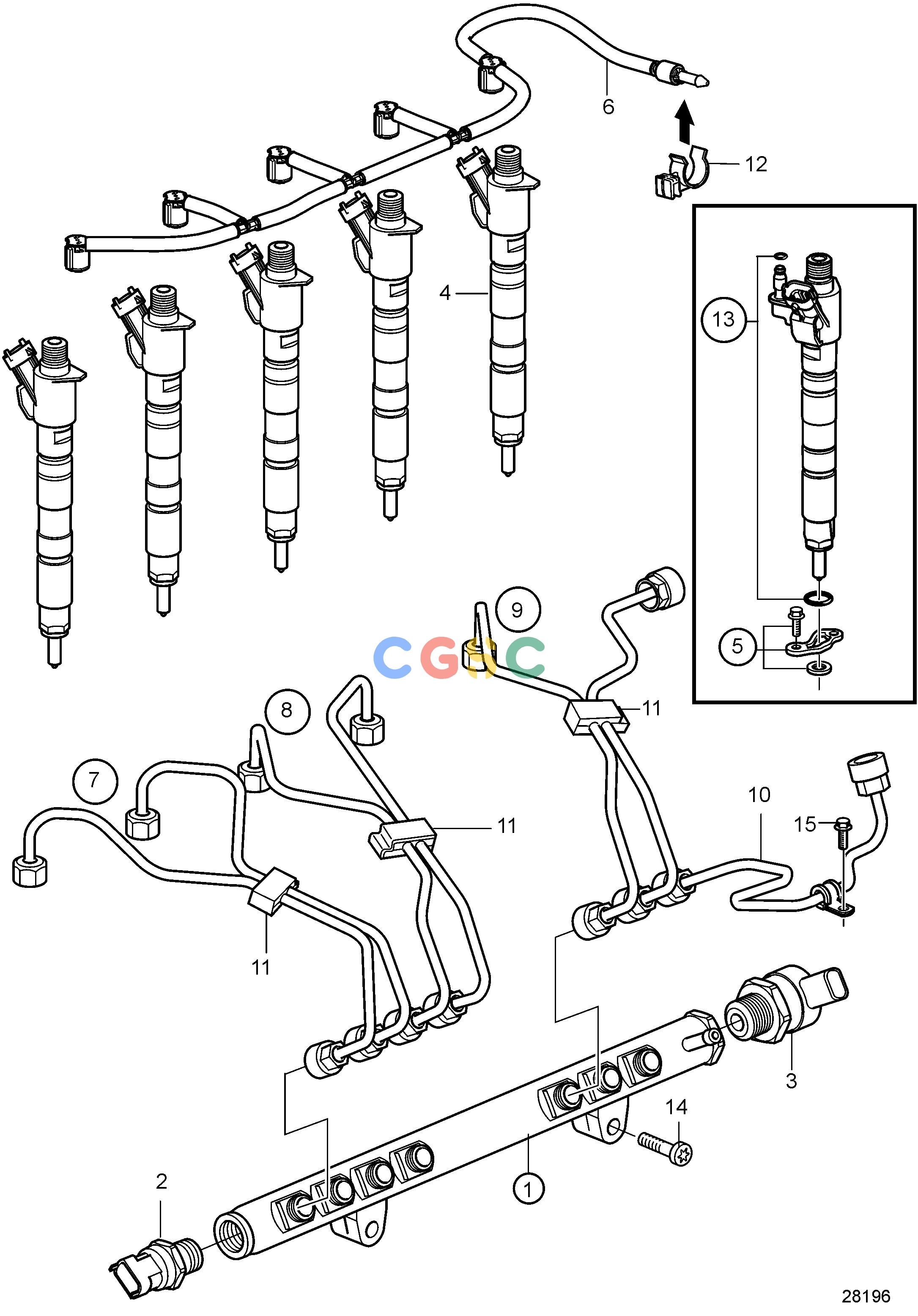

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Fuel SystemFuel Injector and Delivery PipesEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
933 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30777759
|
[1] |
Distribution pipe
|
|
| 2. |
30787950
|
[1] |
Pressure sensor
|
|
| 3. |
31216313
|
[1] |
Control valve
|
|
| 4. |
3801385
|
[5] |
Injector
|
|
| 5. |
31272772
|
[1] |
Retaining clamp
|
|
| 6. |
31321198
|
[1] |
Fuel hose
|
|
| 7. |
31251172
|
[1] |
Delivery pipe
|
Cylinder 1, Cylinder 2
|
| 8. |
31251173
|
[1] |
Delivery pipe
|
Cylinder 3, Cylinder 4
|
| 9. |
31251174
|
[1] |
Delivery pipe
|
Cylinder 5, Fuel pump
|
| 10. |
31251175
|
[1] |
Delivery pipe
|
Fuel pump
|
| 11. |
30677792
|
[3] |
Clip
|
|
| 12. |
31321272
|
[1] |
Clip
|
|
| 13. |
31272771
|
[1] |
O-ring kit
|
|
| 14. |
994441
|
[2] |
Flange screw
|
M8x50mm
|
| 15. |
946671
|
[1] |
Flange screw
|
|
