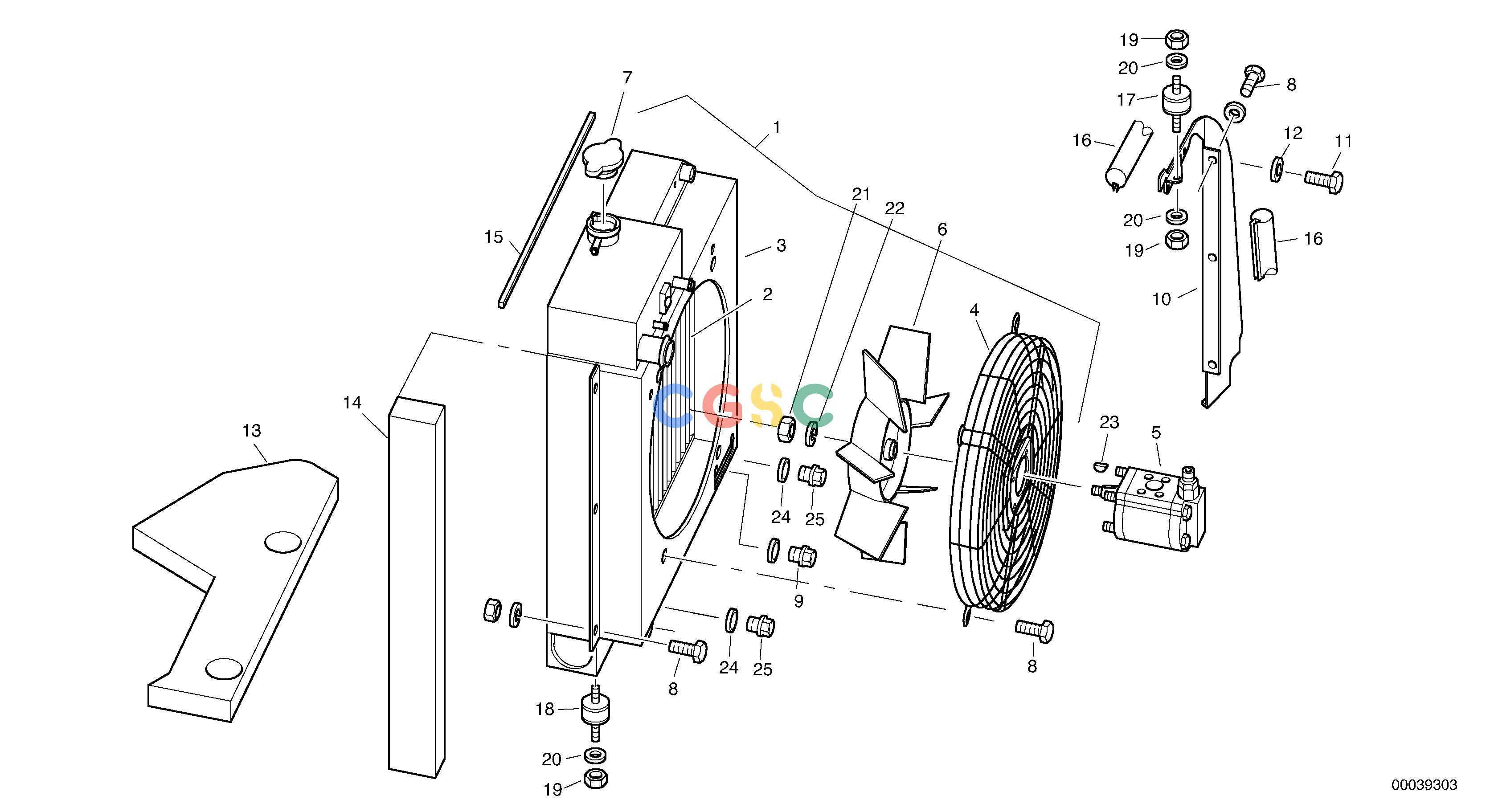

沃尔沃零件查询L45B Cooler with attaching partsTYPE 194, 195 SER NO - 14991941001--1951001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
862 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2814020
|
[1] |
Oil cooler
|
|
| 10. |
ZM2815002
|
[1] |
End plate
|
|
| 11. |
ZM7095370
|
[2] |
Screw
|
M8x16
|
| 12. |
VOE11305837
|
[2] |
Washer
|
B 8,4
|
| 13. |
ZM2813965
|
[1] |
Damper mat
|
|
| 14. |
ZM2813966
|
[1] |
Damping material
|
|
| 15. |
ZM2813964
|
[1] |
Sealing strip
|
L = 500MM
|
| 16. |
VOE15072320
|
[1] |
Sealing moulding
|
L = 1300MM
|
| 17. |
ZM2805283
|
[1] |
Buffer
|
|
| 18. |
ZM2811226
|
[2] |
Buffer
|
|
| 19. |
ZM7098002
|
[4] |
Nut
|
M10
|
| 2. |
ZM2908276
|
[1] |
Oil cooling agent cooler
|
|
| 20. |
VOE930842
|
[4] |
Plain washer
|
10,5
|
| 21. |
ZM7098064
|
[1] |
Nut
|
BM12x1,5
|
| 22. |
VOE11306826
|
[1] |
Spring ring
|
A12
|
| 23. |
ZM5226861
|
[1] |
Woodruff key
|
3x5
|
| 24. |
ZM8099572
|
[2] |
Gasket
|
A18x22
|
| 25. |
VOE20405506
|
[2] |
Plug
|
M18x1,5
|
| 3. |
ZM2908277
|
[1] |
Fan hood
|
|
| 4. |
ZM2908278
|
[1] |
Protecting grating
|
|
| 5. |
ZM2814930
|
[1] |
Hydraulic motor
|
|
| 6. |
ZM2908280
|
[1] |
Blower
|
|
| 7. |
ZM2291199
|
[1] |
Filler cap
|
|
| 8. |
VOE983243
|
[11] |
Hexagon screw
|
M8x25
|
| 9. |
ZM8099411
|
[1] |
Screw
|
M14x1,5
|
