纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.348[01]) - SALT CHAIN - SHOES (L=560 MM) - OPTIONAL CODE 784112031 - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
609 次

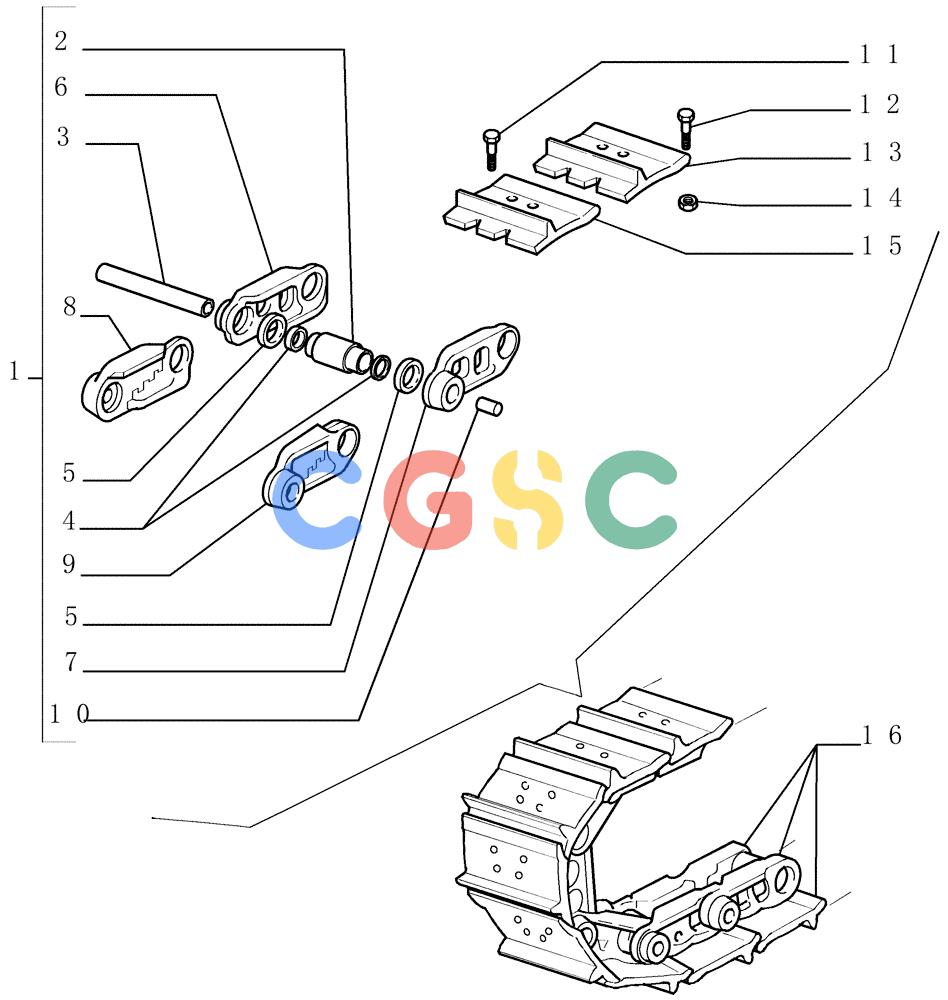

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092144 | [2] | TRACK ASSY | LEC- ASSY Superseded by part number: 76040846 |
| 2. | 76040934 | [40] | BUSHING | LEC |
| 3. | 76040933 | [40] | PIN | LEC |
| 4. | 76040938 | [80] | SPACER | LEC |
| 5. | 76040937 | [80] | OIL SEAL | LEC |
| 6. | 76092147 | [39] | TRACK LINK | LEC- RIGHT Superseded by part number: 76040928 |
| 7. | 76092148 | [39] | TRACK LINK | LEC- LEFT Superseded by part number: 76040929 |
| 8. | 76092149 | [1] | CONNECTING LINK | LEC- RIGHT MASTER Superseded by part number: 76040931 |
| 9. | 76092150 | [1] | CONNECTING LINK | LEC- LEFT Superseded by part number: 76040932 |
| 10. | 76040943 | [40] | PLUG | LEC Superseded by part number: 79082287 |
| 11. | 76040927 | [4] | BOLT,Hex, 3/4" - 16 | LEC |
| 12. | 76040849 | [156] | STEP BOLT,Hex, 3/4" - 16 x 2-3/8" | LEC |
| 13. | 76092145 | [39] | TRACK SHOE | LEC-560mm- (1 GROUSER) Superseded by part number: 76040847 |
| 14. | 76040850 | [156] | SQUARE NUT | LEC Superseded by part number: 87582723 |
| 15. | 76092146 | [1] | TRACK SHOE | LEC- (1 GROUSER) MASTER Superseded by part number: 76040848 |
| 16. | 76092143 | [2] | TRACK ASSY | LEC-560mm- ASSY WITH SHOES |
