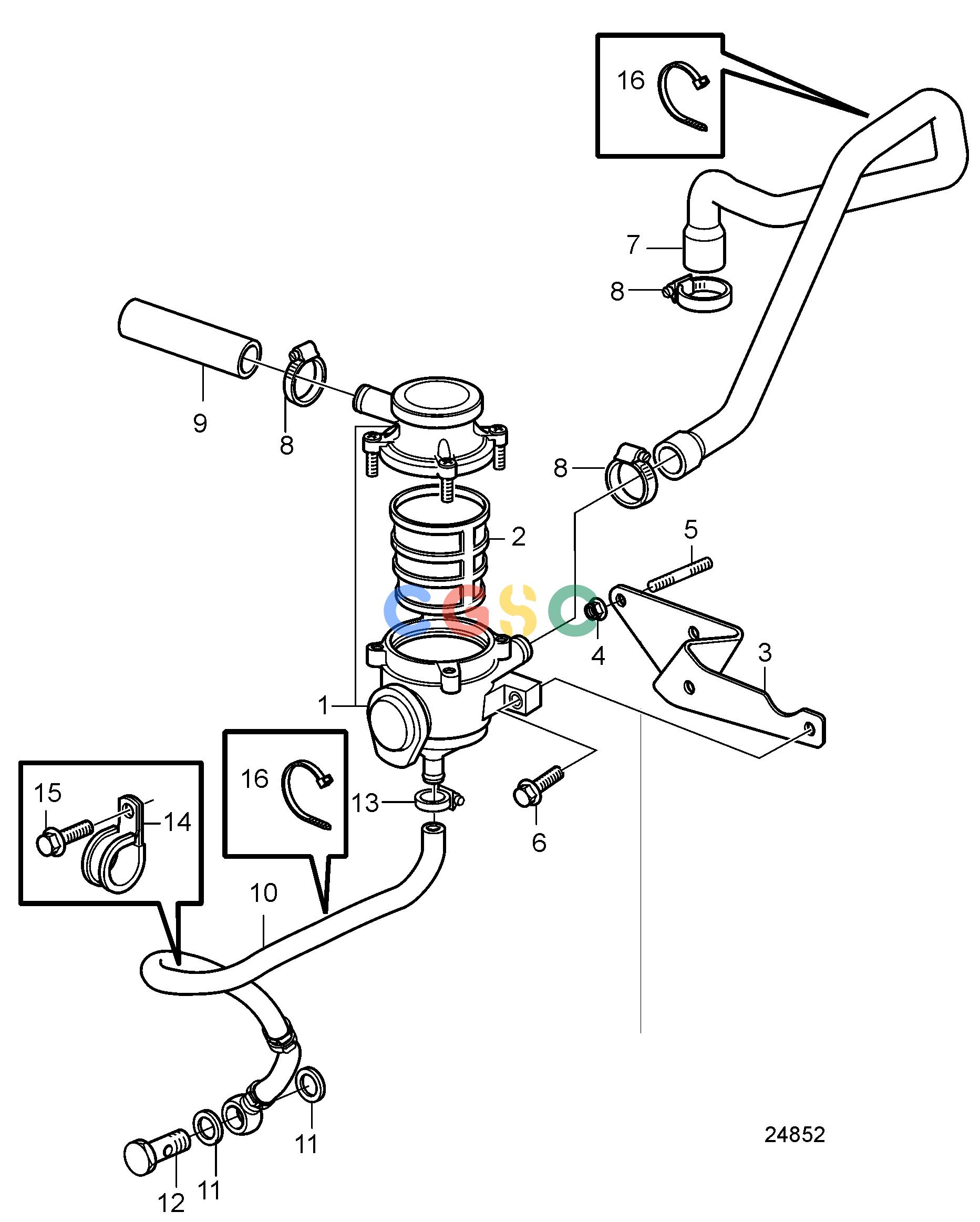

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Intake and Exhaust SystemCrankcase VentilationEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21690243
|
[1] |
Oil trap
|
|
| 2. |
21368879
|
[1] |
Insert
|
|
| 3. |
21353287
|
[1] |
Bracket
|
Replaced by 21560971
|
| 3. |
21560971
|
[1] |
Bracket
|
|
| 4. |
945408
|
[3] |
Flange nut
|
|
| 5. |
953060
|
[3] |
Stud
|
|
| 6. |
946671
|
[2] |
Flange screw
|
M8x30mm
|
| 7. |
21353366
|
[1] |
Hose
|
|
| 8. |
961666
|
[2] |
Hose clamp
|
|
| 9. |
949995
|
[1] |
Hose
|
L=100mm
|
| 10. |
21461603
|
[1] |
Hose assembly
|
|
| 11. |
11998
|
[2] |
Gasket
|
|
| 12. |
26013
|
[1] |
Hollow screw
|
|
| 13. |
961664
|
[1] |
Hose clamp
|
|
| 14. |
952631
|
[1] |
Clamp
|
|
| 15. |
946544
|
[1] |
Flange screw
|
M6x16mm
|
| 16. |
948211
|
[1] |
Cable tie
|
|
