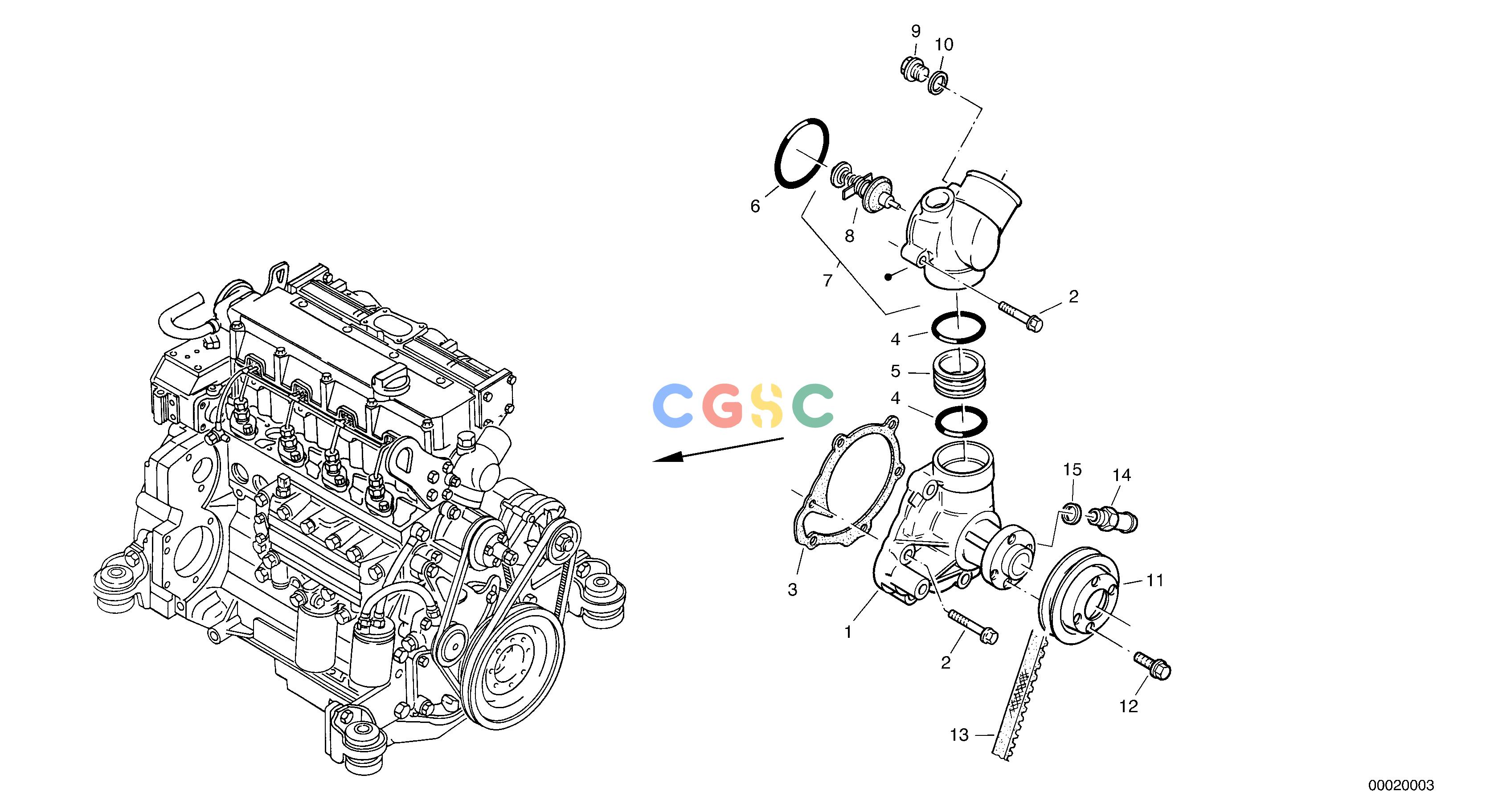

沃尔沃零件查询L45B Water pump, ThermostatTYPE 194, 195 SER NO - 14991941001--1951001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
169 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2904270
|
[1] |
Cooling water pump
|
|
| 10. |
VOE20405517
|
[1] |
Sealing ring
|
|
| 11. |
VOE20405705
|
[1] |
Pulley
|
|
| 12. |
VOE20405792
|
[3] |
Screw
|
|
| 13. |
VOE978710
|
[1] |
V-belt
|
|
| 14. |
VOE20450731
|
[1] |
Nipple
|
|
| 15. |
VOE13947622
|
[1] |
Plane gasket
|
A16x20
|
| 2. |
VOE20412324
|
[9] |
Screw
|
|
| 3. |
VOE20405691
|
[1] |
Gasket
|
|
| 4. |
VOE20412325
|
[2] |
Sealing ring
|
|
| 5. |
VOE20405693
|
[1] |
Plug
|
|
| 6. |
ZM2904032
|
[1] |
O-ring
|
|
| 7. |
VOE20405689
|
[1] |
Thermostat
|
|
| 8. |
VOE20405689
|
[1] |
Thermostat
|
|
| 9. |
VOE20405519
|
[1] |
Plug
|
|
