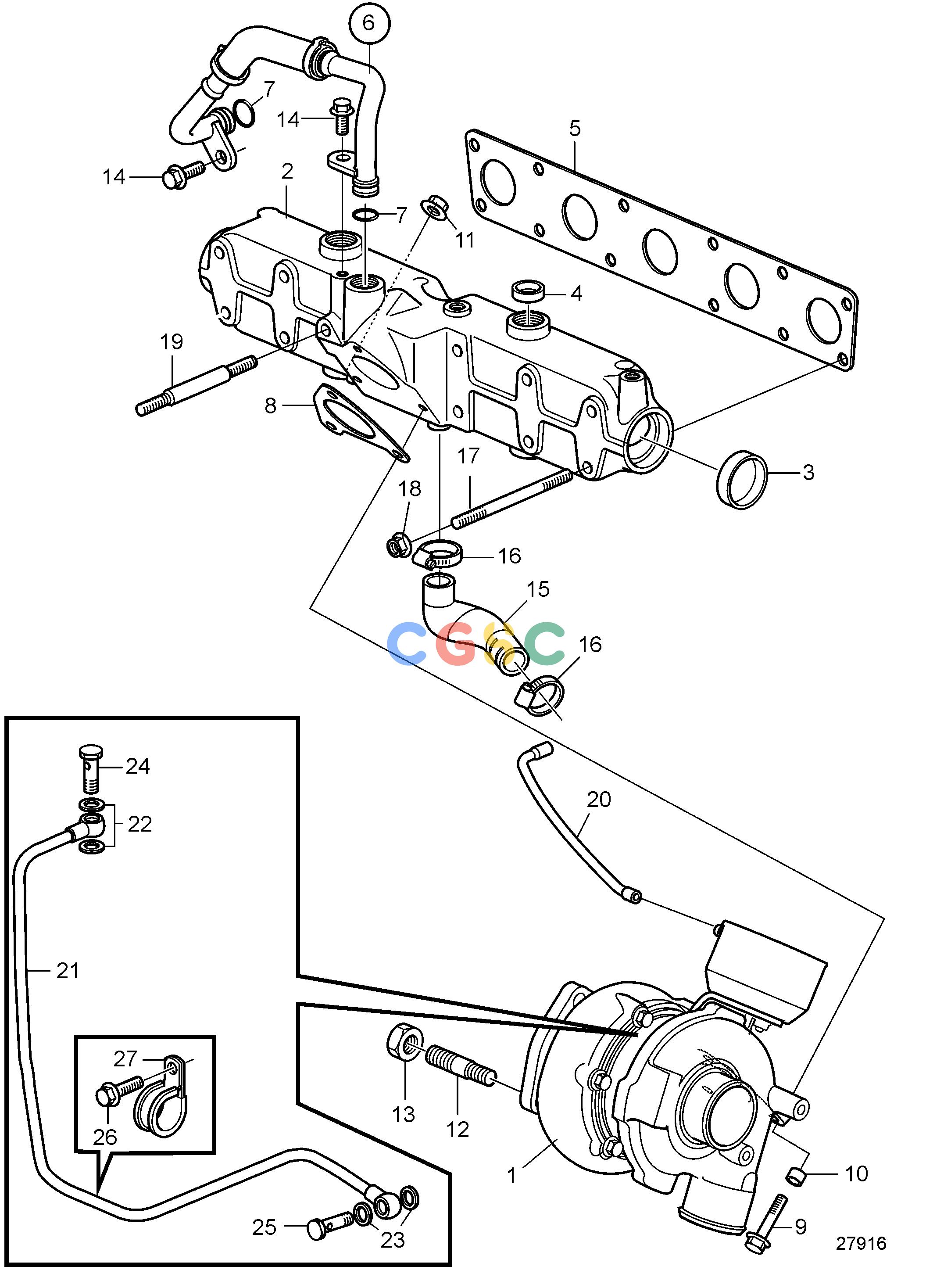

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Intake and Exhaust SystemExhaust Manifold and TurbochargerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1004 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801387
|
[1] |
Turbocharger
|
|
| 2. |
21489972
|
[1] |
Exhaust manifold
|
|
| 3. |
967962
|
[2] |
Cap plug
|
|
| 4. |
948811
|
[2] |
Cap plug
|
|
| 5. |
30777682
|
[1] |
Gasket
|
|
| 6. |
21252495
|
[1] |
Inlet pipe
|
|
| 7. |
982292
|
[2] |
O-ring
|
|
| 8. |
8631549
|
[1] |
Gasket
|
|
| 9. |
994647
|
[2] |
Flange screw
|
|
| 10. |
994626
|
[2] |
Spacer sleeve
|
|
| 11. |
945408
|
[1] |
Flange nut
|
|
| 12. |
982449
|
[3] |
Stud
|
|
| 13. |
981152
|
[3] |
Flange nut
|
|
| 14. |
945444
|
[2] |
Flange screw
|
M8x25mm
|
| 15. |
21454204
|
[1] |
Hose
|
|
| 16. |
961665
|
[2] |
Hose clamp
|
|
| 17. |
953060
|
[11] |
Stud
|
|
| 18. |
945408
|
[12] |
Flange nut
|
|
| 19. |
947698
|
[1] |
Stud
|
M8x130mm
|
| 20. |
7749500_033
|
|
Hose
|
|
| 21. |
21506563
|
[1] |
Oil pressure pipe
|
|
| 22. |
18665
|
[2] |
Gasket
|
|
| 23. |
969011
|
[2] |
Gasket
|
|
| 24. |
995343
|
[2] |
Hollow screw
|
|
| 25. |
25167
|
[1] |
Hollow screw
|
|
| 26. |
946544
|
[1] |
Flange screw
|
M6x16mm
|
| 27. |
952625
|
[1] |
Clamp
|
|
