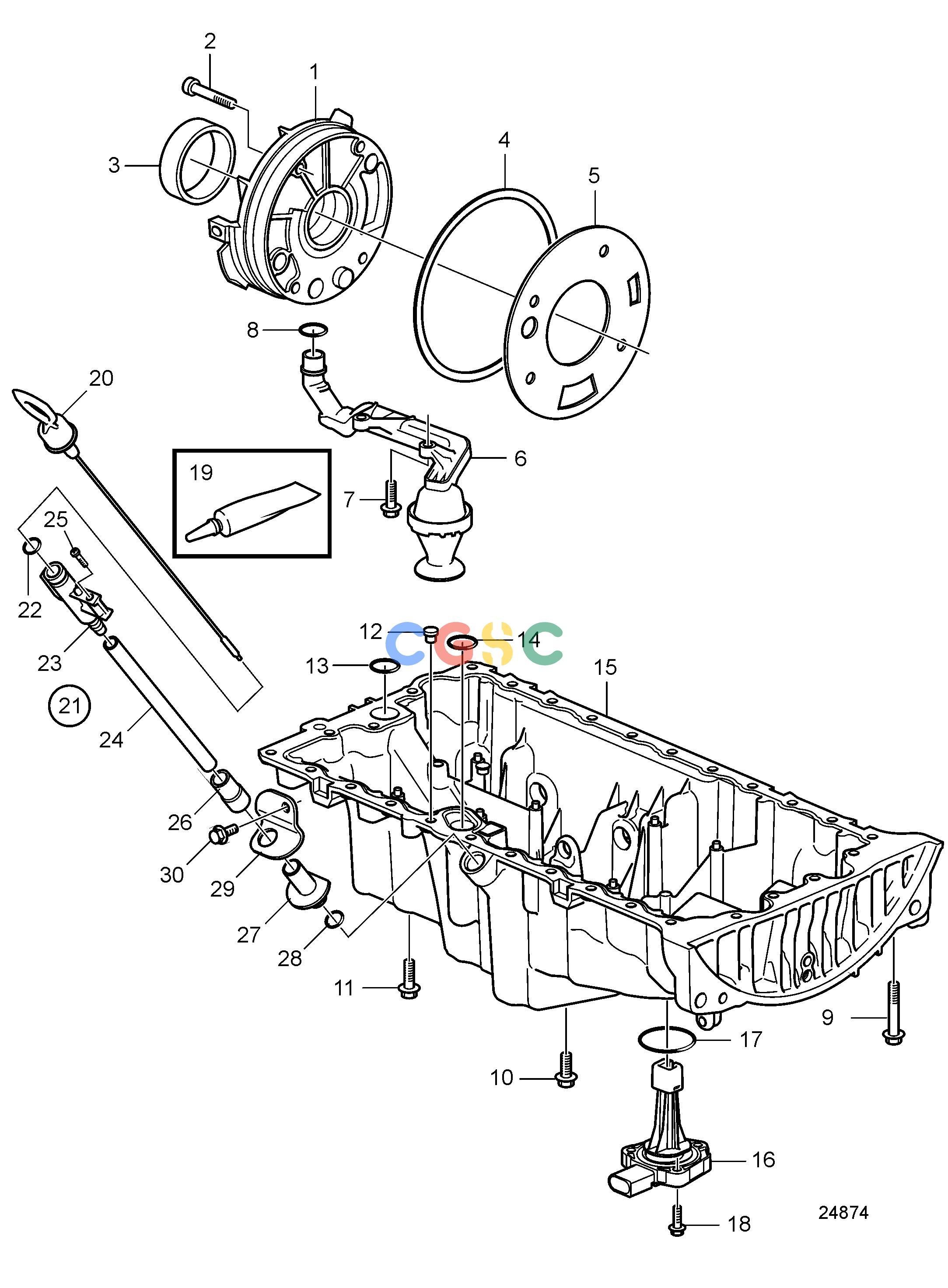

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Lubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
865 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30777092
|
[1] |
Oil pump
|
|
| 2. |
987348
|
[4] |
Six point socket scr
|
|
| 3. |
6842273
|
[1] |
Lip seal
|
|
| 4. |
981204
|
[1] |
O-ring
|
|
| 5. |
1275404
|
[1] |
Gasket
|
|
| 6. |
30777148
|
[1] |
Suction line
|
|
| 7. |
968158
|
[2] |
Flange screw
|
|
| 8. |
30637867
|
[1] |
Sealing ring
|
|
| 9. |
980092
|
[4] |
Flange screw
|
M7x100mm
|
| 10. |
975880
|
[22] |
Flange screw
|
M7x20mm
|
| 11. |
985322
|
[4] |
Flange screw
|
M7x40mm
|
| 12. |
463963
|
[1] |
Valve
|
|
| 13. |
8642560
|
[1] |
Sealing ring
|
|
| 14. |
8631513
|
[1] |
Sealing ring
|
|
| 15. |
31258206
|
[1] |
Oil sump
|
Replaced by 31316978
|
| 15. |
31316978
|
[1] |
Oil sump
|
SN-968938, Replaced by 31339208
|
| 15. |
31339208
|
[1] |
Oil sump
|
SN968939-
|
| 16. |
31272687
|
[1] |
Oil level sensor
|
|
| 17. |
31219441
|
[1] |
O-ring
|
|
| 18. |
982759
|
[3] |
Flange screw
|
M6x25mm
|
| 19. |
1161771
|
[1] |
Sealing compound
|
50ml
|
| 20. |
3847530
|
[1] |
Oil dipstick
|
|
| 21. |
21376073
|
[1] |
Pipe
|
|
| 22. |
944124
|
[1] |
O-ring
|
|
| 23. |
|
|
|
|
| 24. |
|
|
|
|
| 25. |
975378
|
[1] |
Six point socket scr
|
|
| 26. |
843533
|
[1] |
Rubber hose
|
|
| 27. |
21451916
|
[1] |
Insert nipple
|
|
| 28. |
3888462
|
[1] |
O-ring
|
|
| 29. |
3847997
|
[1] |
Bracket
|
|
| 30. |
982775
|
[1] |
Flange screw
|
M7x16mm
|
