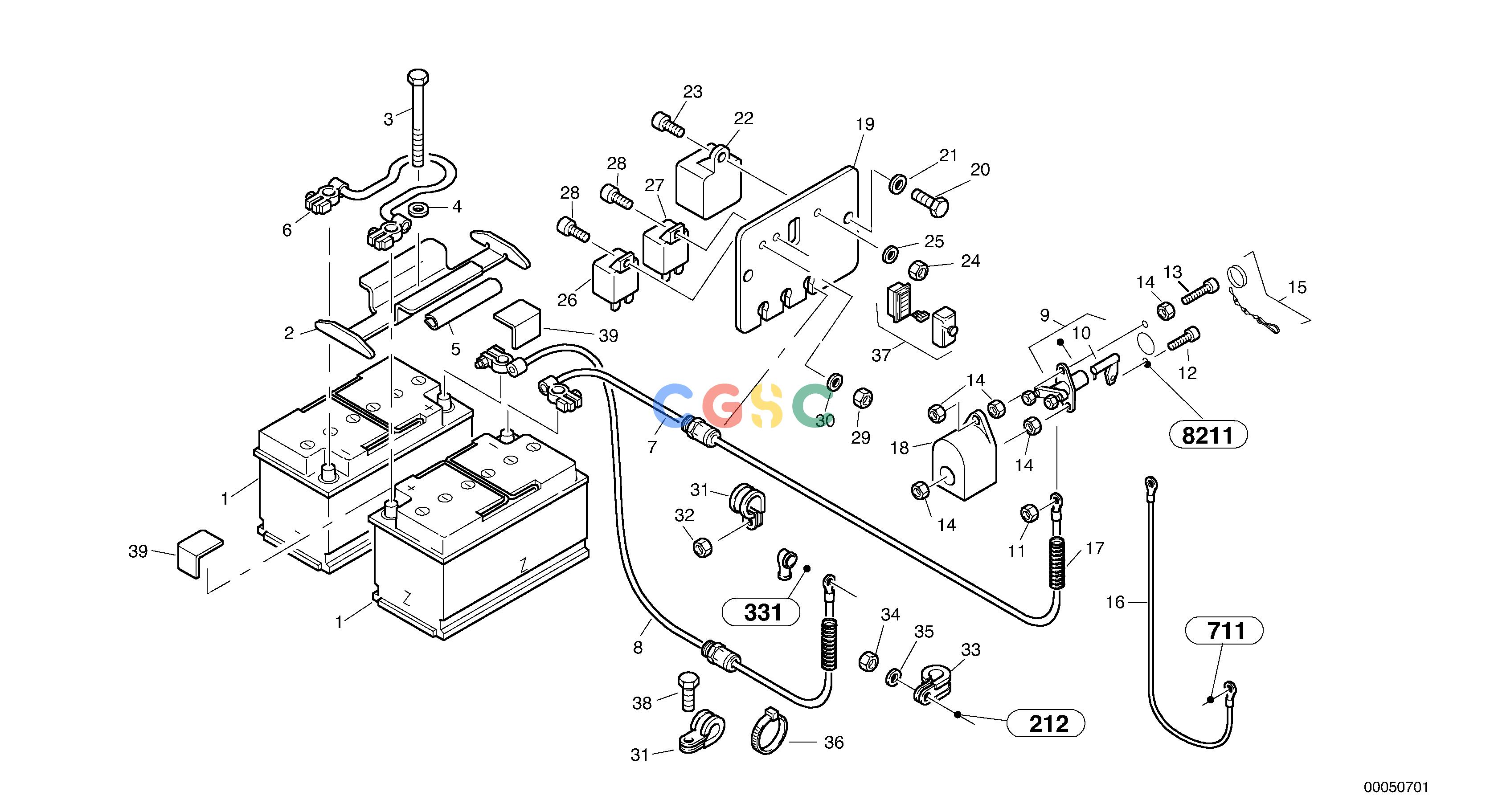

沃尔沃零件查询L45B Battery - Relay-groupTYPE 194, 195 SER NO - 14991941001--1951001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
878 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11306682
|
[2] |
Battery
|
|
| 2. |
ZM2815004
|
[1] |
Holder
|
|
| 3. |
ZM2814182
|
[1] |
Screw
|
M10x190
|
| 4. |
VOE13949523
|
[1] |
Washer
|
10,5
|
| 5. |
VOE11305888
|
[2] |
Sealing strip
|
L = 200MM
|
| 6. |
ZM2814879
|
[1] |
Cable
|
|
| 7. |
ZM2815529
|
[1] |
Cable
|
|
| 8. |
ZM2815525
|
[1] |
Cable
|
|
| 9. |
VOE3987034
|
[1] |
Main switch
|
|
| 10. |
ZM2906786
|
[1] |
Lever
|
|
| 11. |
VOE13971080
|
[1] |
Hexagon nut
|
M10
|
| 12. |
ZM7096551
|
[1] |
Screw
|
M6x25
|
| 13. |
ZM7096552
|
[1] |
Screw
|
M6x35
|
| 14. |
ZM7098000
|
[4] |
Nut
|
M6
|
| 15. |
ZM2807696
|
[1] |
Chain
|
|
| 16. |
ZM2815526
|
[1] |
Cable
|
|
| 17. |
VOE11306683
|
[1] |
Hose
|
|
| 18. |
VOE14340579
|
[1] |
Protection
|
|
| 19. |
ZM2815531
|
[1] |
Retainer
|
|
| 20. |
VOE9832427
|
[2] |
Screw
|
M8x20
|
| 21. |
ZM7098750
|
[2] |
Washer
|
B 8,4
|
| 22. |
VOE11099286
|
[1] |
Relay
|
|
| 23. |
VOE13956078
|
[1] |
Screw
|
M5x16
|
| 24. |
VOE955780
|
[1] |
Hexagon nut
|
M5
|
| 25. |
VOE13940090
|
[1] |
Washer
|
A5,3
|
| 26. |
ZM2813686
|
[1] |
Relay
|
40A
|
| 27. |
ZM2813699
|
[1] |
Relay - Air conditioning
|
|
| 28. |
ZM7096665
|
[2] |
Screw
|
M4x10
|
| 29. |
VOE955779
|
[2] |
Hexagon nut
|
M4
|
| 30. |
VOE955891
|
[2] |
Plain washer
|
A4,3
|
| 31. |
ZM2290453
|
[2] |
Pipe clip
|
|
| 32. |
ZM7098010
|
[1] |
Nut
|
M8
|
| 33. |
ZM4343104
|
[1] |
Clip
|
|
| 34. |
VOE955780
|
[1] |
Hexagon nut
|
M5
|
| 35. |
VOE13940090
|
[1] |
Washer
|
A5,3
|
| 36. |
VOE14016673
|
[REQ] |
Strip clamp
|
|
| 37. |
ZM2813754
|
[1] |
Fuse
|
E50
|
| 38. |
ZM7095370
|
[1] |
Screw
|
M8x16
|
| 39. |
VOE11305922
|
[2] |
Terminal casing
|
|
