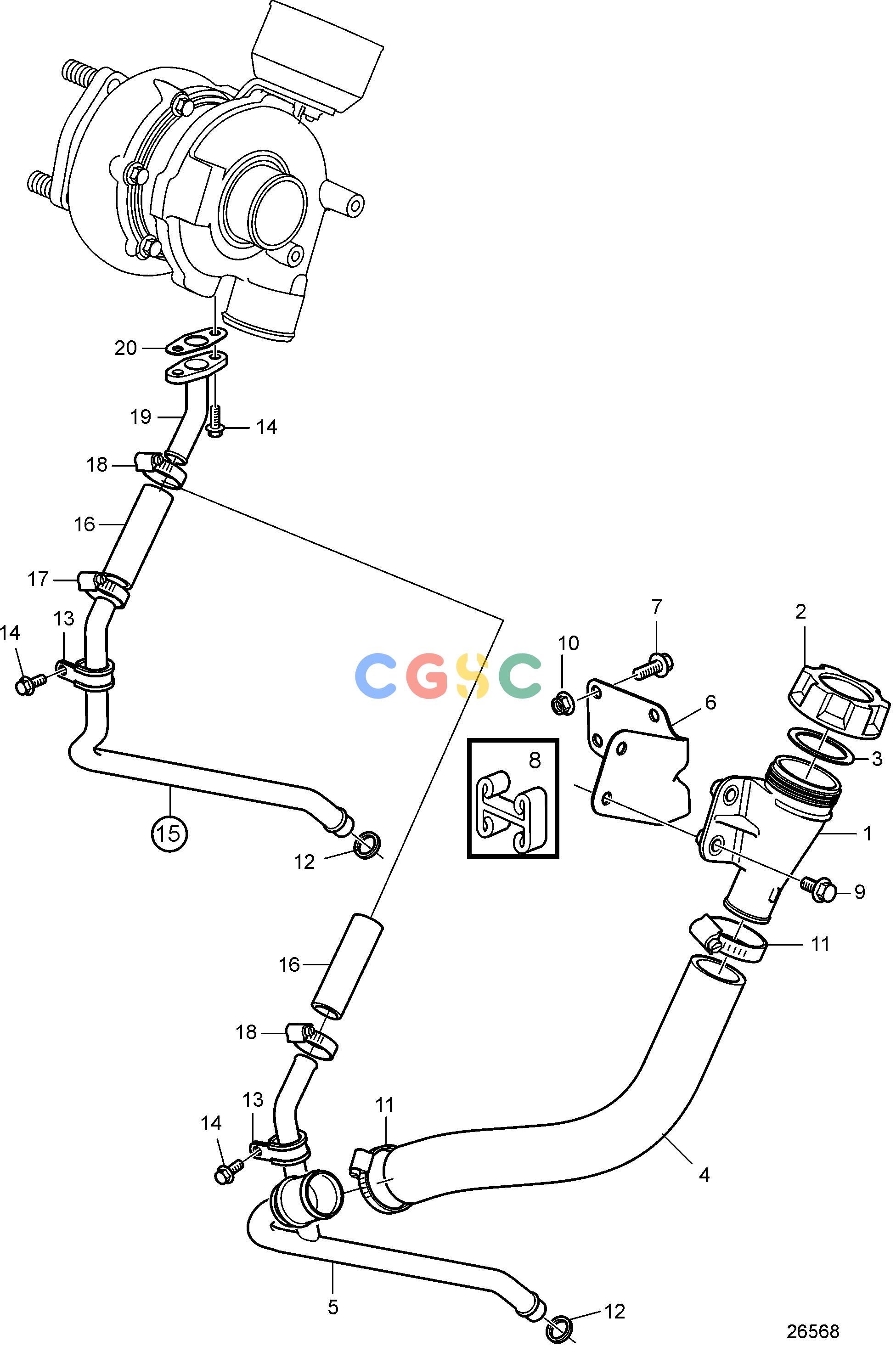

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Lubricating SystemOil Filling and Oil Drain From TurboEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
301 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20808091
|
[1] |
Oil filler pipe
|
|
| 2. |
20807510
|
[1] |
Oil filler cap
|
|
| 3. |
20365079
|
[1] |
Rubber washer
|
|
| 4. |
21711255
|
[1] |
Hose
|
|
| 5. |
21177977
|
[1] |
Oil return pipe
|
Option
|
| 6. |
21194093
|
[1] |
Bracket
|
Replaced by 21353908
|
| 6. |
21353908
|
[1] |
Bracket
|
With weld nuts
|
| 7. |
946173
|
[4] |
Flange screw
|
M8x20mm
|
| 7. |
965180
|
[4] |
Flange screw
|
For inboard
|
| 8. |
21369356
|
[1] |
Profile
|
For inboard
|
| 9. |
946440
|
[2] |
Flange screw
|
M8x16mm
|
| 10. |
945408
|
[4] |
Flange nut
|
|
| 11. |
961669
|
[2] |
Hose clamp
|
|
| 12. |
31251439
|
[1] |
Sealing ring
|
|
| 13. |
952629
|
[1] |
Clamp
|
|
| 14. |
946544
|
[4] |
Flange screw
|
M6x16mm
|
| 15. |
21294908
|
[1] |
Oil return pipe
|
other
|
| 16. |
3593534
|
[1] |
Hose
|
|
| 17. |
961665
|
[1] |
Hose clamp
|
|
| 18. |
961665
|
[1] |
Hose clamp
|
|
| 19. |
21098797
|
[1] |
Oil return pipe
|
|
| 20. |
31251456
|
[1] |
Gasket
|
|
