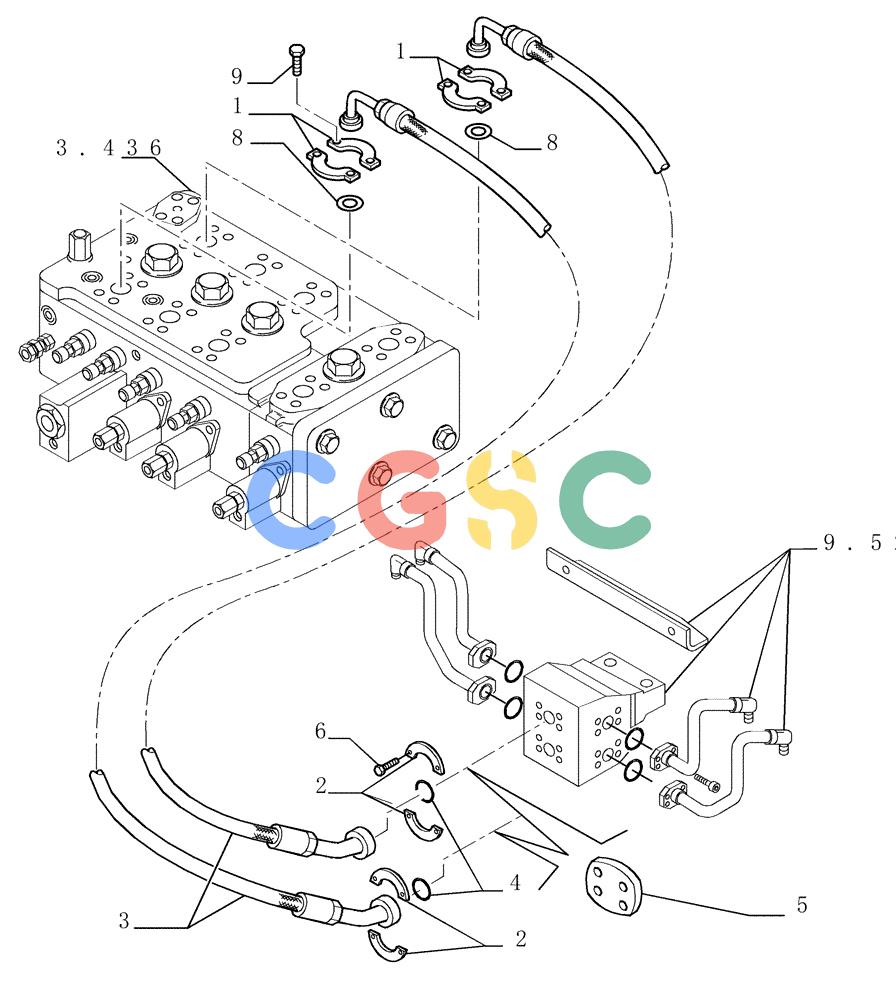

纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.438[03]) - ADDITIONAL HYDRAULIC FUNCTION - STD OPTIONAL CODE 76071190 - VERSION (01-02) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
894 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 71404313 | [4] | CLAMP,Half | LEC- 1" |
| 2. | 76007732 | [4] | HALF-FLANGE | LEC3/4 |
| 3. | 76071123 | [2] | HYDRAULIC HOSE | LEC- RIPPER CONTROL |
| 4. | 14463281 | [2] | O-RING,0.984" ID x 0.139" Width | TTF |
| 5. | 76074899 | [2] | PLATE | LEC |
| 6. | 14420431 | [8] | HEX SOC SCREW,M10 x 1.5 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 14420434 |
| 8. | 14463781 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro | LEC- In Alternative |
| 8. | 70924200 | [2] | O-RING | LEC3.53X32.92 IN ALTERNATIVE Superseded by part number: 14463780 |
| 9. | 14422231 | [8] | HEX SOC SCREW,M12 x 1.75 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 14422237 |
