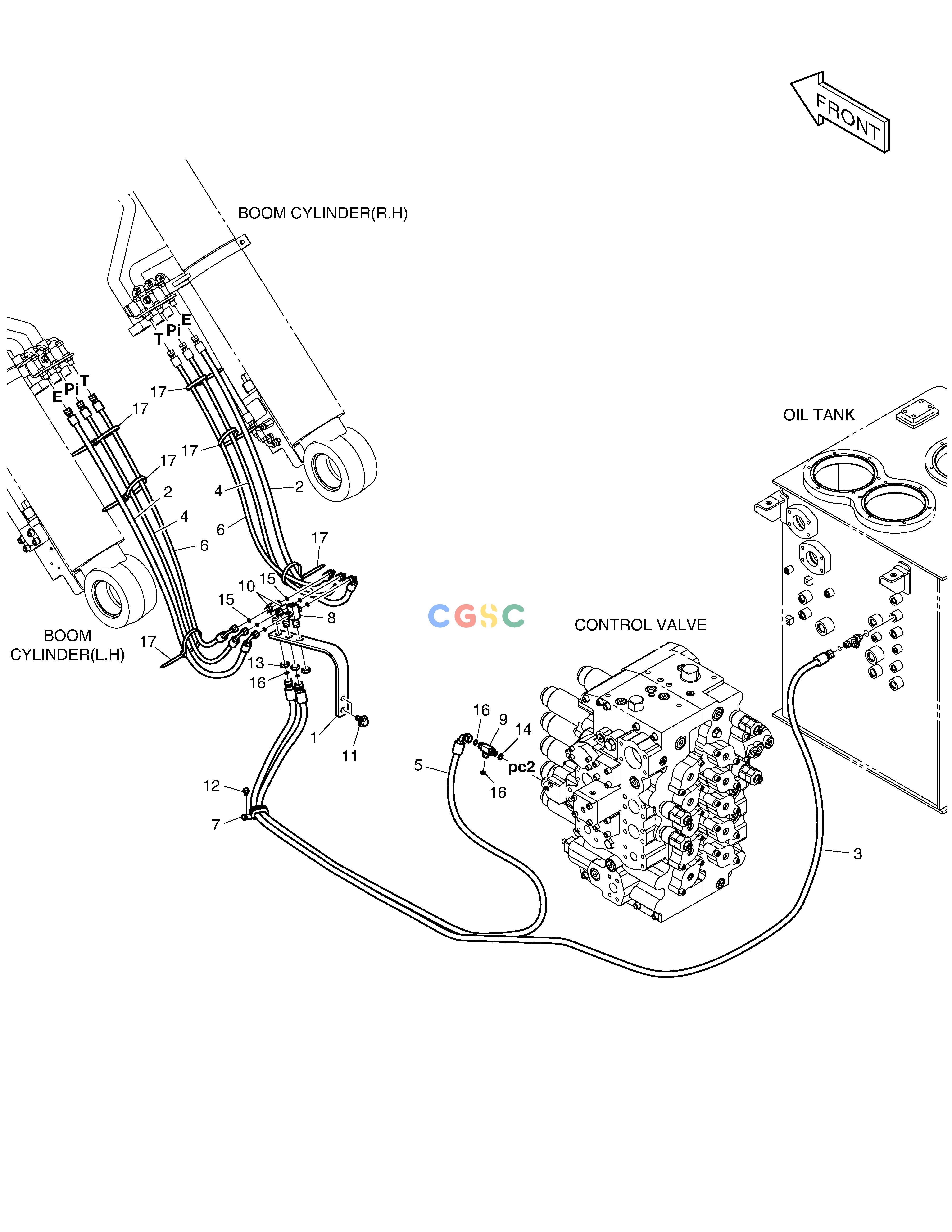

斗山零件查询PILOT PIPING-BOOM LOCK VALVE DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
294 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08505
|
[-] |
|
|
| 1. |
110406-00246B
|
[1] |
|
|
| 10. |
DS2416013
|
[2] |
|
|
| 11. |
DS0025018
|
[2] |
BOLT
|
|
| 12. |
K1001029
|
[1] |
BOLT
|
|
| 13. |
DS0301032
|
[3] |
NUT
|
|
| 14. |
S8000111
|
[1] |
O-RING
|
|
| 15. |
S8030041
|
[6] |
O-RING
|
|
| 16. |
S8030061
|
[4] |
O-RING
|
|
| 17. |
310101-00035
|
[6] |
TIE,CABLE
|
|
| 2. |
DS20131162
|
[2] |
HOSE
|
|
| 3. |
DS2119257
|
[1] |
|
|
| 4. |
DS2121162
|
[2] |
|
|
| 5. |
DS2121245
|
[1] |
|
|
| 6. |
DS2121256
|
[2] |
|
|
| 7. |
124-00209D1
|
[1] |
CLIP
|
|
| 8. |
430225-00006A
|
[1] |
|
|
| 9. |
DS2412016
|
[1] |
|
|
