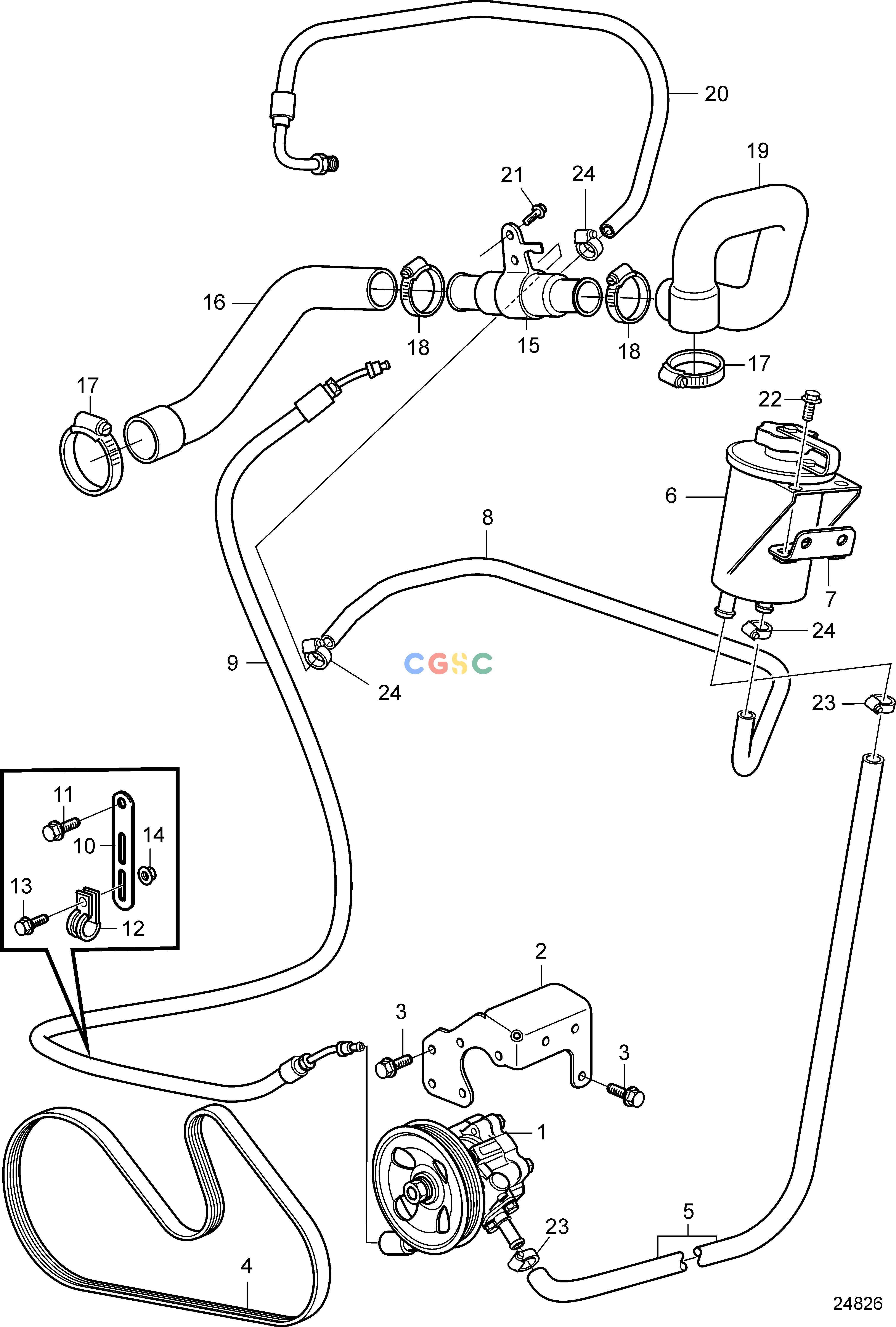

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Steering SystemServo Pump and Cooler for Stern DrivesEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
140 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7749500_107
|
|
Servo pump
|
|
| 2. |
21248117
|
[1] |
Bracket
|
|
| 3. |
946173
|
[6] |
Flange screw
|
M8x20mm
|
| 4. |
22352491
|
[1] |
V-ribbed belt
|
|
| 5. |
941995
|
[1] |
Hose
|
L=2m
|
| 6. |
3887375
|
[1] |
Reservoir
|
|
| 7. |
21333637
|
[1] |
Bracket
|
|
| 8. |
21268651
|
[1] |
Return hose
|
|
| 9. |
21214069
|
[1] |
Hose
|
|
| 10. |
965541
|
[1] |
Bracket
|
|
| 11. |
981177
|
[1] |
Flange screw
|
M10x25mm
|
| 12. |
952631
|
[1] |
Clamp
|
|
| 13. |
967949
|
[1] |
Flange screw
|
M6x12mm
|
| 14. |
945407
|
[1] |
Flange nut
|
|
| 15. |
21099550
|
[1] |
Oil cooler
|
|
| 16. |
21166139
|
[1] |
Hose
|
Charge Air Cooler-Servo Oil Cooler, Replaced by 21824969
|
| 16. |
21824969
|
[1] |
Hose
|
Charge Air Cooler-Servo Oil Cooler
|
| 17. |
961670
|
[2] |
Hose clamp
|
|
| 18. |
994561
|
[2] |
Hose clamp
|
|
| 19. |
21166142
|
[1] |
Hose
|
|
| 20. |
21432596
|
[1] |
Return hose
|
|
| 21. |
982799
|
[1] |
Flange screw
|
M8x45mm
|
| 22. |
945444
|
[2] |
Flange screw
|
|
