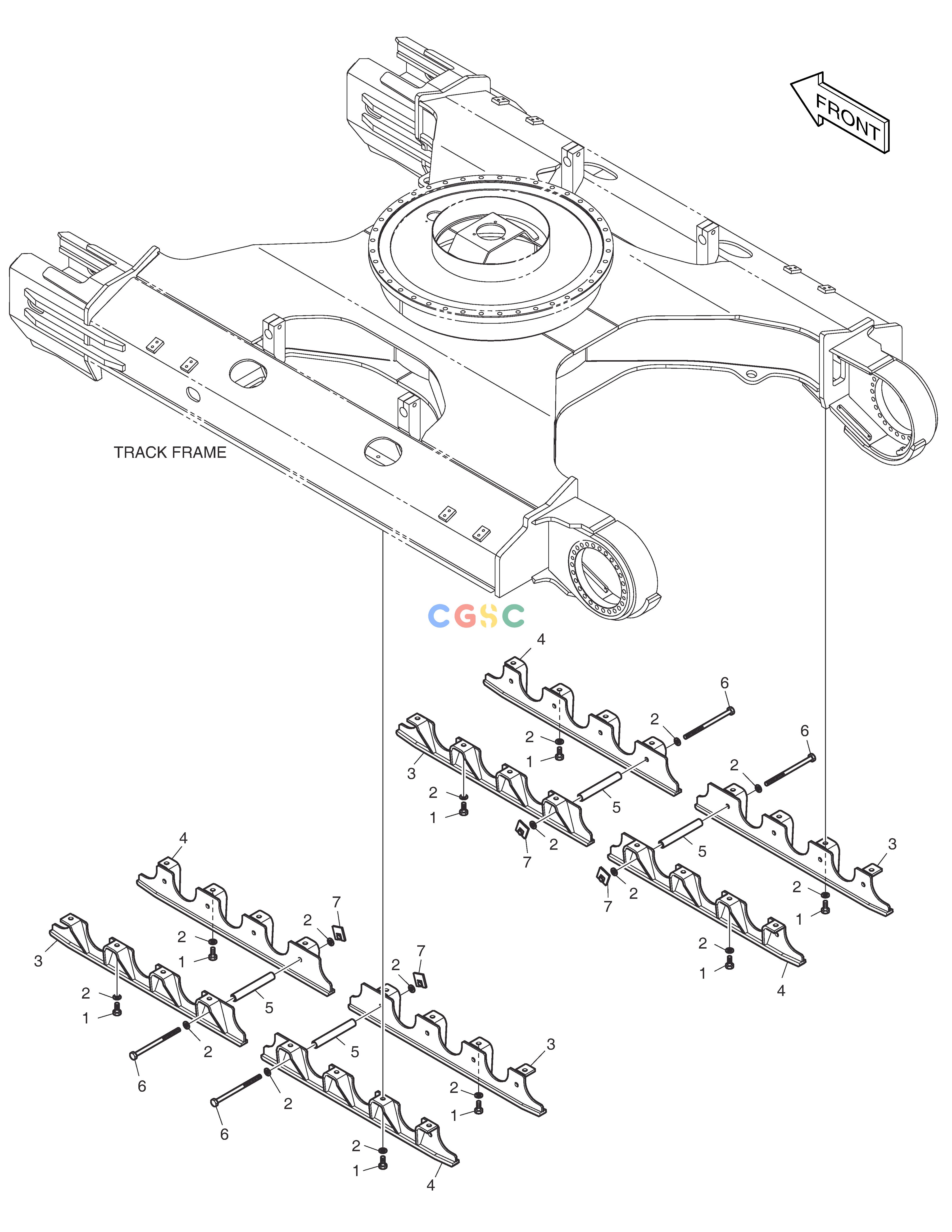

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 200112-00048 | [-] | ||
| 1. | S0530766 | [32] | BOLT M22X2.5X55 | |
| 2. | K1008538 | [64] | WASHER;HARDEN | |
| 3. | K1004841 | [4] | GUARD;TRACK | |
| 4. | K1004842 | [4] | GUARD;TRACK | |
| 5. | K1008534 | [16] | SPACER | |
| 6. | K1008536 | [16] | BOLT | |
| 7. | K1008973 | [16] | NUT;LOCK |
广数供应链运营团队, 14 02月, 2025，浏览： 820 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 200112-00048 | [-] | ||
| 1. | S0530766 | [32] | BOLT M22X2.5X55 | |
| 2. | K1008538 | [64] | WASHER;HARDEN | |
| 3. | K1004841 | [4] | GUARD;TRACK | |
| 4. | K1004842 | [4] | GUARD;TRACK | |
| 5. | K1008534 | [16] | SPACER | |
| 6. | K1008536 | [16] | BOLT | |
| 7. | K1008973 | [16] | NUT;LOCK |
