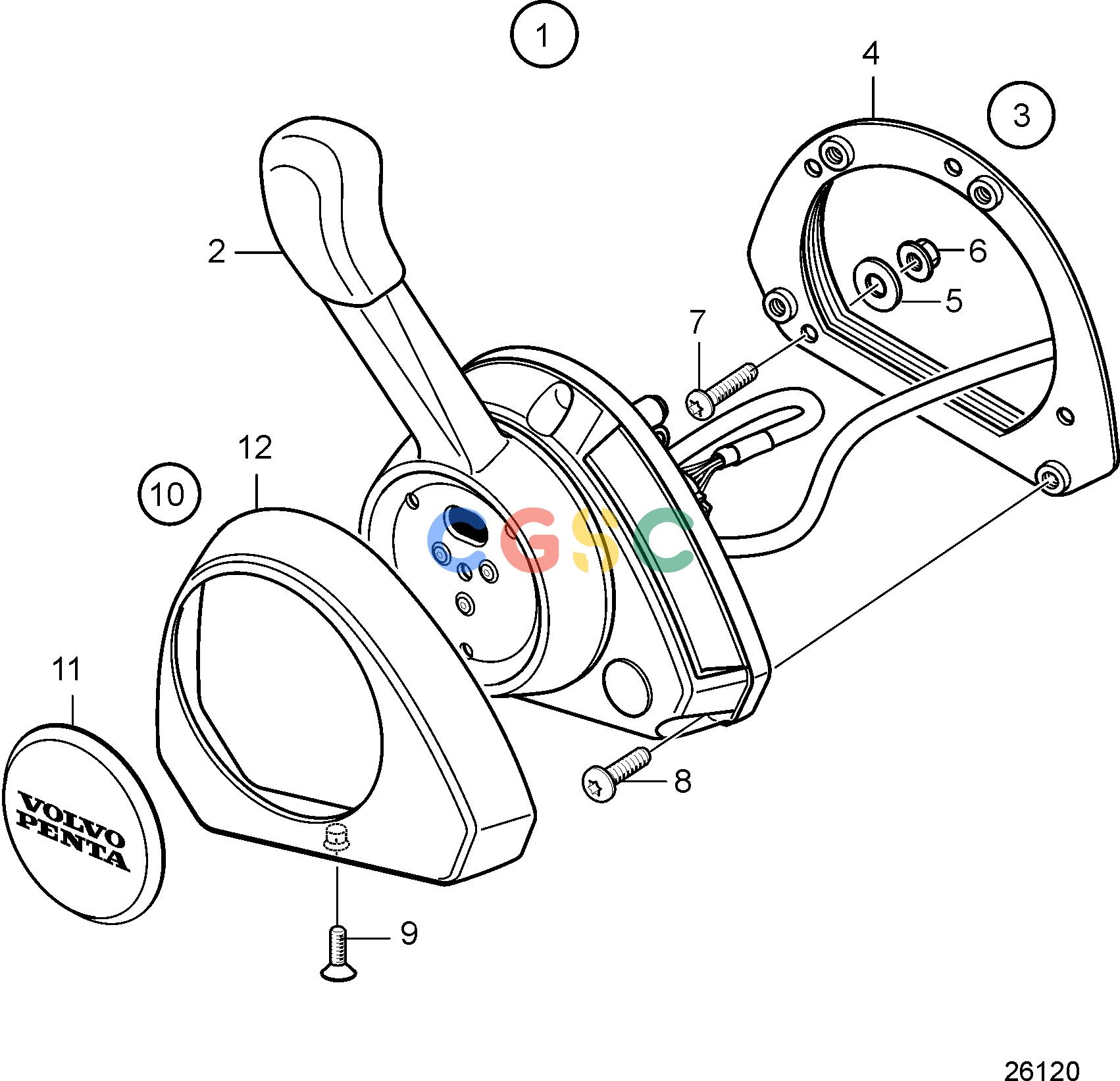

沃尔沃零件查询D3-110I-G; D3-140A-G; D3-140I-G; D3-150I-G; D3-170A-G; D3-170I-G; D3-200A-G; D3-200I-G; D3-220A-G; D3-220I-GControlsElectronic Control for Side Installation, EVC-D, EVC-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
605 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21735925
|
[1] |
Sail control
|
Replaced by 21849926
|
| 1. |
21849926
|
[1] |
Sail control
|
|
| 1. |
3586259
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 1. |
3586261
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 2. |
|
|
|
|
| 3. |
21461723
|
[1] |
Installation kit
|
|
| 4. |
21461725
|
[1] |
Bracket
|
|
| 5. |
940191
|
[4] |
Washer
|
|
| 6. |
966170
|
[4] |
Lock nut
|
|
| 7. |
994914
|
[4] |
Hex. socket screw
|
|
| 8. |
995201
|
[4] |
Hex. socket screw
|
|
| 9. |
969868
|
[1] |
Six point socket scr
|
|
| 10. |
21572761
|
[1] |
Cover
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
