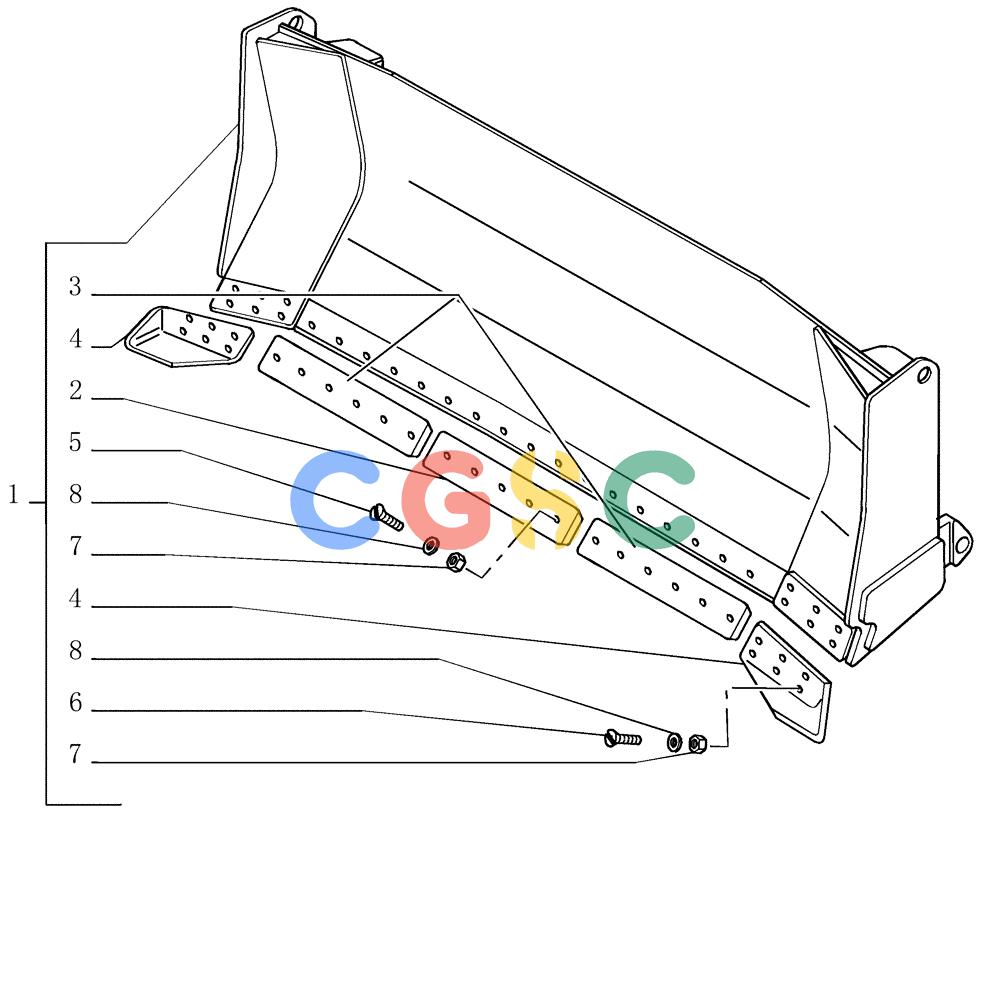

纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.468[01]) - MOLDBOARD HSU (LT) - OPTIONAL CODE 774248031 - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
908 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092018 | [1] | DOZER BLADE | LEC- ASSY |
| 2. | 76092019 | [1] | CUTTING EDGE | LEC- CENTER Superseded by part number: 8294668 |
| 3. | 76092020 | [2] | CUTTING EDGE | LEC- SIDE Superseded by part number: 76074841 |
| 4. | 76092022 | [1] | CUTTING EDGE | LEC- LEFT Superseded by part number: 79094512 |
| 4. | 76092021 | [1] | CUTTING EDGE | LEC- RIGHT Superseded by part number: 79094511 |
| 5. | 8273530 | [12] | SCREW,Sq Hd, M20 x 1.5 x 72mm | LEC20X1,5 Superseded by part number: 8289500 |
| 6. | 8282270 | [17] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LEC |
| 7. | 86015195 | [29] | NUT,M20 x 1.5, Cl 10 | RAC |
| 8. | 14497131 | [29] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
