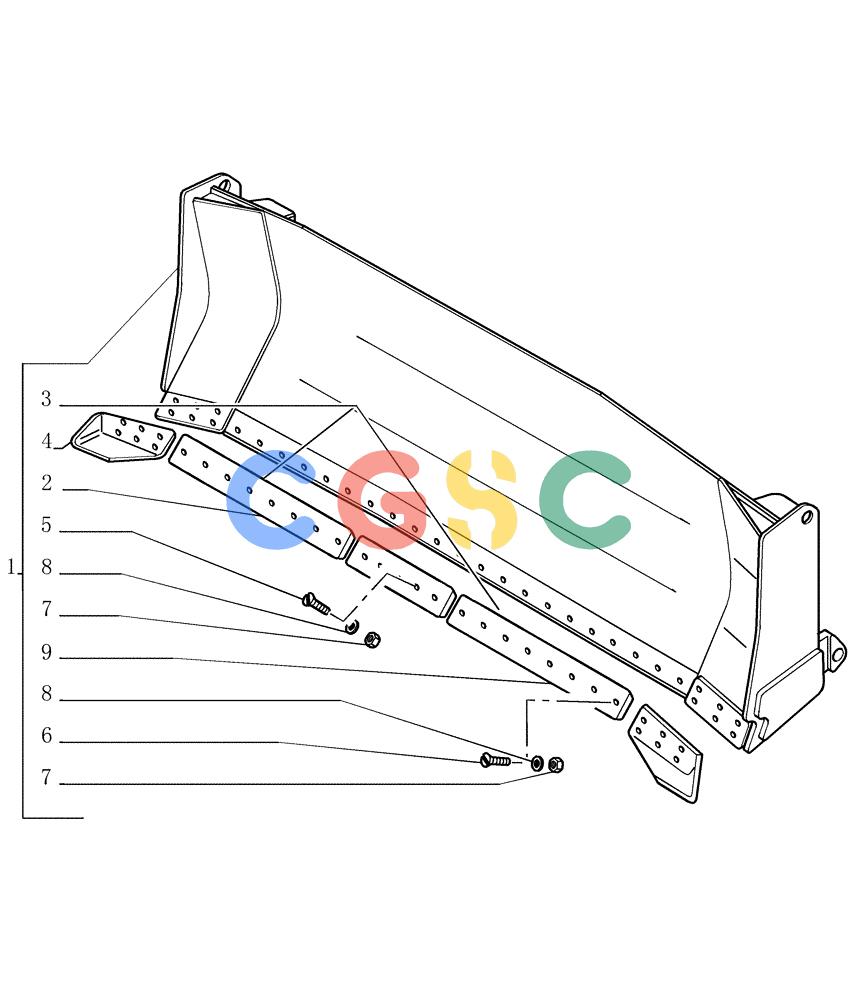

纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.469[03]) - STRAIGHT MOLDBOARD HS (LGS) - OPTIONAL CODE 774247031 - VERSION (03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
707 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092324 | [1] | DOZER BLADE | LEC- ASSY L=3900 |
| 2. | 76092019 | [1] | CUTTING EDGE | LEC Superseded by part number: 8294668 |
| 3. | 76092325 | [2] | CUTTING EDGE | LEC20X37 Superseded by part number: 76071089 |
| 4. | 76089498 | [1] | CUTTING EDGE | LEC Superseded by part number: 76015476 |
| 5. | 8282270 | [1] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LEC- RIGHT |
| 6. | 8273530 | [1] | SCREW,Sq Hd, M20 x 1.5 x 72mm | LEC- LEFT Superseded by part number: 8289500 |
| 7. | 86015195 | [12] | NUT,M20 x 1.5, Cl 10 | RAC |
| 9. | 76089499 | [1] | CUTTING EDGE | LEC20X1,5X16 Superseded by part number: 76015477 |
