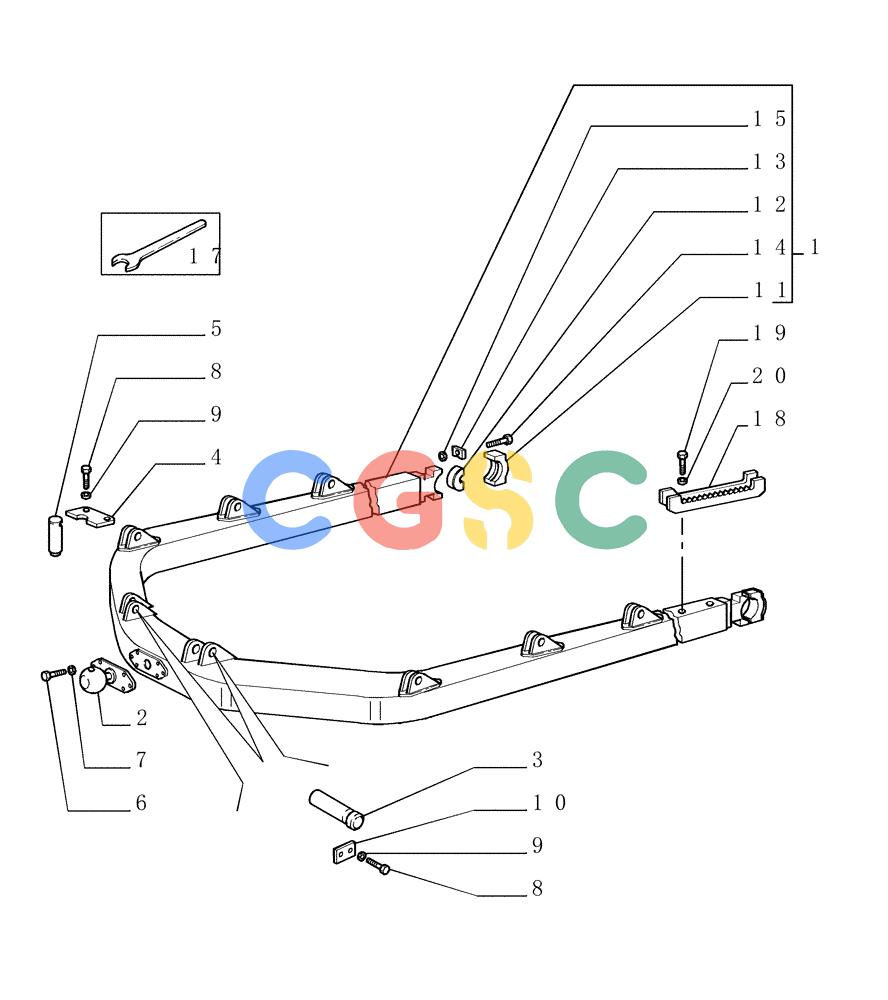

纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.473[01]) - C-FRAME - MACHANIC TILT LT - OPTIONAL CODE 76092025 - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
559 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092026 | [1] | U-FRAME | LEC- ASSY Superseded by part number: 76046831 |
| 2. | 76092027 | [1] | SUPPORT | LEC- IN ALTERNATIVE Superseded by part number: 76092028 |
| 2. | 76092028 | [1] | SUPPORT | LEC- IN ALTERNATIVE |
| 3. | 79114660 | [2] | PIN | LEC |
| 4. | 8270126 | [1] | PLATE | LEC Superseded by part number: 76092114 |
| 5. | 8273214 | [1] | PIN,50mm OD x 252mm L | LEC |
| 6. | 16047071 | [6] | BOLT,Hex, M18 x 2.5 x 50mm, Cl 12.9, Full Thd | LEC |
| 7. | 14497031 | [6] | WASHER,M18 x 34 | LEC |
| 8. | 11115534 | [6] | BOLT,Hex, M14 x 30, 10.9, Full Thd | LEC |
| 9. | 14496831 | [6] | WASHER,15mm ID x 28mm OD x 2.5mm Thk | LEC14.4X28 |
| 10. | 79114659 | [2] | PLATE | LEC |
| 11. | 79074406 | [1] | SUPPORT | LEC- RIGHT |
| 11. | 8296138 | [1] | SUPPORT | LEC Superseded by part number: 79074406 |
| 12. | 8280908 | [2] | HALF-BUSHING | LEC |
| 13. | 8280915 | [4] | LOCKING PLATE | LEC |
| 14. | 16047131 | [4] | SCREW,M24 x 180mm, Cl 10.9 | LEC24X2X180 Superseded by part number: 16047137 |
| 15. | 12163721 | [4] | NUT,M24, Cl 10 | LEC Superseded by part number: 9848973 |
| 18. | 76089488 | [2] | FOOTREST | LEC |
| 17. | 14585778 | [1] | ADJUSTING WRENCH | LEC36 Superseded by part number: 14585771 |
| 19. | 11112431 | [4] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 20. | 12648531 | [4] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
