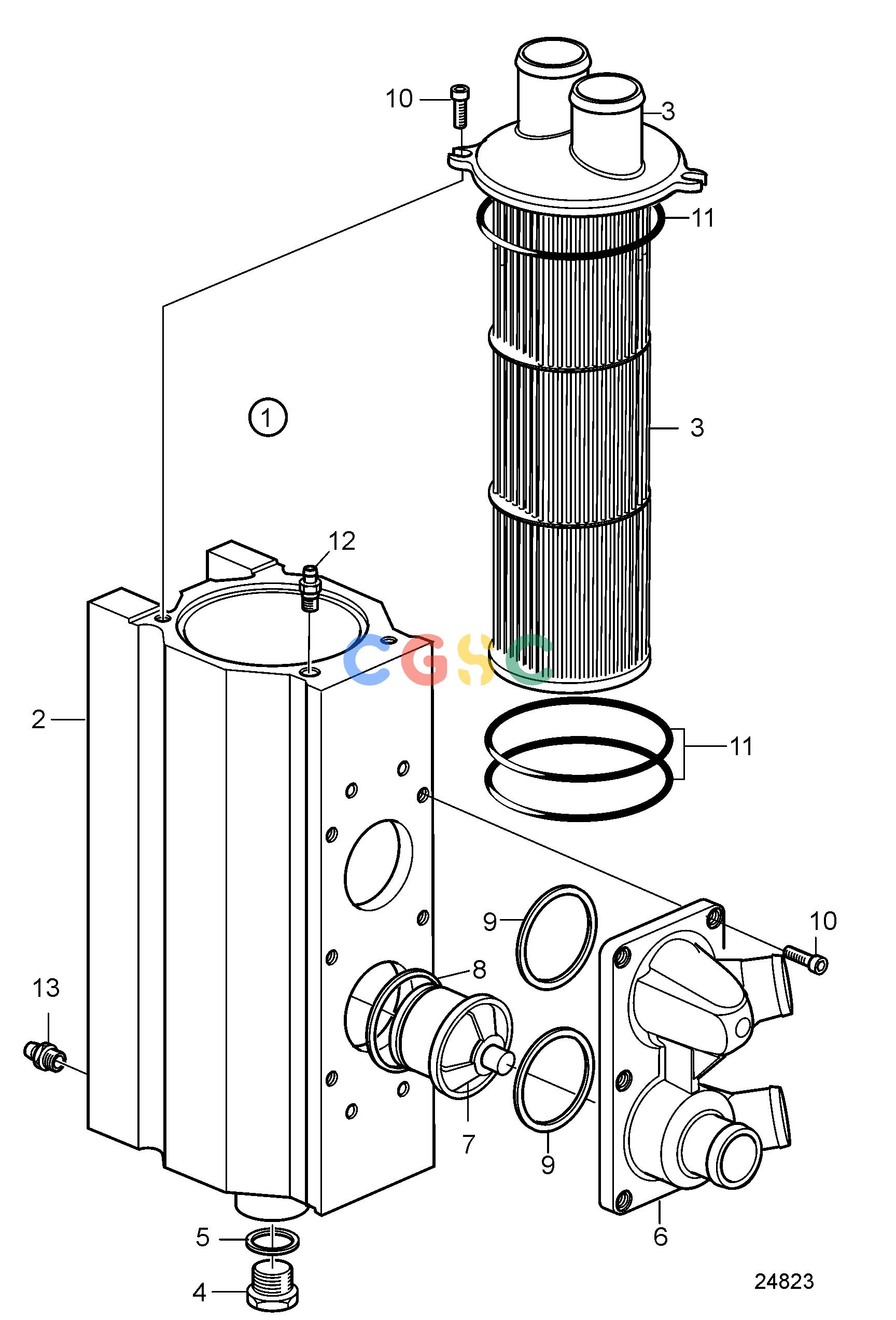

沃尔沃零件查询D3-110I-G; D3-140A-G; D3-140I-G; D3-150I-G; D3-170A-G; D3-170I-G; D3-200A-G; D3-200I-G; D3-220A-G; D3-220I-GCooling SystemHeat Exchanger, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
176 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21456343
|
[1] |
Heat exchanger
|
|
| 2. |
|
|
|
|
| 3. |
21456469
|
[1] |
Insert
|
|
| 4. |
21262925
|
[1] |
Plug
|
|
| 5. |
948887
|
[1] |
O-ring
|
|
| 6. |
21456344
|
[1] |
Cover
|
|
| 7. |
3840816
|
[1] |
Thermostat
|
|
| 8. |
3584299
|
[1] |
Gasket
|
|
| 9. |
21273476
|
[2] |
O-ring
|
|
| 10. |
940326
|
[8] |
Hex. socket screw
|
|
| 11. |
3838336
|
[3] |
O-ring
|
|
| 12. |
3842014
|
[1] |
Pipe
|
|
| 13. |
3583822
|
[1] |
Draining nipple
|
|
