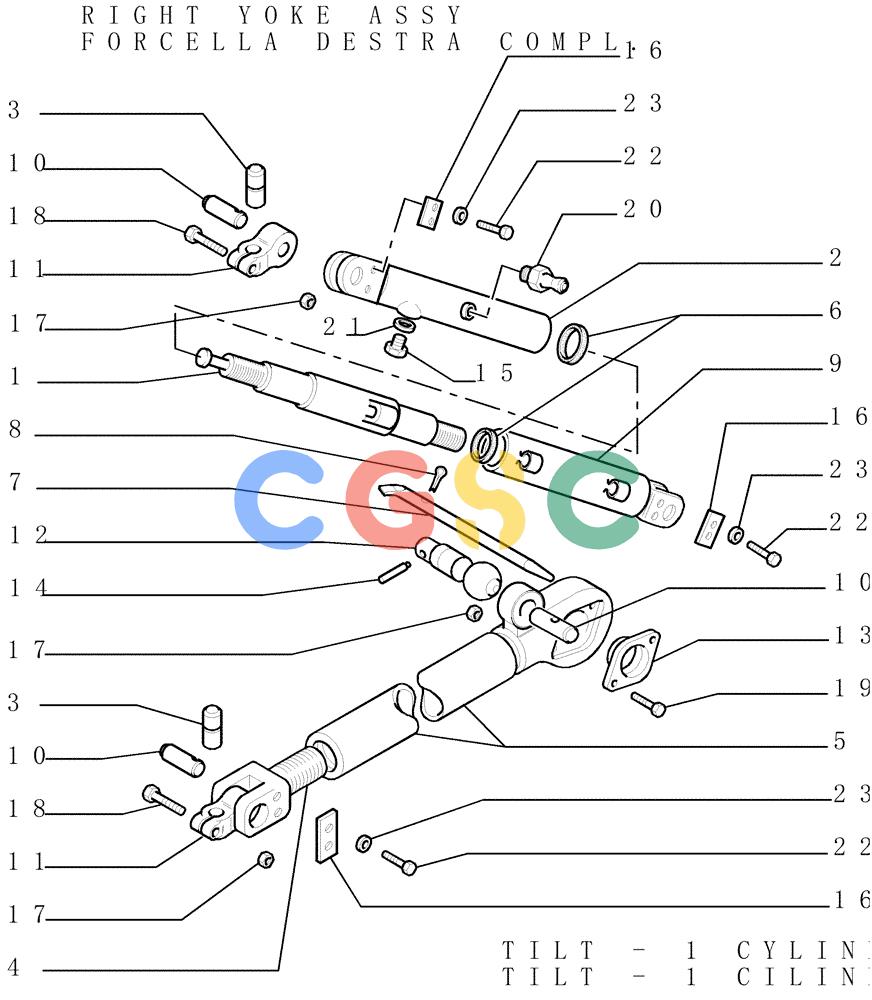

纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.481[02]) - HYDRAULIC TILT - ANGLEDOZER (HA) - OPTIONAL CODE 76092046 - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
216 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76035807 | [1] | ADJUSTMENT ROD | LEC |
| 2. | 76092052 | [1] | YOKE | LEC- FRONT |
| 3. | 76033002 | [2] | PIN,40mm OD x 134mm L | LEC |
| 4. | 76092041 | [1] | TRACK ROD END ASSY | LEC |
| 5. | 76092040 | [1] | STRUT | LEC |
| 6. | 8291846 | [2] | SEAL,70mm ID x 85mm OD x 7.5mm Thk | LEC |
| 7. | 8296559 | [1] | PIN,24mm OD | LEC |
| 8. | 5112606 | [1] | COTTER PIN | TTF |
| 9. | 76092038 | [1] | SLEEVE | LEC- REAR |
| 10. | 76033001 | [3] | PIN | LEC |
| 11. | 76092042 | [2] | SUPPORT | LEC |
| 12. | 76033003 | [1] | PIN | LEC |
| 13. | 76092043 | [2] | FLANGE | LEC |
| 14. | 76035973 | [1] | PIN | LEC |
| 15. | 8273641 | [1] | STEP BOLT,M20 x 1.5 x 40mm | LEC |
| 16. | 8270126 | [3] | PLATE | LEC Superseded by part number: 76092114 |
| 17. | 12163221 | [4] | NUT,M14, Cl 10 | LEC Superseded by part number: 87564740 |
| 18. | 11116831 | [2] | BOLT,Hex, M14 x 80, 10.9 | LEC |
| 19. | 11117031 | [2] | BOLT,Hex, M14 x 90, 10.9 | LEC |
| 20. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 21. | 14497131 | [1] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 22. | 11115531 | [6] | BOLT,Hex, M14 x 30, 10.9, Full Thd | LEC Superseded by part number: 11115534 |
| 23. | 14496831 | [6] | WASHER,15mm ID x 28mm OD x 2.5mm Thk | LEC14,4X28 |
