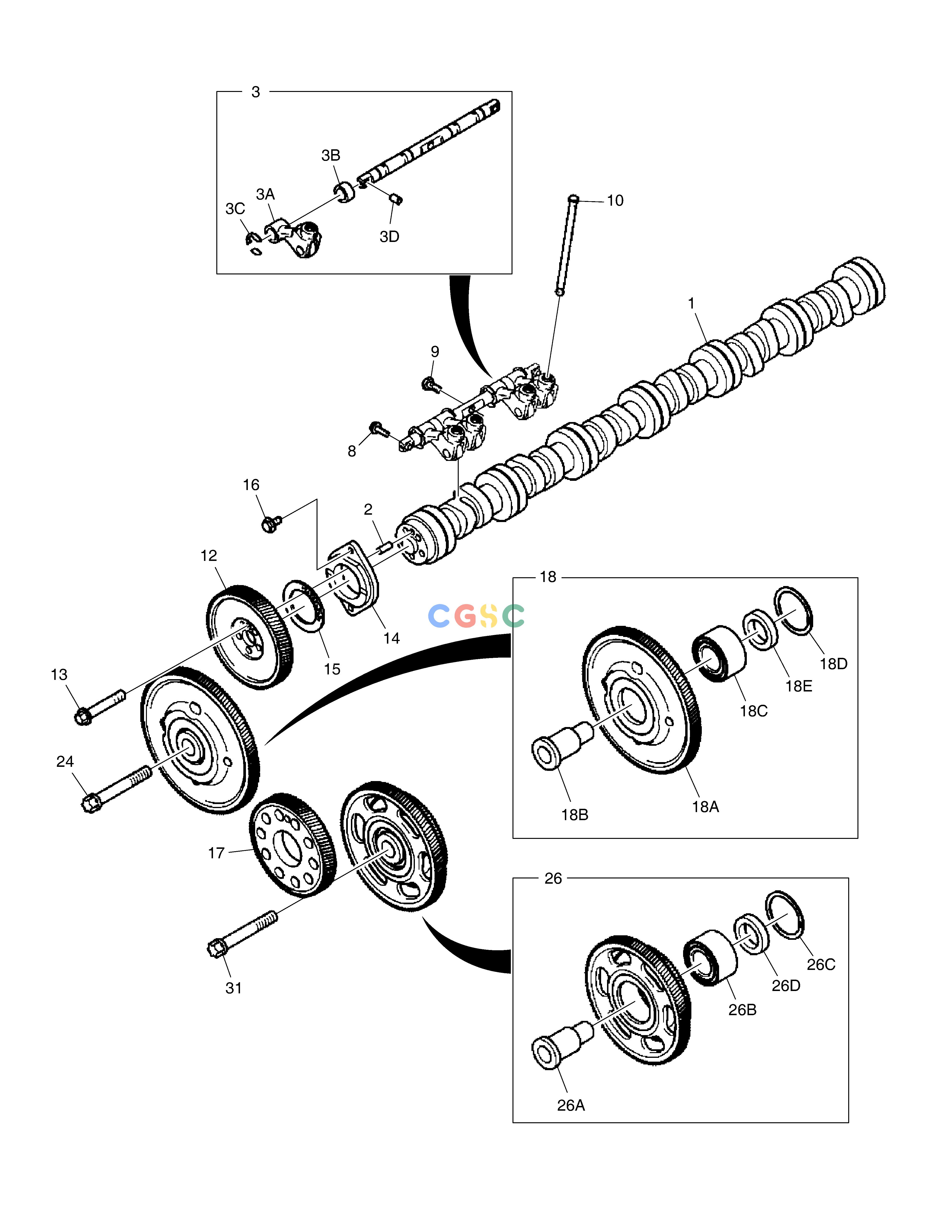

斗山零件查询CAM SHAFT DRIVE DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
882 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150103-00060
|
[1] |
|
|
| 10. |
150123-00083
|
[12] |
|
|
| 12. |
130408-00013
|
[1] |
|
|
| 13. |
120705-00755
|
[5] |
|
|
| 14. |
430215-00521
|
[1] |
|
|
| 15. |
120816-00098
|
[1] |
|
|
| 16. |
120705-00746
|
[2] |
|
|
| 17. |
130418-00362
|
[1] |
|
|
| 18. |
130418-00365
|
[1] |
|
|
| 18A. |
130418-00360
|
[1] |
|
|
| 18B. |
130712-00768
|
[1] |
|
|
| 18C. |
140105-00303
|
[1] |
|
|
| 18D. |
111104-00240
|
[1] |
|
|
| 18E. |
110949-00325
|
[1] |
|
|
| 2. |
120501-02044
|
[1] |
GOUJON
|
|
| 24. |
120705-00700
|
[1] |
|
|
| 26. |
130418-00593
|
[1] |
|
|
| 26A. |
130712-00768
|
[1] |
|
|
| 26B. |
140105-00303
|
[1] |
|
|
| 26C. |
111104-00240
|
[1] |
|
|
| 26D. |
110949-00325
|
[1] |
|
|
| 3. |
130712-00770
|
[3] |
|
|
| 31. |
120705-00700
|
[1] |
|
|
| 3A. |
130112-00052
|
[4] |
|
|
| 3B. |
110949-00323
|
[2] |
|
|
| 3C. |
111104-00239
|
[4] |
|
|
| 3D. |
110949-00317
|
[2] |
MANCHON
|
|
| 8. |
120705-00747
|
[6] |
VIS
|
|
| 9. |
120705-00707
|
[3] |
|
|
