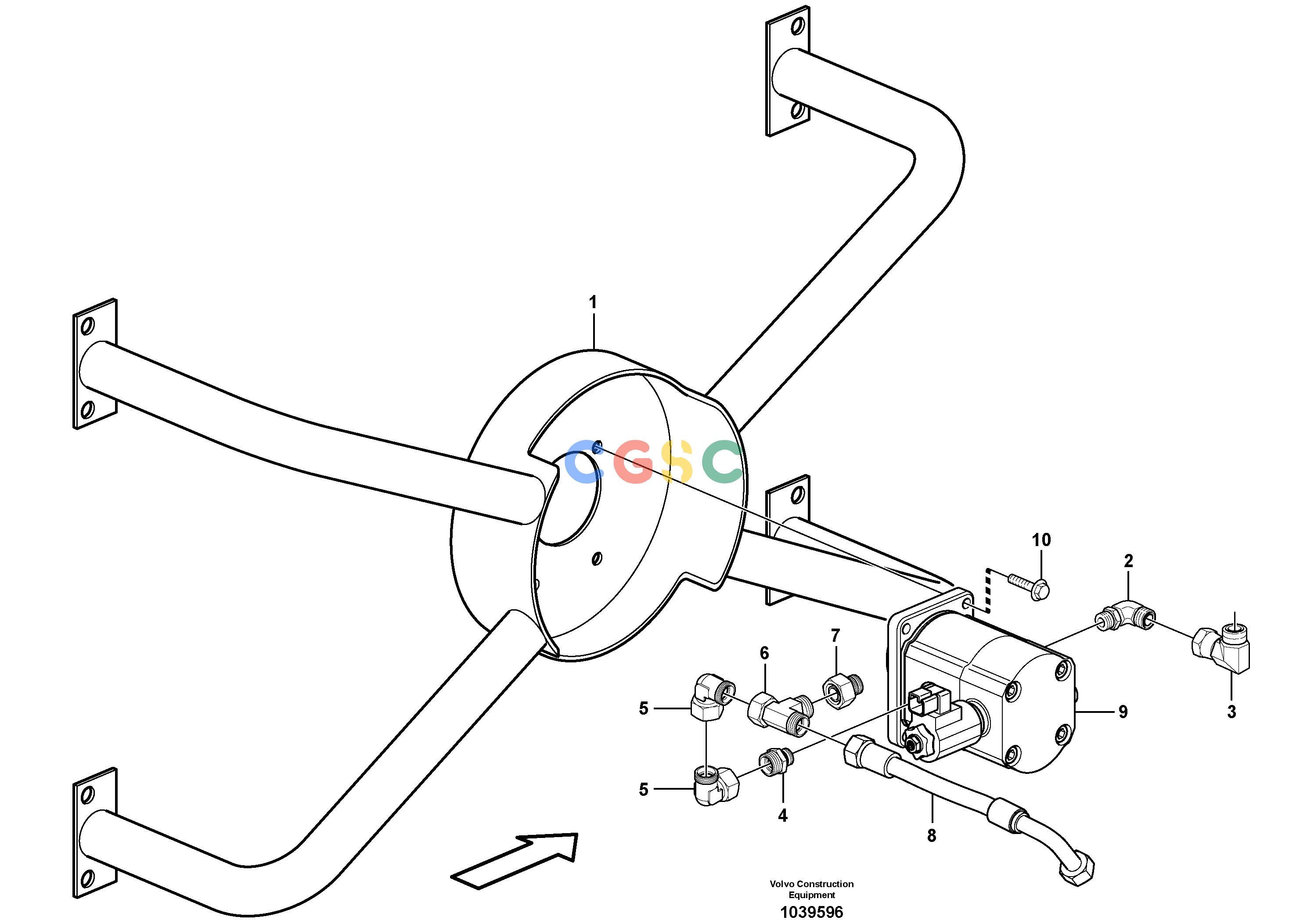

沃尔沃零件查询L45F Fan driveNone11391023 E PROD-11391402VOE11391023NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
525 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Radiator Bracke
|
|
| 2. |
VOE935076
|
[1] |
Elbow nipple
|
|
| |
VOE990739
|
[1] |
O-ring
|
|
| |
VOE993321
|
[1] |
O-ring
|
|
| 3. |
VOE935423
|
[1] |
Elbow nipple
|
|
| |
VOE990739
|
[1] |
O-ring
|
|
| 4. |
VOE15204782
|
[1] |
Fitting
|
|
| 5. |
VOE11306369
|
[2] |
Nipple
|
|
| 6. |
VOE11306491
|
[1] |
T-nipple
|
S/N - 1960268
S/N - 1960118
|
| 7. |
VOE11305566
|
[1] |
Reduction nipple
|
S/N - 1960268
S/N - 1960118
|
| 8. |
VOE15204780
|
[1] |
Hose assembly
|
S/N - 1960268
S/N - 1960118
|
| 8. |
VOE15209009
|
[1] |
Hose assembly
|
S/N 1960269 -
S/N 1960119 -
|
| 9. |
VOE11309087
|
[1] |
Hydraulic motor
|
11391023 S/N - 1960433
|
| 9. |
VOE15212372
|
[1] |
Hydraulic motor
|
11391023 S/N 1960434 -
|
| 10. |
VOE60113082
|
[4] |
Flange screw
|
|
