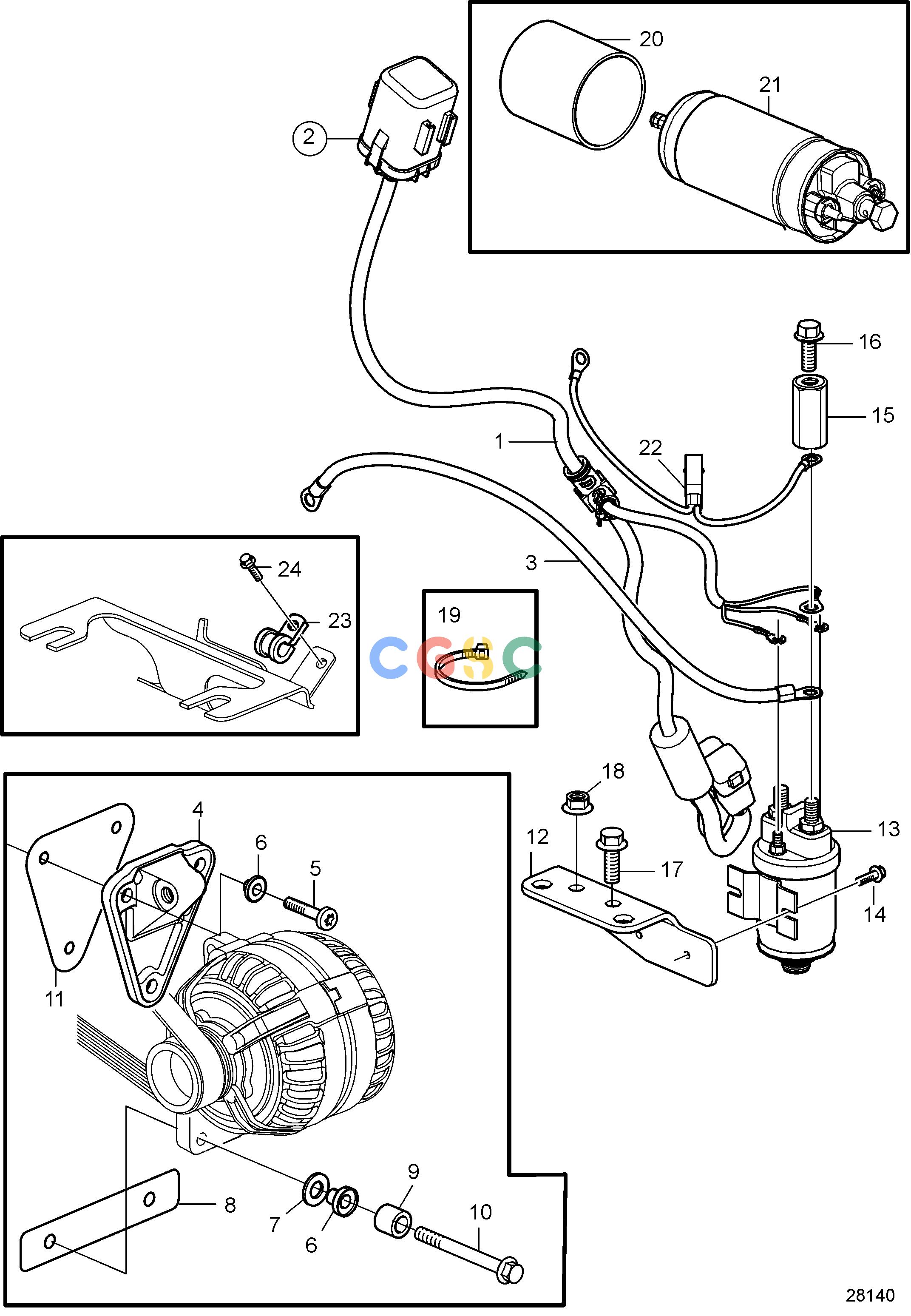

沃尔沃零件查询D3-110I-G; D3-140A-G; D3-140I-G; D3-150I-G; D3-170A-G; D3-170I-G; D3-200A-G; D3-200I-G; D3-220A-G; D3-220I-GElectrical System2 pole systemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
395 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22117514
|
[1] |
Wiring harness
|
|
| 2. |
21494263
|
[1] |
Relay box
|
|
| 3. |
22203111
|
[1] |
Wiring harness
|
|
| 4. |
22538986
|
[1] |
Bracket
|
|
| 5. |
973190
|
[3] |
Six point socket scr
|
M8x35mm
|
| 6. |
22539084
|
[5] |
Insulating bushing
|
|
| 7. |
955895
|
[2] |
Washer
|
M8x90mm
|
| 8. |
22496093
|
[1] |
Gasket
|
|
| 9. |
821539
|
[2] |
Spacer sleeve
|
|
| 10. |
984652
|
[2] |
Flange screw
|
|
| 11. |
22496091
|
[1] |
Gasket
|
|
| 12. |
22101934
|
[1] |
Bracket
|
|
| 13. |
872242
|
[1] |
Relay
|
|
| 14. |
948663
|
[2] |
Flange screw
|
|
| 15. |
21264221
|
[1] |
Spacer nut
|
|
| 16. |
947107
|
[1] |
Flange screw
|
|
| 17. |
946173
|
[1] |
Flange screw
|
|
| 18. |
983715
|
[1] |
Hexagon nut
|
|
| 19. |
948211
|
[1] |
Cable tie
|
|
| 20. |
22426555
|
[1] |
Insulation
|
|
| 21. |
21120406
|
[1] |
Feed pump
|
|
| 22. |
22396638
|
[1] |
Wiring harness
|
|
| 23. |
20799142
|
[1] |
Clamp
|
|
| 24. |
968476
|
[1] |
Flange screw
|
|
